The EG4130 Pro combines an energy meter, data logger, and a web server. This powerful combination lets you measure, store and retrieve (V, A, VAr, kWh, etc.) data directly from the device or from a remote location via the internet. You can view historical and live data for the lifetime of the hardware with the unit’s convenient user interface (UI). Users have access to real-time values, long-term reports, an interactive graphical interface, and many other tools.
This data logger operates in an indoor environment.
The EG4130 data logger supports the following measurements: AC Current, AC Voltage, Amps (A), Kilowatt Hours (kWh), Kilowatts (kW), Volt-Amp Reactive, Volt-Amp Reactive hour, Watt Hours (Wh) and Watts (W)
The country of origin for this product is the United States. To see the full specifications for this product, please see our product manual found under the documentation tab if available
Measurement | |

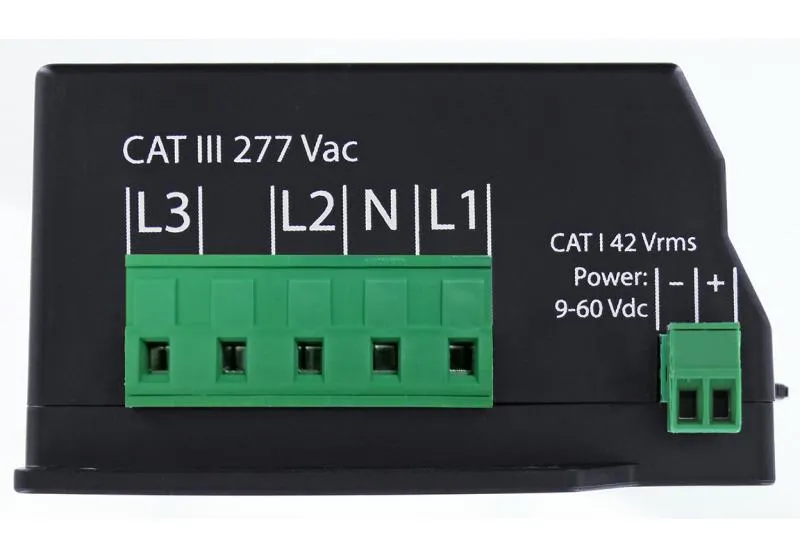

AC Voltage: | L1: 85-277 Vrms L2: 0-277 Vrms L3: 0-277 Vrms |
DC Voltage: | 42 Vrms Power: 9-60 Vdc Measurement: +/-60 Vdc |
Current: | 30 channels 5-6900A max per channel Fully isolated inputs |
Frequency: | 50 or 60 Hz |
Logging Values: | V, A, W, Wh, Hz, VA, VAr, THD, deg |
Power Draw: | 12W max, 2W typical |
Environmental | |
Op. Temperature: | -30 to 70 deg C (-22 to 158 F) |
Max Altitude: | 4000m (13,123ft) |
Max Humidity: | 80% up to 31 deg C |
Meas. Category: | Overvoltage Category III |
Location: | Open type indoor device |
Pollution Degree: | 2 |
Data Logger Capacity | |
Register Count: | 64 (data storage points) |
Granularity: (duration/avg) | 1 hour/1 second 1 year/1 minute 10 yrs/15 minute Device Lifetime/1 Day |
Safety and Regulatory | |
Safety: | IEC/UL 61010-1 Ed. 3.0 B:2010 |
CE: | IEC 61000-6-1 Ed. 3.0 B:2016 IEC 61000-6-3 Ed. 2.1 B:2011 |
FCC: | FCC Title 47 CFR Part 15-Subpart B Class B ICES-003 Information Technology Equipment Class B |
Communication | |
Homeplug AV: | Compatible with Homeplug AV- adapter within ~100ft. on same phase as L1 |

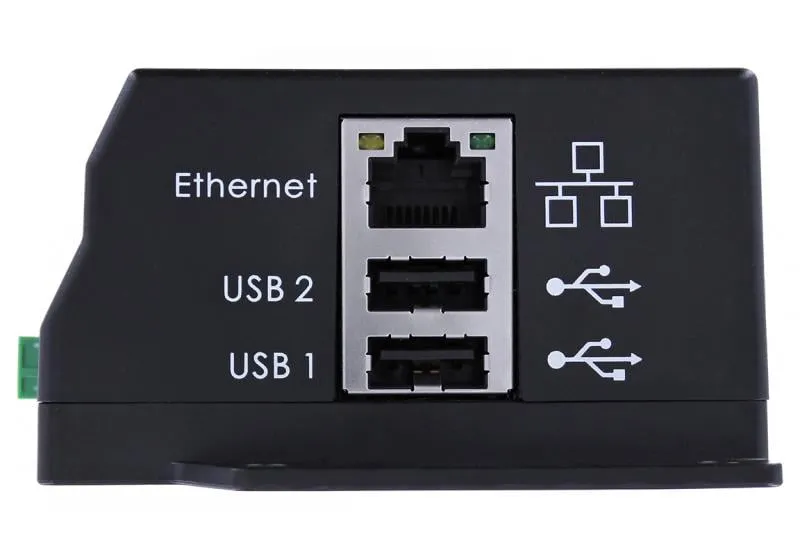

Ethernet: | IEEE 802.3 – LAN |
User Interface | |
Compatible Browsers: (Only up-to-date versions supported) | Google Chrome Firefox Safari Internet Explorer |
Enclosure | |
Material: | FRABS |
Dimensions: | 17 x 8 x 4.6cm |
(6.7 x 3.15 x 1.81in) | |
Weight: | 300g (0.66lbs) |
Warranty Standard: | 2 years |
