Deskripsi
● Two individual gates setting and alarming function.
● 32 detecting channels are available with separate detecting parameters and DAC (Distance Amplitude Correction) curves in every channel.
● Automatic formation of DAC curves, and 30 points’ data can be recorded infinitely, adjustable offset curves and gain correction functions are available.
●Three detecting modes(single-probe, dual crystal probe and transmission) with automatic calibration function
● Connected to PC via USB interface with advanced software for data analysis and management.
● Data and documents are managed with file allocation table (FAT)system, making the management of inspection data more convenient, reliant and faster

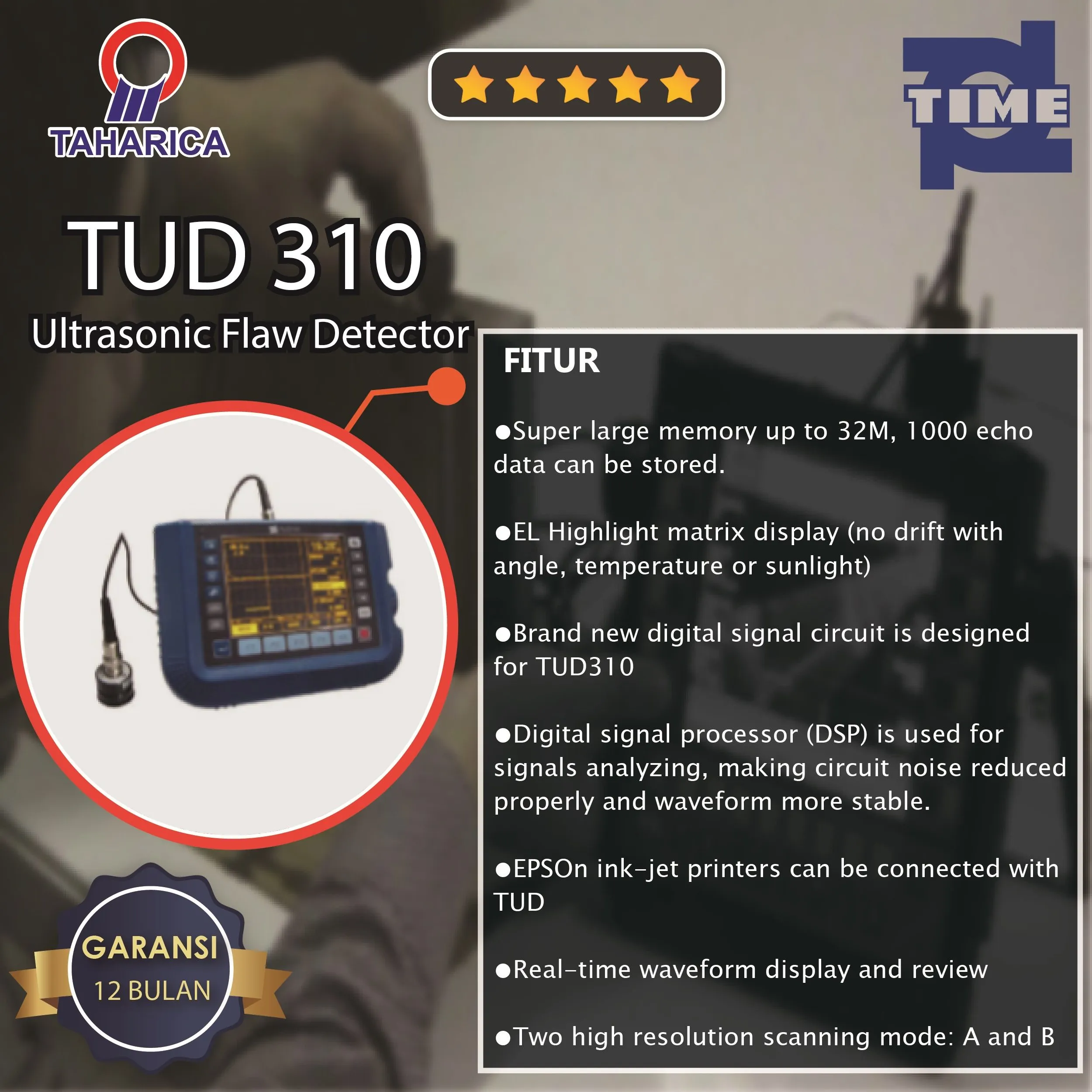

● Super large memory up to 32M, 1000 echo data can be stored.
● EL Highlight matrix display (no drift with angle, temperature or sunlight)
● Brand new digital signal circuit is designed for TUD310
● Digital signal processor (DSP) is used for signals analyzing, making circuit noise reduced properly and waveform more stable.
● EPSON ink-jet printers can be connected with TUD
● Real-time waveform display and review
Specification
Items | Description |
Scanning range | 2.5 mm ~9999 mm |
Scanning resolution | 0.1mm (2.5mm ~100mm) |
Gain range | 0dB ~110 dB |
D-delay | -20µs~+3400µs |
P-delay | 0µs~99.99µs，resolution 0.01µs |
Sound speed | 1000 m/s~9999m/s |
Bandwidth | 0.2MHz~15MHz |
Vertical linearity accuracy | ≤3% |
Horizontal linearity accuracy | ≤0.2% |
Dynamic range | ≥32dB |
Rectification | Positive half wave, negative wave, full wave, and RF |
Sensitivity leavings | ≥60dB |
Test mode | Pulse-echo, dual and through transmission |
Pulser | Spike excitation pulser |
Damping | 50ohms, 150ohms and 400ohms |
Reject | Linear, 0-80% of full screen, variable in steps of 1% |
Unit | Metric/inch |
Interface | RS232 / USB |
Printer | EPSON ink-jet printers |
AC requirements | 85-264V AC/1.0A,47-63Hz |
Temperature | -10℃~40℃ |
Humidity | 20%~90%RH |
Power supply | Li battery4×3.6V 4000mAh |
Charging time | 4~5hours |
Dimension (mm) | 243×173×70 |
Weight (g) | 1470 |
| Standard Delivery | Optional Accessory | |
| Main unit | 1 | Connecting cable |
| Power adaptor | 1 | Software for TUD310 |
| Neck strap | 1 | Various probes |
| Cable for probe | 2 | EPSON ink-jet printer |
| Straight probe(2.5MHz,Ø20) | 1 | |
| Angle probe(5MHz,8×9K2) | 1 | |
| Couplant | 1 | |
| Flash disk | 1 | |
| Screw driver | 1 | |
| TIME certificate | 1 | |
| Warranty card | 1 | |
| Instruction manual | 1 |
