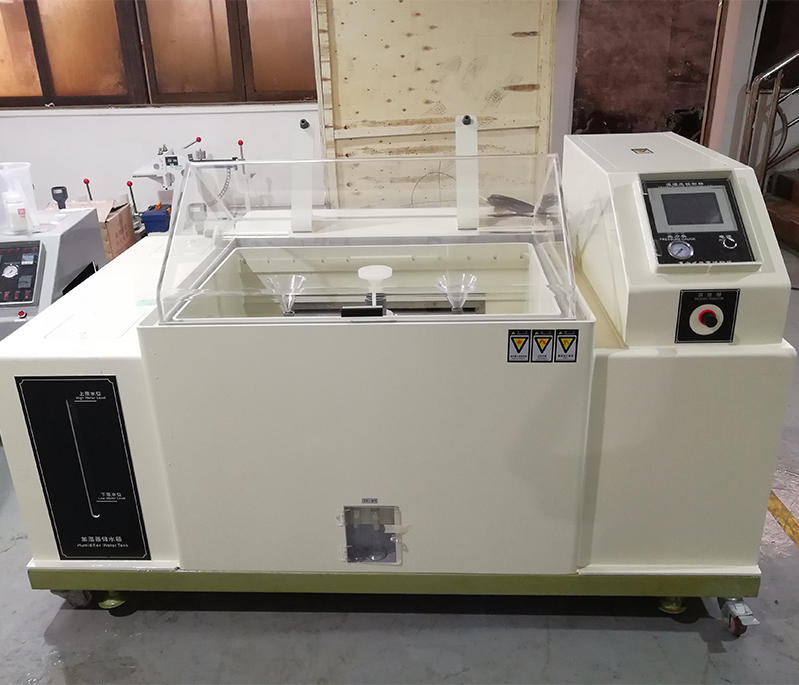

Alat Uji, Siklus Ruang Semprot Garam, Cycle Salt Spray Chamber Tester
Cycle Salt Spray Chamber dapat digunakan untuk menguji kinerja bahan, produk, dan pelapisnya yang tahan kabut garam. Seperti, suku cadang, komponen elektronik, bahan logam lapisan pelindung dan produk industri. Mereka juga dapat digunakan untuk mengevaluasi kualitas pelapis.
Cara Menggunakan
Cycle Salt Spray Chamber dapat melakukan beberapa tes, termasuk: Salt Fog, Heating and Cooling, Humidity, Drying. Tes dapat diprogram. Anda dapat mengatur prosedur pengujian sesuai dengan kebutuhan Anda.
Standard Parameters
| Model | HD-E808-160-1 |
| Internal size (L*W*H) | 1600*1000*600mm |
| External size (L*W*H) | 3000*1650*1700mm |
| Equipment material | Both inside & outside shell adopt P.V.C rigid plastic board |
| Temperature range | Ambient~60℃ (No humidity if temp. below +25℃) |
| Temperature fluctuation | ±2℃ |
| Humidity range | 30% – 98% |
| Temperature fluctuation | ±3%RH |
| Salt spray test | Concentration of salt solution: 5% Spray quantity: 1.0~2.0 ml / hr / 80cm2 PH value: 6.5~7.2 (at ambient temperature) |
| Spraying method | Continuous and Periodic spray type |
| Lab volume | 960L |
| Brine tank capacity | 40L |
| Multiple safety protection devices | Over pressure protection, over temperature protection, over load fuse protection |
| Air source | 2.5HP Air pump, pump capacity with 60L or above (provided by buyer) |
| Power supply source | Single-phase, 220V±10%, 50/60Hz |
The table parameters is for the company Standard Model parameters, we support customer customization parameters
Chamber Material
| Item | Specification |
| Internal chamber | High temperature resistant 8mm PVC, anti-corrosion and easy to clean |
| Chamber cover | High temperature resistant 10mm PVC |
| Saturated barrel | Imported 8mm PP impact resistance plate, high temperature and corrosion resistance, equipped with water level indicating device |
| Heating system | Titanium electric heater, corrosion resistance |
| Blower | Multi-blade blower |
| Water pump | Corrosion resistant pump |
| Solenoid valve | JPA series |
| Sample shelves | Test Angle: 15 ° – 30 °, adjustable |
| Viewing window | Double vacuum organic glass |
| Controller | PLC controller, touch screen |
| Water supply | Adopts automatic water charging system for long time operation. |
