● TIME®2130: Equipped with RS232 interface to connect TA230 printer and PC with optional software. 5PФ10/90° transducer for normal purpose and optional TSTU32 transducer for casting iron.

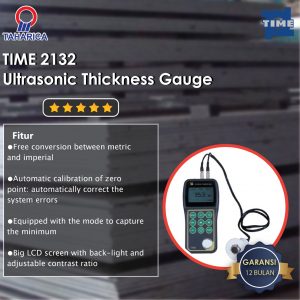

● TIME®2132: Anti-high-temperature reaching up to 300°C

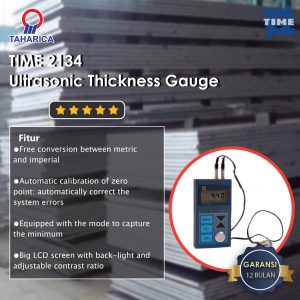

● TIME®2134: equipped with TSTU32 transducer for casting iron
Features
● Free conversion between metric and imperial
● Automatic calibration of zero point: automatically correct the system errors
● Gain adjustment, Low voltage indication and Automatic turn-off
● 500 test data and 5 sound velocity can be stored, delete and review
● Big LCD screen with back-light and adjustable contrast ratio
● Equipped with the mode to capture the minimum
● Two display modes: current thickness or minimum thickness
● Two point calibration for high accuracy
● Upper /lower limits pre-setting and sound alarm
● Resolution 0.001mm and 0.01mm selectable for your use
Spesifikasi
TIME®2130 | TIME®2132 | TIME®2134 | |
Measuring range | 0.75mm-300.00mm(steel) | 1.2mm-225.0mm (steel) | 1.2mm-300.00mm |
Measuring accuracy | ±(1%H+0.1)mm (H means the | ±(1%H+0.1)mm (H means the thickness of tested piece) | |
Lower limits of steel pipes | φ20mm x 3.0mm | φ20mm x 3.0mm | |
Display resolution | 0. 1mm/0.01mm or | 0. 1mm or 0.01inch | |
Data output | RS232 Output for printer or pc | ||
Sound velocity | 1000m/s~9999m/s | ||
Power supply | AA batteries (2pcs) 1.5V | ||
Battery life | 100 hours without backlight | ||
Unit scales | mm/inch | ||
Operating temperature | -10℃~ +60℃ | -10℃~ +300℃ | -10℃~ +60℃ |
Dimensions (mm) | 152 ×74 ×35 | ||
Weight (g) | 370 | ||
