Product FeaturesNote1
Dual Test Modes & Automatic Test with Manipulator
- Dual test modes including application torque test and removal torque test
- Innovative patented manipulator technique supports automatic gripping, opening and fastening, which minimizes the error caused by manual operations and improves the testing accuracy and repeatability
- Gripping force, fastening force and turning speed of the cap can be adjusted freely
- Automatic gripping manipulator with deviation less than 0.01Nm, much better than manual fastening
- Intelligent designs of overload protection, automatic zeroing and error alert for safe test operation
- Manual test or automatic test can be selected
High Testing Accuracy & Low Testing Lower Limit
- Specimens with torque value lower than 0.005Nm is testable. The testing resolution is as high as 0.0001Nm, providing high accuracy and good repeatability.
- The peak value can be maintained automatically, which ensures the recording of the accurate test results
- Automatic judgement of peak value meets the testing requirements for various specimens
- Components and parts are supplied by world well-known manufacturers, which guarantee the stable performance
- Imported pneumatic control system with ultra-long service life and ultra-low failure rate ensures the testing accuracy
New Patented Intelligent Touch Operating System
- Industrial grade touch screen, one-button operation, user-friendly interface, remote upgrade and maintenance
- Chinese and English languages can be selected
- Test curves are displayed in real time. Intelligent data statistics supports quick review of test results.
- Automatic data storage and power failure memory functions
- Historical data can be reviewed and printed easily
- Storage up to 1200 test records
- Test data is expressed in eight international units for reference and comparison
- Multi-level user privilege management, log in with password
- Micro-printer and USB data ports for data exporting and data transfer (optional)
- The instrument conforms to the requirements of GMP (optional)
- Labthink’s unique DataShiledTM System for data management and connecting with information system (optional)
Test StandardNote1
ASTM D2063, ASTM D3198, ASTM D3474, BB/T 0025, BB/T 0034, GB/T 17876
Applications
| Basic Applications |
|---|
|
|
| Extended Applications |
|
|
Technical SpecificationsNote2

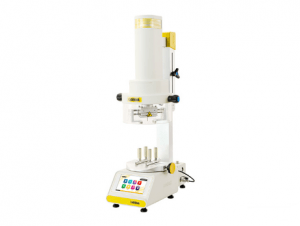

| Specifications | C612M Digital Torque Tester |
|---|---|
| Load Cell Capacity | 5 Nm (Standard) |
| 20 Nm (Optional) | |
| 40 Nm (Optional) | |
| Accuracy | Indicated Value ±0.5%（10%-100% of Load cell capacity） ±0.05%FS （0%-10% of Load cell capacity） |
| Resolution | 0.0001 Nm |
| Body Clamp Range | Φ5 mm ~ Φ170 mm |
| Cap Clamp Range | Φ10 mm ~ Φ80 mm |
| Bottle Height | 20 mm ~ 400 mm |
| Specimen Clamping and Turning Way | Pneumatic |
| Maximum Auto Removal / Application Torque | 2 Nm (customization available for other specs) |
| Gas Supply | Air (Not in supply scope) |
| Gas Supply Pressure | 0.7 Mpa (101.5psi) |
| Statistical Analysis Allowance | 0 ~ 999 |
| Instrument Dimension | 550 mm (L) x 365 mm (W) x 1150 mm (H) |
| Power Supply | 220VAC±10% 50Hz / 120VAC±10% 60Hz |
| Net Weight | 39 kg |
Configurations
- Standard Configurations
- Instrument, Gripping Post (4pcs), Gripping Block (1 pair), Calibration Kit (not include weight), Ф4mm PU Tubing (2m)
- Optional Parts
- Micro-printer, Professional Software, Air Compressor, GMP System, DataShieldTM Note3
- Note
- 1. The gas supply port of the instrument is Φ4 mm PU Tubing;
2. Customers need to prepare gas supply.
Note 1: The described test standard, applications and product features should be in line with Technical Specifications.
Note 2: The parameters in the table are measured by professional operators in Labthink laboratory under strictly controlled laboratory conditions.
Note 3: DataShieldTM provides safe and reliable data application support. Multiple Labthink instruments can share one single DataShieldTM system which can be configured as required.
