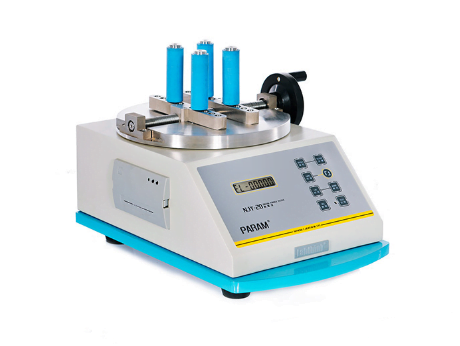

Digital Torque Tester NJY-20

Jual Alat Uji Tarik, Universitas Laboratorium Alat Uji Tarik, NJY-20 Digital Torque Tester dirancang untuk mengukur kekuatan terbuka dan kekuatan kunci tutup botol, tas cerat dan paket tabung fleksibel. Stabilitas dan presisi yang tinggi membuatnya menjadi kebutuhan untuk proses pembuatan. Kekuatan tutup botol yang terbuka dan terkunci adalah parameter produksi online dan offline yang penting. Mereka dapat mempengaruhi transportasi dan konsumsi produk.

Features

  • The instrument is controlled by a micro-computer with menu interface, PVC operation panel and large LCD display
  • 2 test modes for open force and lock force
  • Automatic retaining of peak value and recording the test results precisely
  • Standard testing units which is convenient for data reference and comparison
  • Intelligent designs of overload protection, automatic zeroing and error alert for safe test operation
  • Equipped with RS232 port and micro printer port which is convenient to the data transmission and PC connection
  • Supports LystemTM Lab Data Sharing System for uniform and systematic data management

Standards

NJY-20 Bottle Cap Torque Tester conforms to various national and international standards:
ASTM D2063, ASTM D3198, ASTM D3474, BB/T 0025, BB/T 0034, GB/T 17876

Applications

Basic Applications
  • Bottle Package
    Open and lock force test of the bottle caps for bottled packages for food, pharmaceuticals, e.g. beverage or tablet bottles
  • Flexible Tube Package
    Open and lock force test of flexible tube packages for food, pharmaceuticals and cosmetics, e.g. eye-drop, hand cream and shoe polish, etc.
Extended Applications
  • Screws
    Open and lock force test of the screws
  • Vacuum Flask and Vacuum Cup
    Open and lock force test of the caps of vacuum flasks and vacuum cups

Technical Specifications

SpecificationsNJY-20 Bottle Cap Torque Tester
Load Cell Capacity20 Nm (Standard)
40 Nm (Optional)
50 Nm (Optional)
Accuracy1% FS
Resolution0.001 Nm
Clamp RangeΦ5 mm ~ Φ170 mm (Diameter)
Statistical Analysis Allowance1 ~ 9
If used with professional software, there will be no quantity limitation. Furthermore multi-units and statistical data analysis will be available.
Instrument Dimension350 mm (L) x 240 mm (W) x 140 mm (H)
Power Supply220VAC 50Hz / 120VAC 60Hz
Net Weight19 kg

Configurations

Standard Configurations
Instrument and Micro Printer
Optional Parts
Professional Software and Communication Cable
