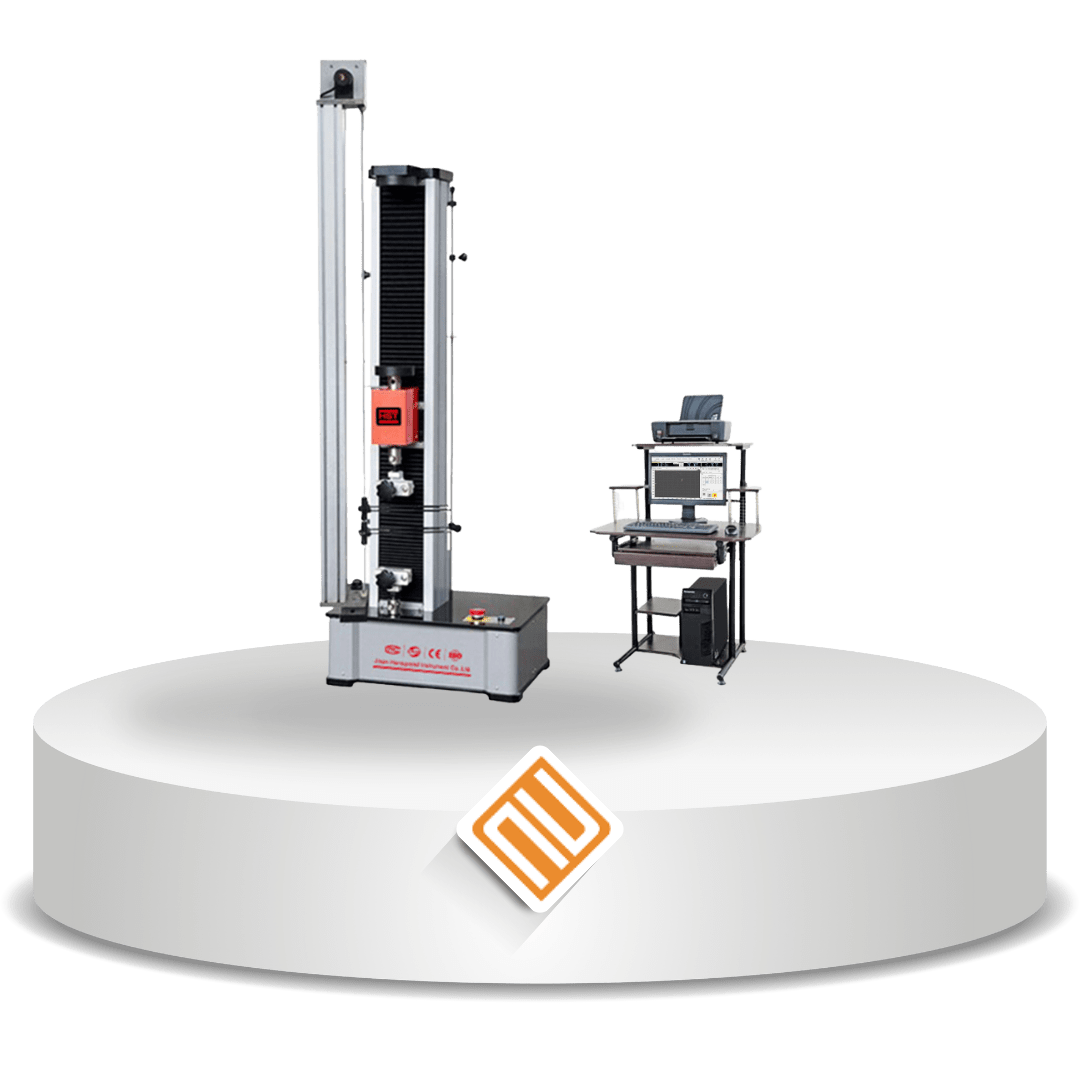

Fabric Tensile strength tester – Alat uji kekuatan tarik kain dapat digunakan untuk berbagai macam material untuk pengujian tarik, tekan, lentur, geser, dan siklus rendah. Cocok untuk pengujian logam, karet, plastik, pegas, tekstil, dan komponen. Alat ini banyak digunakan di industri terkait, penelitian dan pengembangan, lembaga pengujian, dan pusat pelatihan, dll.
| Fabric Tensile Strength Tester Specifications | |
|---|---|
| Model | WDW-01, 02, 03, 05, 1, 2, 3, 5 |
| Structure | Single column double spaces |
| Max. Load | 0.1, 0.2, 0.3, 0.5, 1, 2, 3, 5 kN |
| Material | All aluminum alloy surface spray painting shell |
| Load Accuracy | Class 0.5 |
| Load Range | 0.2% – 100% F·S |
| Load Resolution | 1 / 500,000 |
| Displacement Resolution | 0.01 mm |
| Test Speed | 0.05 – 500 mm/min (stepless arbitrary setting) |
| Speed Accuracy | Within ±1% of set speed |
| Tensile Space | 600 mm (customizable) |
| Compression Space | 600 mm (customizable) |
| Test Width | 100 mm |
| Beam Travel Distance | 772 mm |
| Power Supply | AC 220V ±10%, 50Hz / 60Hz (customizable) |
