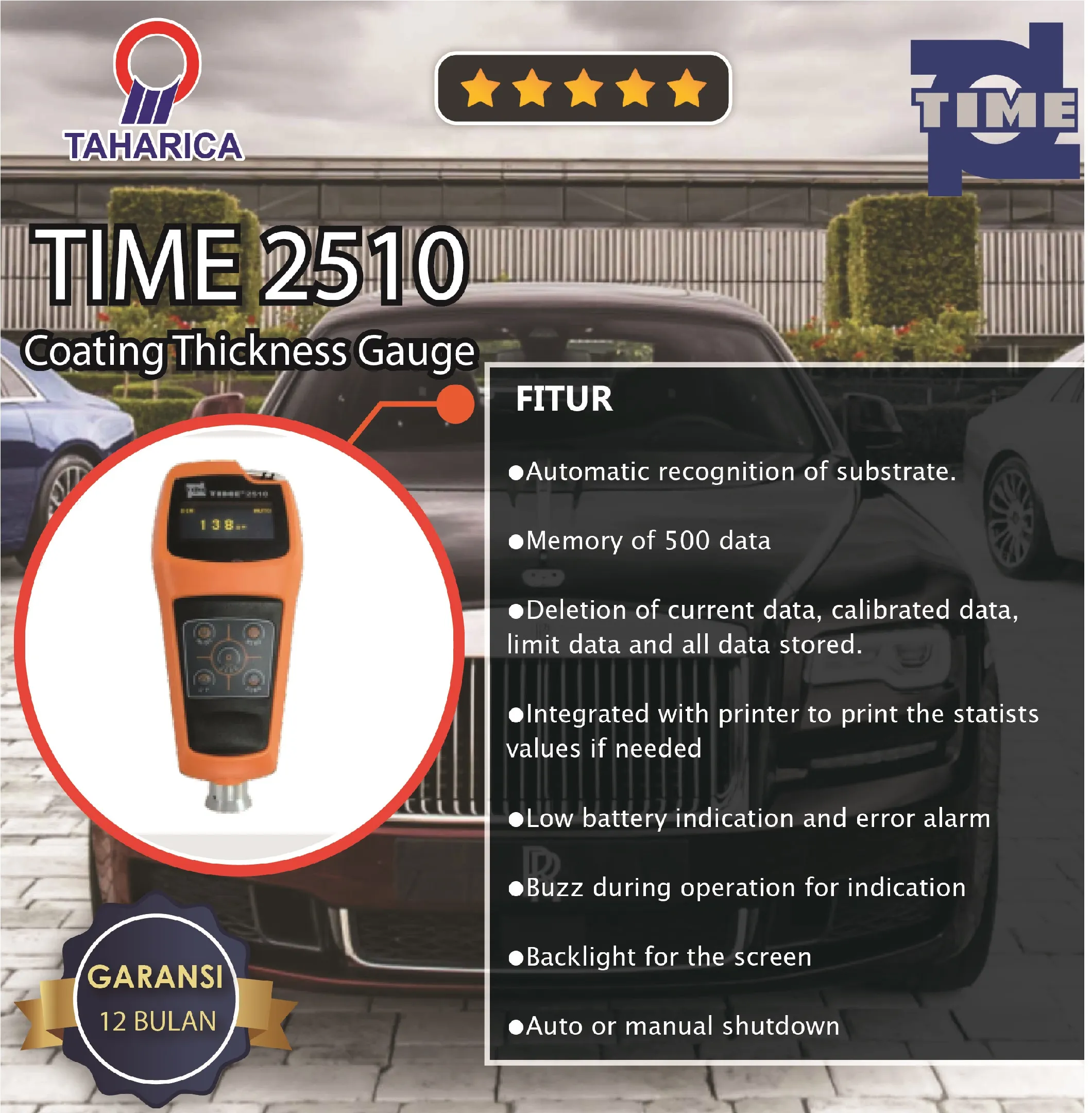

Deskripsi
- Two principle of operation are adapted: magnetic induction (ferrous) and eddy current (nonferrous) to take non-destructive measurements
- Zero point calibration and two-point calibration to correct the system error of the probe
- Features two working modes: DIRECT and BATCH & two measuring ways: CONTINUE and SINGLE
- Statistics include the mean, maximum, minimum, test numbers and standard deviation.
- Automatic recognition of substrate.
- Memory of 500 data
- Deletion of current data, calibrated data, limit data and all data stored.
- Integrated with printer to print the statists values if needed
- Low battery indication and error alarm
- Buzz during operation for indication
- Backlight for the screen
- Auto or manual shutdown
Technical Specifications
|
Probe types |
F |
N |
|
|
Working principle |
Magnetic induction |
Eddy current |
|
|
Measuring range |
0-1250 μm |
0-1250 μm, 0-40μm (for chrome plate on copper) |
|
|
Minimum resolution |
0.1μm |
||
|
Tolerance |
Zero point |
±(3%H+1) μm |
±(3%H+1.5) μm |
|
H means the thickness of tested piece ? |
|||
|
Two points |
±{(1-3)%H+1}μm |
±{(1-3)%H+1.5}μm |
|
|
H means the thickness of tested piece ? |
|||
|
Measuring |
Min. curvature |
Convexity 1.5 mm |
Convexity 3 mm |
|
Min. area |
Φ7 mm |
Φ5 mm |
|
|
Critical thickness |
0.5 mm |
0.3 mm |
|
|
Operating environment |
Temperature: 0?- 40? |
||
|
Humidity: 20%-90% |
|||
|
No strong magnetic field |
|||
|
Power |
2 pcs AAA 1.5 V battery |
||
|
Dimension |
110 x 50 x 23 (mm) |
||
|
Weight |
100 g |
||
| Standard Delivery | Optional Accessory | |
| Main unit | 1 | Printer TA230 |
| Substrate | 2 | Connecting cable |
| Calibration foil | 1 | Dataview |
| AAA 1.5V battery | 2 | |
| TIME certificate | 1 | |
| Warranty card | 1 | |
| Instruction manual | 1 |
