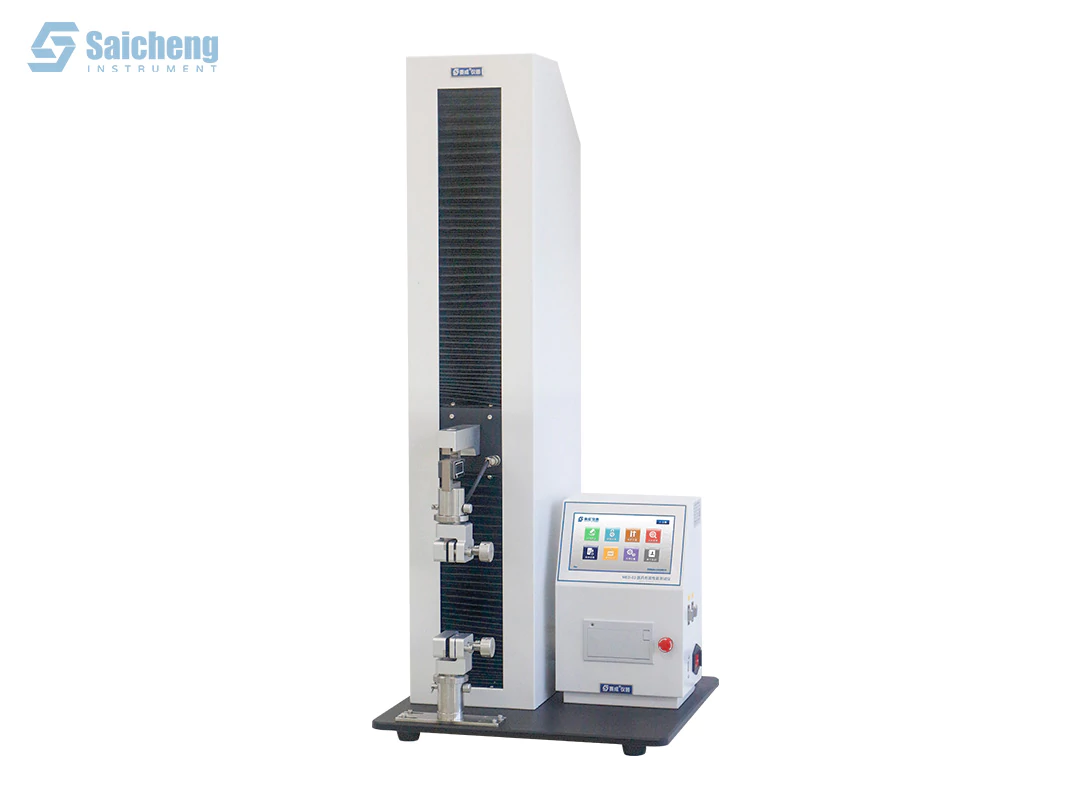

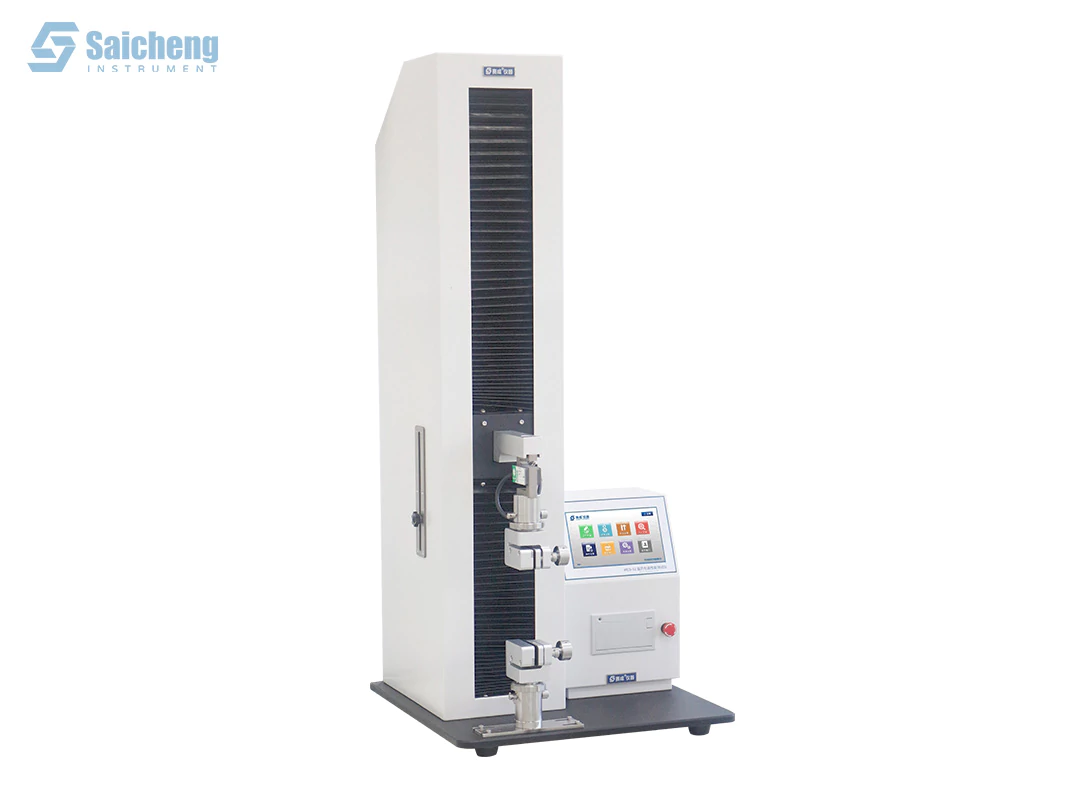

XLW-L Intelligent Tensile Testing Machine cocok untuk menguji laju perpanjangan, gaya kupas, laju deformasi, kekuatan penyegelan panas, gaya buka, ketahanan sobek, ketahanan tusukan, gaya penggulungan kecepatan rendah dari film plastik, film komposit, pita perekat, plester medis, film pelindung, kertas pelepas, foil, kain non-woven, karet, kertas, dan produk lainnya.
Instrumen ini dilengkapi dengan lebih dari 100 penjepit untuk menguji lebih dari 1000 material. Kustomisasi juga tersedia untuk pengujian material khusus. Contoh aplikasi instrumen:
| Tensile Property
Tensile Strength and Elongation Rate Breaking Force Tear Resistance |
Heat Seal Strength Test
90 Degree Peel Test 180 Degree Peel Test |
| Puncture Test of Hypodermic Needles in Artificial Skin
Puncture Test of Films Puncture Test of Infusion Bags Puncture/Pullout Test of Flexible Rubber Closures Opening Resistance Test of Combined Covers Tear Test of ZD-Type Caps Opening Force Test of Oral Liquid Caps Puncture/Pullout Test of Oral Liquid Caps 90 Degree Pullout Test of Infusion Bag Caps Pullout Test of Infusion Bag Caps 23 Degree Pullout Test of Bottle Caps Puncture/Pullout Test of Bottle Caps or Rubber Closures 90 Degree Peel Test of Adhesive Tapes Tear Resistance Test of Adhesive Binding Books 90 Degree Peel Test of Water-soluble Plasters Tear Resistance Test of Adhesives Adhesive Strength Test (Soft) Adhesive Strength Test (Hard) Peel Test of Flexible Tube Caps |
Removal Force of Pipes and Pipe Joints
Pullout Test of Cosmetic Brush Hair Pullout Test of Tooth Brush Hair Tensile Strength of Ropes at Break Opening Force Test of Jelly Cups and Yogurt Cups Peel Test of Cup Films Pullout Test of Rubber Stoppers 45 Degree Peel Test of Bottle Membranes Tensile Strength of Sealing Bags Peel Test of Magnetic Cores 90 Degree Peel Test of Magnetic Cards Tear Resistance of Heat Sealing Films Separating Force of Protection Films Peel Test of Release Paper Tear Test Using Trouser Method Unwrapping Force of Adhesive Tapes Compressive Resistance of Plastic Bottles 20 Degree Peel Test 135 Degree Peel Test of Plugs Peeling Grips of Floating Rollers Eccentric Grips Japanese Sample Grips British Sample Grips |
| Items | Specifications |
|---|---|
| Test Range | 500 N (Standard) 50 N, 100 N, 250 N, 1 kN, 1.5 kN, 2 kN (Optional) |
| Accuracy | 0.5% FS |
| Resolution | 0.0001 N |
| Accuracy of Displacement | 0.5% FS |
| Resolution of Displacement | 0.001 mm |
| Test Speed | 0 ~ 500 mm/min (Adjustable) |
| Sample Width | 30 mm (Standard) 50 mm (Optional) |
| Clamping Way | Manual (Pneumatic clamps can be customized) |
| Stroke | 600 mm |
| Power Supply | AC 100–240V 50/60Hz (Can be changed to local requirement) |
| Instrument Dimension | 450 mm (W) × 450 mm (D) × 1000 mm (H) |
| Net Weight | 55 kg |
Konfigurasi Standar: Instrumen, Printer Mikro, Perlengkapan Universal
Komponen Opsional: Perangkat Lunak Profesional, Kabel Komunikasi 485, Rol Standar, Pelat Uji, Pemotong Sampel, Perlengkapan Gaya Putus, Perlengkapan Gaya Buka untuk Penutup Modular, Perlengkapan Tegangan, Perlengkapan Uji Penetrasi Jarum, Perlengkapan Uji Kinerja Geser, Perlengkapan Uji Kekencangan Bodi, Perlengkapan Uji Kekuatan Ikatan, Perlengkapan Gaya Penghubung, Perlengkapan Gaya Tarik, Perlengkapan Rol Apung, Perangkat Penggulung Kecepatan Rendah, dll.
