Levelogger® Junior Edge

  • Level air & suhu yang efektif datalogger
  • Akurasi 0,1% FS
  • Peningkatan memori sebesar 40.000
  • Baterai 5 tahun
  • Garansi 1 tahun
  • Kompatibel dengan Perangkat Lunak Levelogger Series, aksesori, dan Telemetri

Untuk proyek-proyek penting dengan anggaran yang ketat, Levelogger Junior Edge menyediakan solusi hemat biaya untuk pengukuran ketinggian air dan suhu yang berkelanjutan. Mudah diprogram dengan perangkat lunak yang mudah digunakan, dan mudah digunakan dengan Kabel Baca Langsung atau kabel wireline / Kevlar dan tutup sumur pengunci Levelogger. Ini fitur sensor tekanan Hastelloy, baterai yang berlangsung 5 tahun, dan memori untuk 40.000 set pembacaan. Akurasi adalah 0,1% FS dengan kalibrasi seumur hidup. Levelogger Junior Edge kompatibel dengan SDI-12, seperti juga akurasi Levelogger Edge yang lebih tinggi.


The Levelogger Junior Edge provides an inexpensive alternative for measuring groundwater and surface water levels and temperature. The Levelogger Junior Edge combines a pressure sensor, temperature detector, a datalogger, and 5-year battery (based on a 1-minute sampling rate) in one compact 7/8″ x 5.6″ (22 mm x 142 mm) stainless steel housing.

The Levelogger Junior Edge records absolute pressure using the same durable Hastelloy pressure sensor as the Levelogger Edge. The Hastelloy® sensor has excellent performance in harsh environments with better temperature compensation and thermal response time, and can withstand 2 times overpressure without permanent damage.

The Levelogger Junior Edge features FRAM memory, with a capacity of 40,000 sets of temperature and water level data points. Readings are linear at a user-defined interval between 0.5 second to 99 hours. Accuracy is 0.1% FS, with lifetime factory calibration.

If greater accuracy, more sampling options, or wider depth ranges are required, the Solinst Levelogger Edge has the functionality to suit your application (see Model 3001 Levelogger Edge Data Sheet). For conductivity datalogging, Solinst also offers the LTC Levelogger Edge (see Model 3001 LTC Levelogger Edge Data Sheet).


Level Sensor: Piezoresistive Silicon with Hastelloy Sensor
Ranges: 5,10 m
Accuracy: ± 0.1% FS
Resolution: 0.02% FS to 0.01% FS
Units of Measure: cm, m, ft, psi, kPa, bar, (ºC, ºF)
Normalization: Automatic Temp Compensation
Temp Compensation Range: 0ºC to 40ºC
Temperature Sensor: Platinum Resistance Temperature Detector (RTD)
Accuracy: ± 0.1ºC
Resolution: 0.1ºC
Battery Life: 5 Years (based on 1 reading/minute)
Operating Temperature: – 20ºC to 80ºC
Clock Accuracy: ± 1 minute/year (- 20ºC to 80ºC)
Memory: FRAM
Maximum Readings: 40,000 sets of readings
Communication: Optical Infrared to USB, RS232, or SDI-12
Size: 7/8″ x 5.6″ (22 mm x 142 mm)
Weight: 4.2 oz. (119 grams)
Wetted Materials: 316 Stainless Steel, Delrin®, Viton®, Hastelloy
Sampling Mode: Linear, Real Time View, Future Start
Measurement Rates: 0.5 sec to 99 hours
Barometric Compensation: Data Wizard and Barologger Edge


LT Models Full Scale (FS) Accuracy Resolution
M5 5 m (16.4 ft.) ± 0.6 cm, 0.020 ft. 0.02% FS
M10 10 m (32.8 ft.) ± 1.0 cm, 0.032 ft. 0.01% FS



  • Low cost
  • Accuracy of 0.1% FS
  • Memory for 40,000 data points
  • Robust Hastelloy pressure sensor
  • Basic and advanced data compensation options

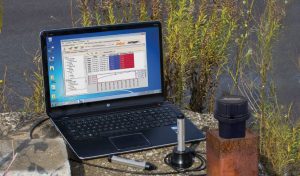

Programming the Levelogger Junior Edge is the same as with the Levelogger Edge. An Optical Reader or PC Interface Cable connects the Levelogger to a laptop or desktop PC. The intuitive Levelogger Software automatically detects the type of Levelogger that is connected. Programming, downloading, data management and export are intuitive tasks. The Real Time View option allows immediate viewing of live water level and temperature readings, independent of the scheduled programming intervals.

The Levelogger Junior Edge outputs temperature and temperature compensated water level readings. Using the Data Wizard in the Levelogger Software, you can barometrically compensation multiple Levelogger Junior Edge files simultaneously, with just one Barologger Edge file.

The Levelogger Junior Edge is compatible with Levelogger Series accessories, including the Solinst Levelogger App and Interface, the DataGrabber data transfer device, SDI-12 Interface Cable, and Solinst Telemetry Systems.

These compact dataloggers are straightforward to deploy. Installation can be with direct read cables, by stainless steel wireline or Kevlar® cord suspension, with the option of using Solinst 2″ Locking Well Caps.



  • Monitoring water levels in wells and surface water
  • Pump and slug tests
  • Reservoir and stormwater runoff management
  • Watershed and drainage basin monitoring
  • Stream gauging, lake and wetland monitoring
  • Tank level measurement


Model 3001 solinst levelogger edge water level dataloggers solinst levelogger junior edge water level dataloggers
Levelogger Edge Levelogger Junior Edge
Warranty 3 Years 1 Years
Pressure Transducer Piezoresistive Silicon with Hastelloy Sensor Piezoresistive Silicon with Hastelloy Sensor
Calibrated Ranges 5, 10, 20, 30, 100, 200 m, Atm. Barologger 5, 10 m
Accuracy ± 0.05% FS (Barologger Edge ±0.05 kPa) ± 0.1% FS
Resolution 0.002% FS to 0.0006% FS 0.02% FS to 0.01% FS
Normalization Automatic Temperature Compensation Automatic Temperature Compensation
Calibration Factory – Lifetime calibration Factory – Lifetime calibration
Response Time (90% Thermal Δ) 1 minute/10ºC change 1 minute/1ºC change
Temp Comp Range 0 to +50°C (Barologger Edge -10 to +50ºC) 0 to +40°C
Over-pressure Range 2 X 2 X
Temperature Sensor Platinum Resistance Temperature Detector (RTD) Platinum Resistance Temperature Detector (RTD)
Temperature Accuracy ± 0.05°C ± 0.1°C
Temperature Resolution 0.003°C 0.1°C
Operating Temp Range -20 to +80°C -20 to +80°C
Clock Accuracy ± 1 minute / year (-20ºC – +80ºC) ± 1 minute / year (-20ºC – +80ºC)
Battery Life 10 Years (based on 1 reading/min) 5 Years (based on 1 reading/min)
Size 7/8″ x 6.25″ (22 mm x 159 mm) 7/8″ x 5.6″ (22 mm x 142 mm)
Weight 4.6 oz. (129 grams) 4.2 oz. (119 grams)
Memory 40,000 readings in FRAM memory, or up to 120,000 readings using data compression option 40,000 readings in FRAM memory, no data compression option
Communication Speed 9600 bps, 38,400 bps with HS USB Optical Reader 9600 bps
Com Interface Optical infra-red: USB, RS232, SDI-12 Optical infra-red: USB, RS232, SDI-12
Memory Modes Continuous or Slate Continuous or Slate
Logging Rates 0.125 sec to 99 hours 0.5 sec to 99 hours
Logging Modes Linear, Event & User-Selectable Schedules with Repeat Mode, Future Start, Future Stop, Real Time View Linear, Real Time View, Future Start
Barometric Compensation Data Wizard and Barologger Edge Data Wizard and Barologger Edge
Corrosion Resistance Titanium based PVD coating and Hastelloy Sensor 316 L Stainless Steel and Hastelloy Sensor
Other Wetted Materials Delrin, Viton, Hastelloy, 316L Stainless Steel Delrin, Viton, Hastelloy, 316L Stainless Steel
Direct Read Capability Yes Yes


Solinst Levelogger App & Levelogger App Interface

A smart alternative for programming, data collection, viewing and sharing, is the Levelogger App Interface that uses Bluetooth® wireless technology to connect all Levelogger Series products to your smart device running the Solinst Levelogger App (see Model 3001 Solinst Levelogger App & Interface data sheets).
