Micro Double Valve Pump

Ideal untuk Sistem Multilevel CMT dan aplikasi sempit, aliran rendah lainnya
Desain diameter 3/8 “yang fleksibel pas hampir di mana saja
Mudah dipasang dan didedikasikan untuk pemantauan air

Micro Double Valve Pump memiliki desain yang sangat kecil dan fleksibel. Ini adalah pompa pneumatik yang menggunakan tabung PTFE koaksial untuk memberikan sampel berkualitas tinggi. Pada diameter 3/8 “(10 mm), cukup kecil untuk muat dalam tubing ID 1/2” (13 mm) seperti pada tabung terbuka Waterloo Multilevel System 5/8 “, serta saluran dari Model Solinst 403 Sistem Multilevel CMT. Ideal untuk pemantauan air tanah aliran rendah dalam aplikasi yang sempit.

Deskripsi

  • Ideal for CMT Multilevel System and other narrow, low flow applications
  • Flexible 3/8″ diameter design fits almost anywhere
  • Easy to install and dedicate for water monitoring

The Micro Double Valve Pump has a remarkably small and flexible design. It is a pneumatic pump that uses coaxial PTFE tubing to give high quality samples. At 3/8″ (10 mm) diameter, it is small enough to fit in 1/2″ (13 mm) ID tubing such as in Waterloo Multilevel System 5/8″ open tubes, as well as channels of the Solinst Model 403 CMT Multilevel Systems. Ideal for low flow groundwater monitoring in narrow applications.

Model 408M Micro Double Valve Pump

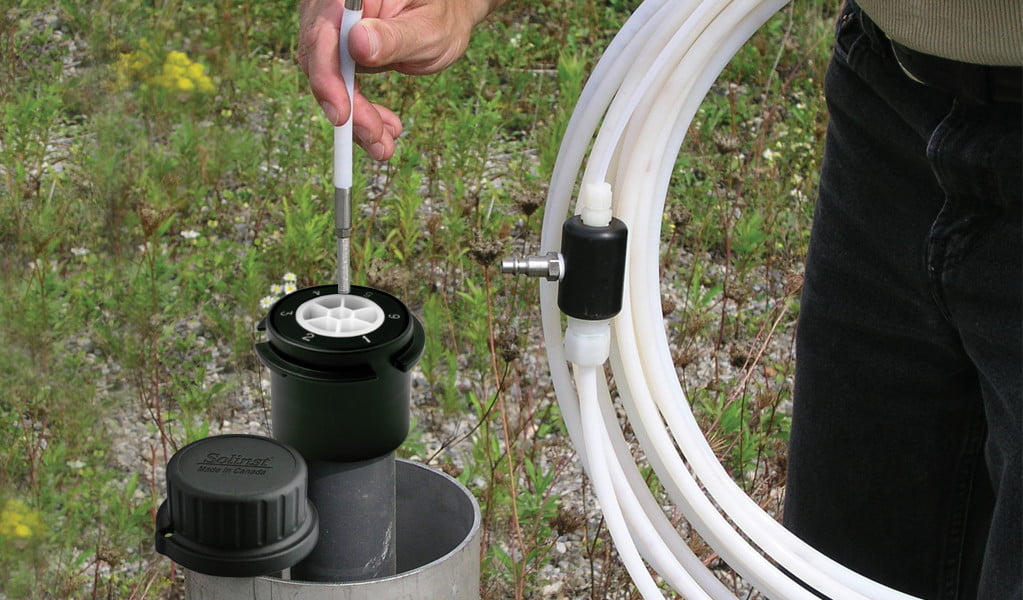

The Micro Double Valve Pump (Micro DVP) has a remarkably small and flexible design. As a positive displacement pneumatic pump, it uses coaxial PTFE tubing to give high quality samples. It is small enough to fit in 1/2″ (13 mm) tubing and all channels of the Solinst Model 403 CMT Systems, as its diameter is only 3/8″ (10 mm). The unique combination of flexibility and size make the pump easy to transport and install in a variety of applications.

solinst micro double valve pumps pnuematic pumps low flow pumps low flow sampling pumps PTFE pumps PTFE sampling pumps formation water sampling low flow monitoring groundwater samplers for narrow applications image

The Micro Double Valve Pump (Micro DVP) has a remarkably small and flexible design. As a positive displacement pneumatic pump, it uses coaxial PTFE tubing to give high quality samples. It is small enough to fit in 1/2″ (13 mm) tubing and all channels of the Solinst Model 403 CMT Systems, as its diameter is only 3/8″ (10 mm). The unique combination of flexibility and size make the pump easy to transport and install in a variety of applications.



solinst micro double valve pumps pnuematic pumps low flow pumps low flow sampling pumps PTFE pumps PTFE sampling pumps formation water sampling low flow monitoring groundwater samplers for narrow applications image

Model 464 Electronic Control Unit

solinst micro double valve pumps pnuematic pumps low flow pumps low flow sampling pumps PTFE pumps PTFE sampling pumps formation water sampling low flow monitoring groundwater samplers for narrow applications image

Pump Manifold with Quick-Connect for Drive Air
and PTFE Sample Tube

The Micro Double Valve Pump (Micro DVP) has a remarkably small and flexible design. As a positive displacement pneumatic pump, it uses coaxial PTFE tubing to give high quality samples. It is small enough to fit in 1/2″ (13 mm) tubing and all channels of the Solinst Model 403 CMT Systems, as its diameter is only 3/8″ (10 mm). The unique combination of flexibility and size make the pump easy to transport and install in a variety of applications.

The Micro DVP is ideal for low flow sampling and narrow down-hole applications. Flow rates of 20 to 150 ml/min, are possible within the narrow applications. The Micro DVP is durable and easy to operate using the pre-sets and custom sampling capabilities built into the Solinst Model 464 Electronic Control Unit (see Model 464 Data Sheet).



Design & Construction

The Micro DVP uses coaxial PTFE tubing in lengths of 90 ft, 140 ft, and 240 ft. The pump body and filter assembly is 6″ long x 3/8″ diameter (150 mm x 10 mm). It is constructed of coaxial PTFE tubing with stainless steel fittings and a sintered 316 stainless steel 50 micron filter. Filters are easily cleaned and replaced. A manifold at the top end of the pump has a 3/16″ (5 mm) PTFE sample tube and a quick-connect fitting for easy attachment to a Control Unit. A multi-purge sampling head is also available for use with the CMT System.

Operation

Formation water enters through the filter under hydrostatic pressure into both the inner PTFE tube and the annulus of the coaxial tubes. Drive gas/air is cycled down the annular space between the two tubes to close the lower check valve and push the water up the inner sample tube. The pump is then vented to allow new formation water to enter both tubes under hydrostatic pressure. Air/gas pressures are carefully controlled at all times to ensure that the air/water interface never enters the body of the pump, resulting in high quality samples. Repeating the pressure/vent cycle brings the sample to the surface at a controlled rate. The Micro DVP operates with 2 ft (0.6 m) or more head of water above the intake.



Applications

Groundwater sampling in:

  • CMT and Waterloo Multilevel Systems
  • Direct-Push/Drive-Points
  • Low flow monitoring in narrow diameters

Advantages

  • Only 3/8” (10 mm) in diameter
  • Flexible PTFE, goes almost anywhere
  • Inexpensive and readily dedicated
solinst 408m micro double valve pumps groundwater samplers flexible groundwater samplers groundwater sampling multilevel systems groundwater sampling drive points groundwater sampling well points narrow diameter groundwater samplers imagev
