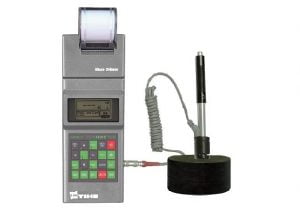

Portable Hardness Tester TIME®5302

As a portable rebound hardness tester, TIME®5302 (TH140) can accurately perform standard hardness testing for all metallic materials. Moreover, it can work with optional dataview software for data analysis on PC.

Deskripsi

As a portable rebound hardness tester, TIME®5302 (TH140) can accurately perform standard hardness testing for all metallic materials. Moreover, it can work with optional dataview software for data analysis on PC.
Features

● Simple menu, easy and convenient to use.

● Conversion of common hardness scales (HL, HV, HB, HRC, HRB, HRA and HS) & conversion to tensile strength.

● 7 types of optional impact devices with auto recognition. Standard impact device D included.

● Matrix LCD display with backlight for convenient use in darkness.

● Memory of 48-350 groups of data.

● Upper /Lower limits pre-setting and sound alarm.

● Dataview software as optional accessory

● RS232 connector meets more needs like storage and further analysis.

● Indication for charge and easy change for rechargeable battery.

● Removable printer included and test values can be printed directly.

Specification

Hardness scale

HL, HB, HRA, HRB, HRC, HV, HS

Memory

group (impact times:32-1)

Measuring range

(170-960)HLD (17.9-69.5)HRC

Tolerance

±6HLD(when HLD=760±30)

Measuring direction

360°

Tensile strength U.T.S range

374~2652MPa

Standard impact device

D

Optional impact device

DC/D+15/G/C/DL

Min. Radius of workpiece (convex/concave)

Rmin=50mm (with special support ring Rmin=10mm)

Max. workpiece hardness

DC/DL

D+15

C

G

940HV

940HV

1000HV

650HB

Min. Workpiece weight
Measure directly
Need support firmly
Need coupling tightly

>5kg

>5kg

>1.5kg

>15kg

2~5kg

2~5kg

0.5~1.5kg

5~15kg

0.05~2kg

0.05~2kg

0.02~0.5kg

0.5~5kg

Min. Workpiece thickness

5mm

5mm

1mm

10mm

Min. thickness of hardened layers

≥0.8mm

≥0.8mm

≥0.2mm

≥1.2mm

Power

Rechargeable NiMH battery, 5×1.2V 600mAh

Continuous working time

About 50h (without printing and backlight)

Charging time

2-3.5 hour

Operating temperature

0℃~40℃

Humidity

90%

Dimensions (mm)

268×86×50

Weight (g)

530( including impact device and printer)



Standard Delivery   Optional Accessory
Main unit 1 Printing paper
Impact device type D 1 Special impact devices
Test block HLD 1 Support rings
Charger 1 Dataview software
Cleaning brush 1
Table support for main unit 1
Connecting cable 1
TIME certificate 1
Warranty card 1
Instruction manual 1
