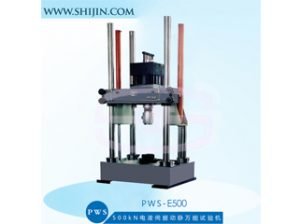

PWS-E500 electro-hydraulic servo static and dynamic universal testing machine

PWS series electro-hydraulic servo static and dynamic universal testing machine is a series of new products developed by our company. This series of products is easy to use, with high control precision and good reliability. It is widely used in tensile and compression of materials and components, low cycle, high cycle, crack propagation, fracture mechanics and various other dynamic and static mechanical properties tests. High and low temperature tests can be carried out with high and low temperature devices.



PWS series electro-hydraulic servo static and dynamic universal testing machine mainframe, constant voltage servo pump station and servo controller are designed and manufactured by our company. The servo controller can also be imported according to the user’s test needs. It has low end, middle end and high end. A variety of testing machines are available. Each controller is equipped with basic test software, and a variety of functional test software are available to meet the test requirements of different users.



The testing machine is a fatigue testing equipment widely used in the world, and is widely used in the testing fields of automobiles, ships, aerospace, aviation, military, education, scientific research institutes and the like.

Deskripsi

Spesification

model PWS-E10(15) PWS-E25 PWS-E50 PWS-E100 PWS-E250 PWS-E500 PWS-E1000 PWS-E2500
Maximum test force (KN) Static 10(15) 25 50 100 250 500 1000 2500
dynamic ±10(15) ±25 ±50 ±100 ±250 ±500 ±1000 ±2500
Measurement accuracy Test force Better than ±1% of the indication (precise grade ±0.5% )
Displacement Better than ±1% FS of the indication (precision ±0.5%FS )
Deformation Better than ±1% of the indication (precise grade ±0.5% )
Frequency range (HZ ) 0.001-75 ( depending on the control system)
Frame form Double column Double column / four column Four columns
Amplitude (mm ) ±75 ±75 ±75 ±75 ±75 ±75 ±75 ±75
Column distance (mm ) 430 430 530 530 635 850× 500 930 × 590 1200 × 700
Test space (mm ) 600 600 750 750 1200 1500 1500 1500
