RX3000 4-channel Analog Module RXMOD-A1

Jual Data Logger energi | Distributor Data Logger Hobo di Indonesia | Distributor Weather Station ( alat ukur cuaca )

The optional analog module has four analog inputs that support excitation power, scaling, and statistics measurements. These four, single-ended sensor inputs are configured through HOBOlink. A HOBO RX3000 is required for this product.

Highlighted Features

15-bit resolution and high accuracy
Each module can have its own logging rate
Input ranges up to 33V

What measurements does this accessory support?

The RXMOD-A1 accessory supports the following measurements: 4-20mA and DC Voltage

To see the full specifications for this product, please see our product manual found under the documentation tab if available

Input Channels	Four, single-ended, in addition to smart sensor data channels
Measurement Range and Accuracy	0–25.6 mA DC, ±5 µA ± 0.15% of reading 0–2.5 V DC, ±0.25 mV ±0.2% of reading 0–5 V DC, ±0.25 mV ±0.2% of reading 0–10 V DC, ±0.3 mV ±0.2% of reading 0–20 V DC, ±0.6 mV ±0.2% of reading 0–33 V DC, ±1.20 mV ±0.2% of reading
Resolution	15 bits

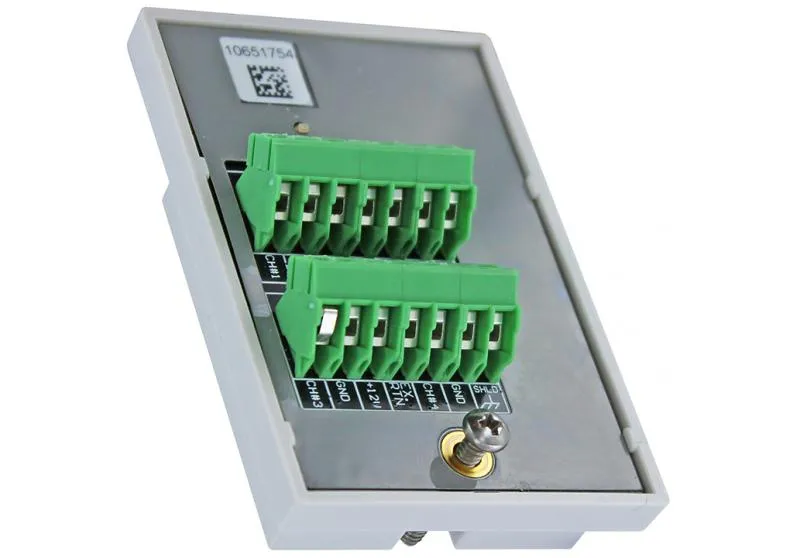

Field Wiring	Two- or three-wire via screw terminals, 16–24 AWG
Minimum/Maximum Input Voltage	0/33 V DC
Minimum/Maximum Input Current	0/25.6 mA
Minimum Source Impedance for Current Measurement	20 KΩ
Excitation Voltage	12 V DC ±5% at 200 mA maximum per module
