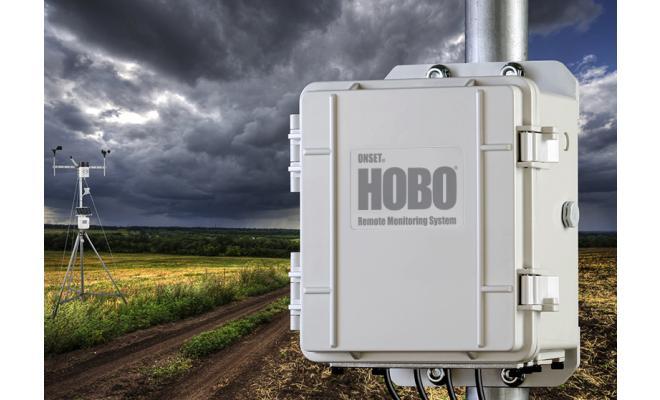

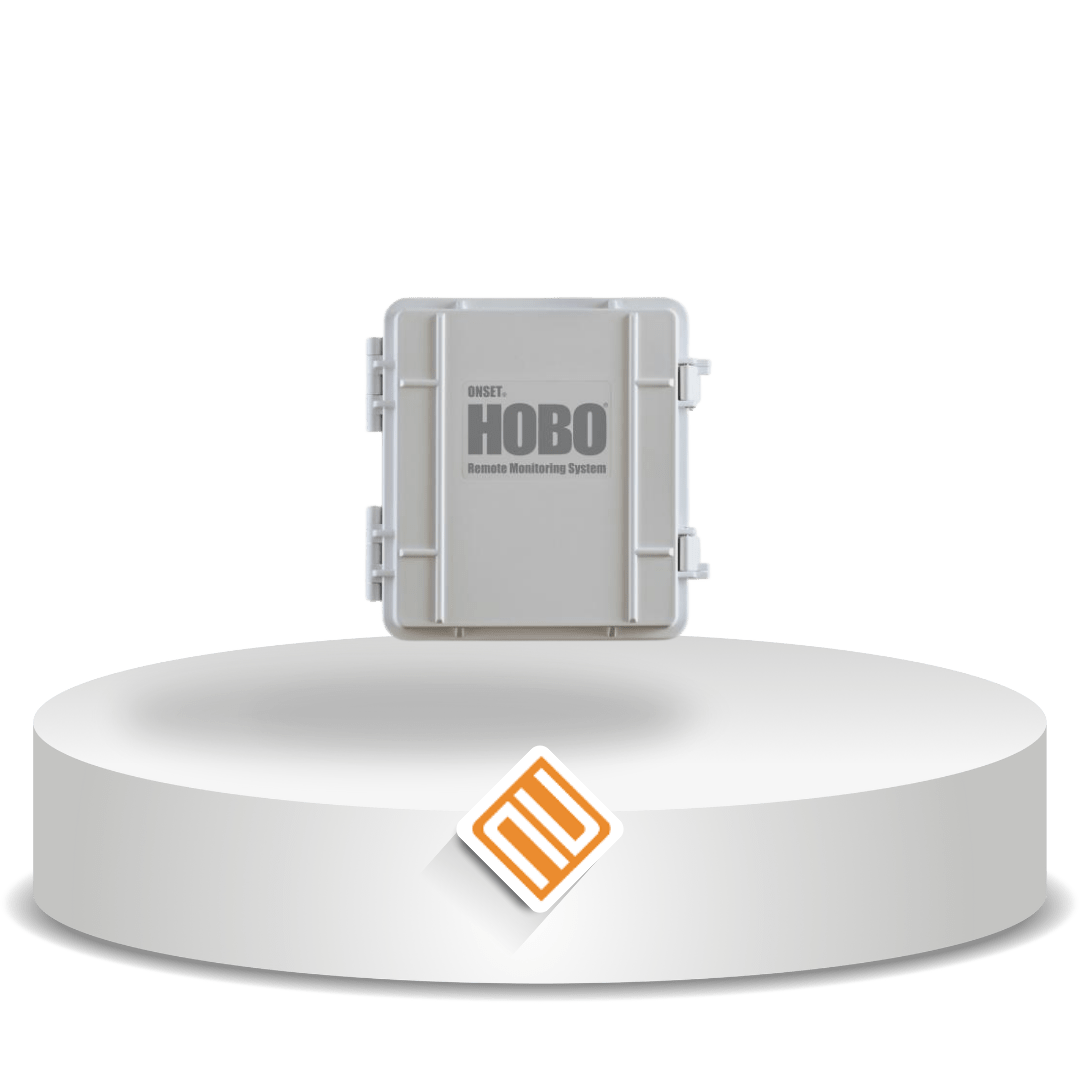

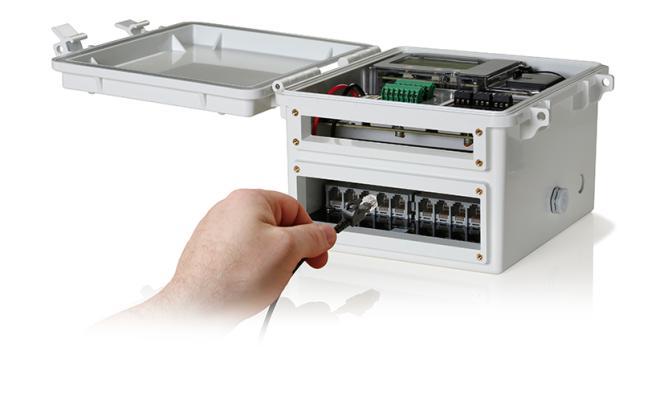

Stasiun pencatat data jarak jauh paling fleksibel dari HOBO Data Loggers, HOBO RX3000, menyediakan akses instan ke data lingkungan spesifik lokasi di mana saja, kapan saja, melalui internet. Stasiun yang dapat dikonfigurasi ini menggabungkan keserbagunaan dan kualitas sensor dari sistem yang lebih mahal, layar LCD terintegrasi, dan kemudahan pengoperasian plug-and-play. (Lihat tab “Konfigurasi Sistem” di bawah.)
Stasiun RX3000 adalah komponen utama dari Sistem Pemantauan Lapangan HOBOnet yang hemat biaya dan mudah diskalakan untuk pengelolaan tanaman, penelitian lingkungan, pergudangan, rantai dingin, dan operasi rumah kaca.
| Items | Specifications |
|---|---|
| Operating Range | -40° to 60°C (-40° to 140°F); no remote communications for battery voltage less than 3.9 V DC |
| Smart Sensor Connectors | 10 |
| Smart Sensor Network Cable Length | 100 m (328 ft) maximum |
| Smart Sensor Data Channels | Maximum of 15 (some smart sensors use more than one data channel; see sensor manual for details) |
| Module Slots | 2 |
| Logging Rate | 1 second (RX3001 & RX3002) or 1 minute (RX3003 & RX3004) to 18 hours |
| Time Accuracy | ±8 seconds/month at 0° to 40°C (32°F to 104°F) ±30 seconds/month at -40° to 60°C (-40° to 140°F) |
| Battery Type / Power Source | 4 V, 10 AHr rechargeable sealed lead-acid; external power via AC adapter (AC-U30), solar panel (SOLAR-xW), or external 5–17 V DC |
| Rechargeable Battery Service Life | Typical 3–5 years at -20° to 40°C (-4°F to 104°F); outside this range reduces service life |
| Memory | 32 MB, 2 million measurements, continuous logging |
| Alarm Notification Latency | Logging interval plus 2–4 minutes (typical) |
| Enclosure Access | Hinged door with two latches and eyelets for user-supplied padlocks |
| LCD | Visible from 0° to 50°C (32° to 122°F); may slow or go blank outside this range |
| Materials | Outer: Polycarbonate/PBT blend Inner: Polycarbonate Gaskets: Silicone rubber Cable channel: EPDM rubber Cable cover: Aluminum with ABS thumb screws |
| Size | 18.6 × 18.1 × 11.8 cm (7.3 × 7.1 × 4.7 in.) |
| Weight | 2.2 kg (4.85 lb) |
| Mounting | 3.8 cm (1.5 inch) mast or wall mount |
| Environmental Rating | Weatherproof enclosure, NEMA 4X (requires proper cable channel installation) |
| Wireless Radio | RX3003: GSM/GPRS/EDGE quad band; UMTS/HSPA+ five band RX3004: GSM/GPRS/EDGE quad band; UMTS/HSPA+ seven band; LTE twelve band |
| Antenna | RX3003: Penta band RX3004: 4G LTE |
| Ethernet (RX3001) | 1 × RJ45 / 100BaseT |
| Wi-Fi (RX3002) | IEEE 802.11 b/g/n, 2.412–2.484 GHz, up to 14 selectable channels |
| Wi-Fi Security | WEP 64/128, WPA-PSK, WPA2, AES end-to-end encryption |
