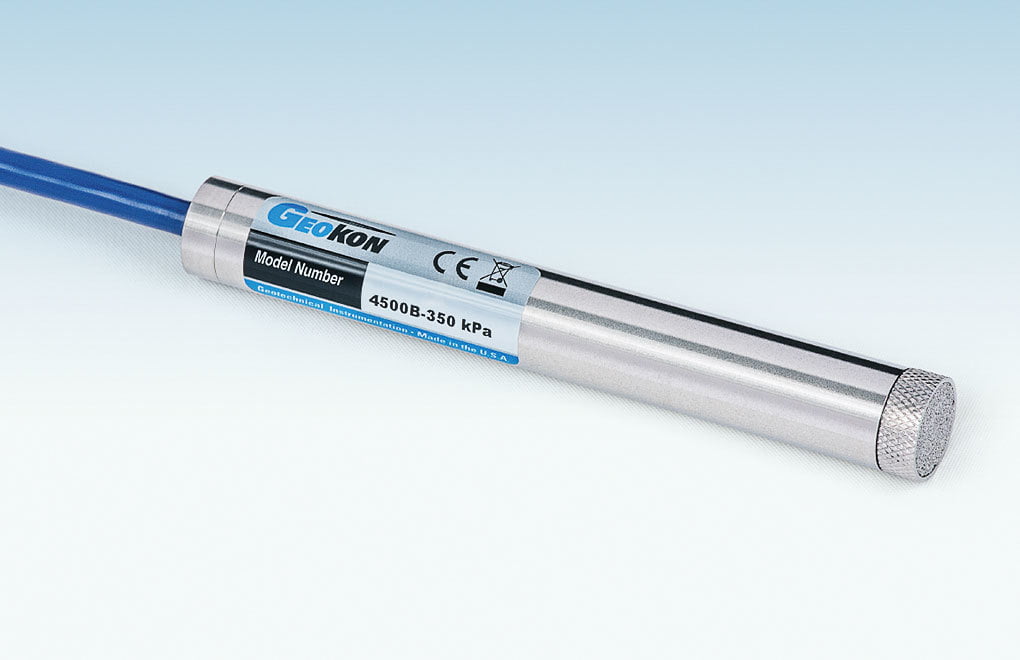

Small Diameter Piezometers (VW) Model 4500B
Small Diameter Piezometers (VW) Model 4500B - Image 2

Small Diameter Piezometers (VW) Model 4500B

Alat Pengukur Tekanan Statis, Piezometer, Sensor Piezometer

Piezometer ini dirancang secara unik untuk memungkinkan otomasi standpipes piezometer berdiameter kecil dan tidak standar. 4500B akan muat di dalam pipa 19 mm dan 4500C akan muat di dalam pipa 12 mm

Specifications

Standard Ranges : 4500B | −100 to 350, 700 kPa; 1, 2, 3 MPa
Over Range : 4500B | 1.5 × rated pressure
Resolution : 4500B | 0.025% F.S. (minimum)
Accuracy : ±0.1% F.S.
Linearity¹ : <0.5% F.S.
Temperature Range² : −20°C to +80°C
Length × Diameter : 4500B | 133 × 17.5 mm

¹±0.1% F.S. option available in some ranges for the 4500B only.

²High temperature versions available on request.
