Deskripsi
Features
●Pocket-size unit with economical price, widely used in production lines, workshops and labs.
●Wide measuring range suitable for most materials, and applicable for both inside and outside cylinder.
●Ragged design device with a long lifetime, while keeping the accurate and reliable data results.
●Measurement and conversion among Ra, Rt and Rz.
●All calculated measurement results shown on its LCD back-lit display hardly after tested.

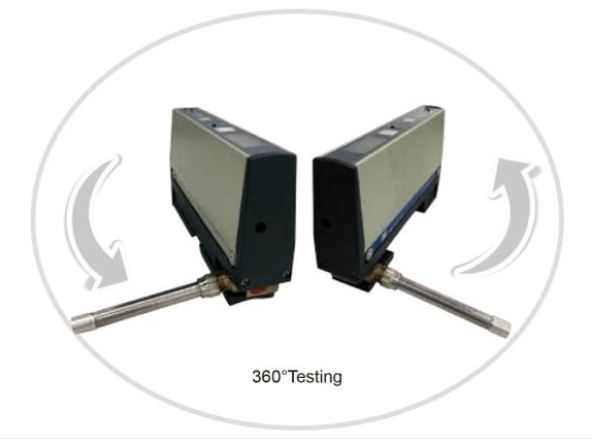

●Measuring Direction: any direction 360.
●Indicator and alarm for low battery, out-of-limit values and dysfunction.
●Chargeable Li battery and improvement of the circuits function.
●Improvement and protection for sensor to secure the high accuracy and good stability.
●Data transfer function and calibration function.
Specifications
Measuring Range | Ra: 0.03μm~6.35μm |
Rt: 0.2μm~25.3μm | |
Rz: 0.2μm~25.3μm | |
Tolerance | ≤±15% |
Repeatability | ≤12% |
Display resolution | 0.01μm |
Cutoff Length (L) | 0.8mm (Filter: RC Filter) |
Evaluation length | 1L,3L,5L(selectable) |
Driver speed | 3mm/s |
Display | LCD, 3 digital |
Interface | RS232 |
Power | 9V alkaline battery |
Pickup | Inductive |
The max.testing force of pickup | <16mN |
Operating temperature | 0℃～40℃ |
Storage temperature | -20℃～65℃ |
