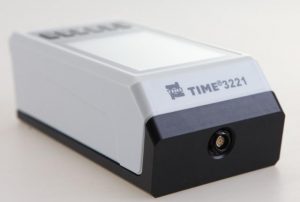

TIME3221 Surface Roughness Tester is a high cost-effective surface measurement device. Separated driver makes it easier and more flexible to approach different surfaces. Touch screen. Measuring range reaches 400μm to test curved surface.
Features
- Separated design, mini driver easy and convenient to use
- Multi-parameter measuring: Ra,Rp,Rv,Rt,Rz,Rq,Rsk,R,q,R,a,Rku,Rc,RPc,RSm,Rmr(c),tp,Rmr,Rpm,Rz1max,RzJIS,Rmax,Htp,Rδc,Pa,Pp,Pv,Pt,Pz,Pq,Psk,Pku,Pc,PSm,Pmr(c),Pmr,P,z1max,PzJIS,Pδc,P,q,Rk,Rpk,Rvk,Mr1,Mr2?A1,A2
- Touch screen with TFT LCD showing all important parameters and graphs
- High accuracy inductive pickup
- Filtering methods of 2RC, GAUSS
- Compatible with standards of ISO1997, ANSI and JIS2001
- Connected to TIME TA230 printer to print all parameters and graphs
- RS232 interface and USB interface meeting more needs
- Auto switch off
Specification
Pickup | ||
Test principle | Inductance type | |
Measurement range | 400μm | |
Stylus tip radius | 5μm/2μm | |
Stylus tip material | Diamond | |
Measuring force | 4mN/0.75 mN | |
Stylus tip angle | 90º/60º | |
Radius of skid curvature | 45mm | |
Maximum drive range | 19mm/0.748inch | |
Traversing speed | Measuring: | |
Accuracy | Less than or equal to ±10% | |
Repeatability | ≤6% | |
Cut-off length | 0.08mm,0.25mm,0.8mm,2.5mm, selectable | |
Evaluation length | (1~5 )L selectable | |
Measuring rang and resolution | Measuring range | Resolution |
Automatic | 0.001μm,0.008μm | |
±50μm | 0.001μm | |
±200μm | 0.008μm | |
Power | Built-in Li battery | |
Power adapter | Input: 100 V~240VAC,50/60Hz | |
Working environment | Temperature: 0?~40? | |
Dimensions (mm) | 155.4×75×53 | |
Weight (g) | 580 | |
| Standard Delivery | . |
| Main unit | 1 |
| Standard pickup | 1 |
| Standard sample | 1 |
| Power adapter | 1 |
| Communication cable | 1 |
| Protection sleeve | 1 |
| Adapter | 1 |
| Magnetic base | 1 |
| TIME certificate | 1 |
| Warranty card | 1 |
| Instruction manual | 1 |
