Thor VM3A Vehicle-Mounted Computer

SYSTEM ARCHITECTURE

Processor: 2.2 GHz Qualcomm
Snapdragon™ 660 octa-core
Operating System: Each Android version
guaranteed from Android 9 Pie to at least
11/R, committed support for Android 12
and 13 pending feasibility
Memory: 4 GB RAM, 32 GB Flash
Storage Expansion: User-accessible
microSD card up to 512 GB (SDXC/
SDHC-compliant)
Audio: Audio for headset, integrated stereo
speakers with adjustable volume control,
integrated microphone
Input/Output:
Enhanced Dock: 2x powered
RS-232 COM ports, 1x USB 2.0
powered host port Type A, 3 additional
USB 2.0 powered host ports, 1x USB
2.0 Client port, 1x Ethernet RJ45 port,
1x headset port, DC power input and
ignition control input
Standard Dock: 2x powered RS-232
COM ports, 1x USB 2.0 powered host
port, 1x USB 2.0 Client port, 1x headset
port, DC power input and ignition
control input
Sensors: Ambient light sensor,
accelerometer, gyroscope, magnetometer

MECHANICAL

Dimensions:
Computer: 318 mm x 260 mm x 62 mm
(12.5 in x 10.3 in x 2.4 in)
Dock: 180 mm x 155 mm x 54 mm
(7.1 in x 6.1 in x 2.1 in)
Assembled Depth: 104 mm (4.1 in)
Weight:
Computer: 3.0 kg (6.65 lbs)
Standard Dock: 1.5 kg (3.2 lbs)
Enhanced Dock: 1.1 kg (2.4 lbs)
Dock weights include mounting ball
Operating Temperature: -30°C to +50°C
(-22°F to +122°F)
Storage Temperature: -30°C to +50°C
(-22°F to +122°F)
Humidity: 5% to 95% non-condensing
Environmental Sealing: Independently
certified to meet IP66 standards for
moisture and particle resistance
ESD: EN 55024:2010 (enhanced ESD to
8 kV direct and 15 kV air)
Vibration: Proprietary Random Profile
exceeding MIL-STD-810F, composite
wheeled vehicles
Shock: SAE-J1455 (MIL-STD-810g-4.6.6
Procedure V-Crash Hazard Shock Test)

STRUCTURE

Power Supply & UPS: 10 to 60V DC
isolated, optional external converters for AC
(90–240V AC) and extended range DC (60–
150V DC); integrated Li-Ion maintenance
UPS with 30-min life at 0°C (32°F)
Display:
Indoor: 307 mm (12.1 in) XGA
(1024 x 768) LED backlit display,
400 NIT, optional screen blanking
Outdoor: 307 mm (12.1 in) XGA
(1024 x 768) LED backlit display,
900 NIT, optional screen blanking
Touch Panel: Standard: Industrial touch
panel with resistive touch and support for
finger touch and standard stylus
Multitouch: Optional industrial touch
panel with Projected Capacitance touch
for finger and conductive stylus; hardened
glass overlay
Cold Storage: Optional industrial resistive
touchscreen with integrated defroster
Integrated Keypad: Seven programmable
multi-function keys
Audio: Audio for headset, integrated stereo
speakers with adjustable volume control,
integrated microphone

WIRELESS CONNECTIVITY

WLAN: IEEE 802.11 a/b/g/n/ac; Wi-Fi
Alliance Certified, 2×2 MU-MIMO
Additional WLAN Features: 802.11
d/h/i/r/k/w
WLAN Security: OPEN, WEP, WPA/WPA2
(Personal and Enterprise)
Supported EAP: TLS, PEAP, TTLS, PWD,
FAST, LEAP CCX Version 4 compliant
WLAN Antennas: Dual internal antennas,
dual external remote and direct connect
antenna accessories; 2x SMA connectors
for external WLAN antennas
Bluetooth®: Class 1.5 V5.0 Bluetooth
and BLE
Bluetooth Profiles: HFP, PBAP, A2DP,
AVRCP, OPP, SPP, GATT
NFC: Integrated Near Field Communication

SOFTWARE

Honeywell Power Tools and Demos
Terminal Emulator
Enterprise Browser
Application Launcher and Lockdown
Provisioning Tools
Honeywell Mobility SDKs for Android,
Web and Xamarin
Support for Third-Party MDM Solutions

WARRANTY

One-year factory warranty

SERVICE PLANS

Optional service programs offer worry-free
mobile computing

Features

• The Smart Dock feature enables mounting and removal in seconds without affecting the cabling, saving on support and maintenance costs while minimizing capital expenses.

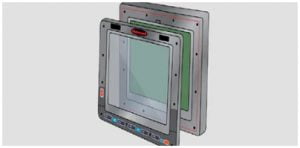

• The field-replaceable front panel reduces maintenance costs by enabling on-site unskilled personnel to service the most wear- and abuse-prone components rather than returning them to the repair depot.
• Security update availability is just as important as computer durability for maximizing a computer’s useful life. Mobility Edge products provide five more years of security updates than a typical Android device.
• No need to choose between optimizing productivity and minimizing IT support costs: All Honeywell Mobility Edge computers share a common hardware and software platform. From an IT perspective, they are all the same product.
• The Mobility Edge hardware platform and enterprise lifecycle tools drive an integrated, repeatable, scalable approach for accelerated and secure development, deployment, performance and lifecycle management.
