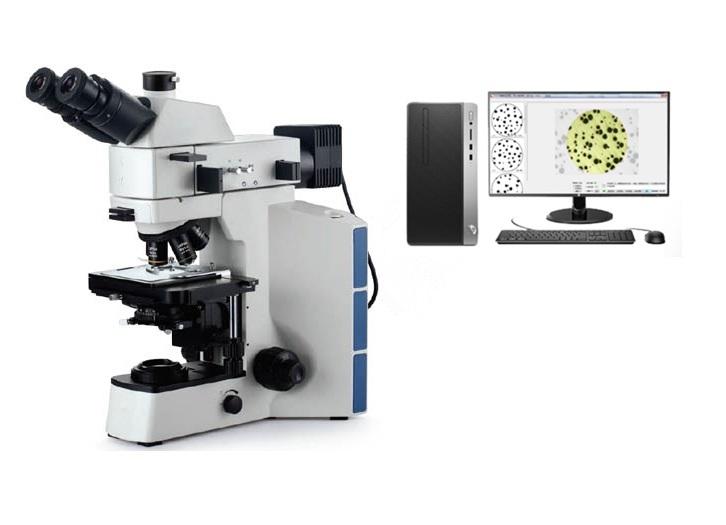

Mikroskop metalografi terkomputerisasi TIME-40MW adalah mikroskop metalografi trinokular tegak. Mesin ini memiliki kinerja pencitraan yang sangat baik dan pengalaman pengoperasian yang nyaman, memberikan solusi analisis metalografi dan inspeksi industri yang hemat biaya bagi pelanggan.

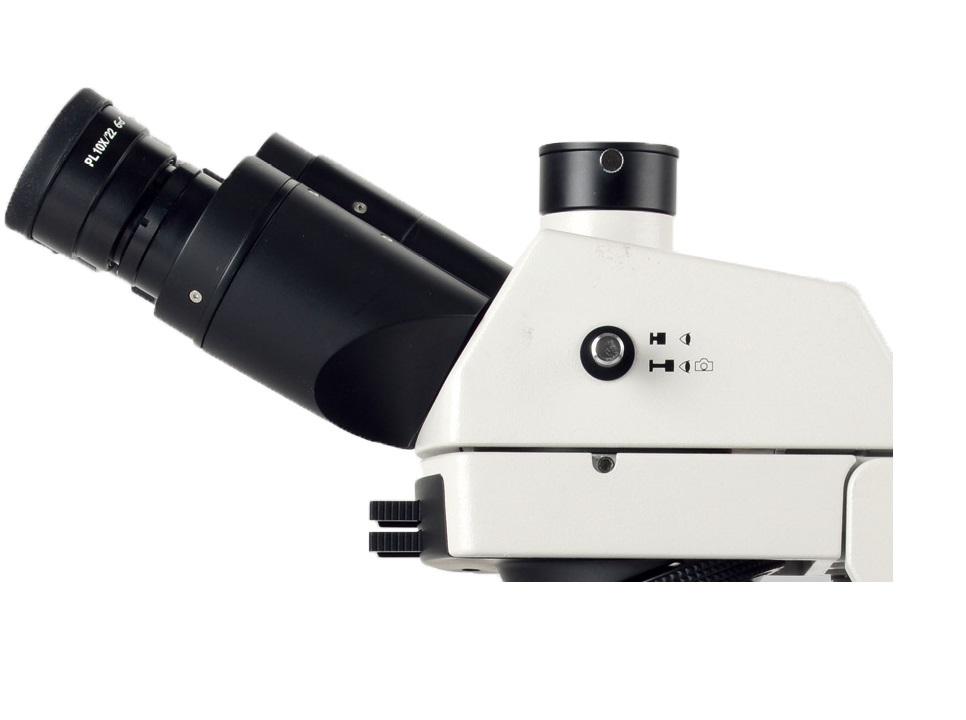

Dengan sudut pandang yang paling sesuai, kepala yang dimiringkan 30° menjaga setiap orang dalam kondisi kerja terbaik, mengurangi ketegangan dan kelelahan. Skala pada kepala alat bidai memudahkan pengguna untuk menyesuaikan jarak antar pupil yang optimal.

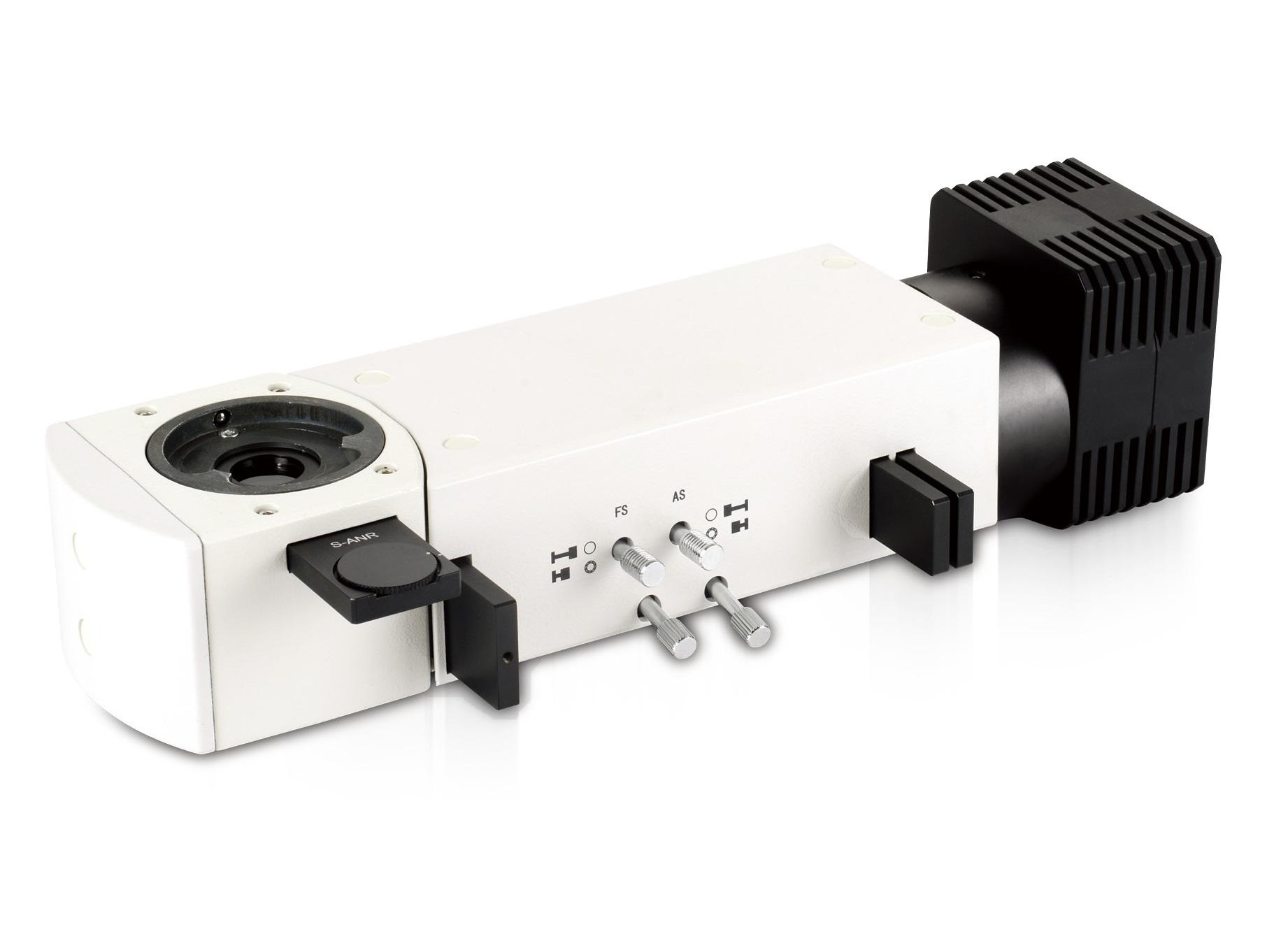

Mengadopsi sistem iluminasi Kohler, dengan diafragma bidang, diafragma apertur, dan perangkat iluminasi miring, serta slot untuk kit polarisasi dan filter.
Dibandingkan dengan LED lainnya, LED 5W tunggal dengan pencahayaan putih hangat (3000-3300K) meminimalkan kelelahan visual pada pengamat.
Dengan perangkat batang penarik untuk menyesuaikan pusat bidang dan diafragma apertur, cahaya liar dapat dihilangkan dengan memperluas atau mempersempit zona iluminasi.
Pengamatan polarisasi sederhana tersedia dengan kit polarisator yang dapat dipasang. Anda juga dapat memilih filter yang berbeda untuk mendapatkan efek pengamatan ideal sesuai kebutuhan Anda.
|
Parts |
Description |
CX-40MW |
|
Optical system |
infinity-corrected optical system |
· |
|
Viewing Head |
30° inclined; Infinity hinge three-way viewing head; the interpupillary distance is adjustable between 54mm – 75mm; diopter adjustment: ±5 diopters; two-level split ratio R:T=100:0 or 50:50 |
· |
|
Eyepiece |
High eye-point wide field plan field eyepiece PL10X/22mm |
· |
|
High eye-point wide field plan field eyepiecePL10X/22mm (Adjustable diopter, with micrometer） |
O |
|
|
High eye-point wide field plan field eyepiecePL15X/16mm |
O |
|
|
Infinity plan achromatic objective |
LMPL 5X /0.15 WD10.8mm |
· |
|
LMPL 10X/0.30 WD12.2mm |
· |
|
|
LMPL 20X/0.45 WD4.00mm |
· |
|
|
LMPL 50X/0.55 WD7.9mm |
· |
|
|
LMPL 100X/0.80 WD2.1mm |
O |
|
|
Converter |
Internal positioning five-hole converter |
· |
|
Focus Adjustment |
Transmitted & Reflected frame, coaxial focus system with tension adjustment and up-limited device, coarse range: 28mm, fine precision: 0.002mm. Stage can be adjusted up and down, 28mm high sample is available. |
O |
|
Reflected frame, coaxial focus system with tension adjustment and up-limited device, coarse range: 28mm, fine precision: 0.002mm. Stage can be adjusted up and down, 78mm high sample is available. |
· |
|
|
Stage |
Double layer mechanical stage with X/Y coaxial adjustment, size: 175mmX145mm, moving range: 76mmX42mm. |
· |
|
Metal plate for transmitted frame; glass plate for transmitted & reflected frame. |
· |
|
|
Reflected illumination |
Wide-range voltage 100V-240V_AC50/60Hz, reflected lamp-house with single 5W LED, warm color. Koehler illuminator with oblique light device, center adjustable field and aperture diaphragm |
· |
|
Transmitted illumination |
Wide-range voltage 100V-240V_AC50/60Hz, transmitted lamp-house with single 5W LED, warm color. |
O |
|
Condenser |
N.A.0.9 swing-out achromatic condenser for transmitted frame, with center adjustable aperture iris diaphragm. |
O |
|
Filter |
Yellow/neutral/IF550/LBD filter for transmitted light |
O |
|
Metallographic Analysis System |
FMIA2020 Metallographic analysis software; Sony chip 5 million camera device, 0.5X adapter lens interface, high-precision micrometer (100×0.01mm, 100×0.01cm, calibration: d = 0.15mm, d = 0.07mm） |
· |
|
Computer |
HP business PC |
O |
