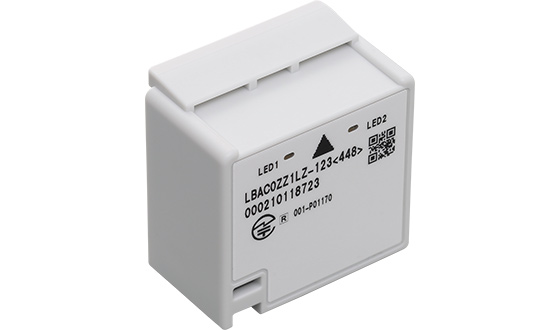

Velocity Vibration Sensor Unit

Predictive maintenance of rotating machines such as motors and pumps for more efficient equipment maintenance

DimensionsL: 38mm W: 24mm H: 38mm

Weight50g (Including battery)

Communication InterfaceProprietary ISM sub-1GHz radio certified for use according to each region/country.

Measurement ParameterPeak Acceleration (top 2), Frequency pf Peak Acceleration (top 2), Peak Velocity (top 3), Frequency pf Peak Velocity (top 3), Acceleration RMS, Velocity RMS, Kurtosis, Temperature

Measurement SpecificationAbsolute Max Rating: ±30G Resolution: 28mG
Detection Frequency:
Acceleration: 10~10,000Hz
Velocity: 10~1,000Hz
Detection Direction: Z axis
Temperature: -10℃~85℃ Resolution: 0.1℃@25℃

Measurement AccuracyVibration: ±3dB
Temperature: ±1℃@25℃

Operating EnvironmentBody (Ambient): -10℃~60℃, <90%RH (non-condensing)
Sensor (Surface): -10℃~85℃, <90%RH (non-condensing)
IP65 grade

Power SourceLithium thionyl chloride battery 1pc

Battery Life (reference)1.5 years (at 1 hour report interval and 25℃)

Measurement Interval1, 5, 10, 15, 30 min
1, 2, 6, 12, 24 h

Installation MethodMagnet
