Water Level Meter Model 101

Water Level Meter, Alat Ukur Ketinggian Air, Instrumen Pemantauan Air Tanah, Pengukuran level air kontinu atau manual dan rekaman konsentrasi berbagai parameter air

Deskripsi

Water Level Meters

Model 101

For measuring the depth to water in wells, boreholes, standpipes, and tanks, Model 101 Water Level Meters are the industry standard for portable hand operated meters. They are sturdy, easy to use and read accurately to 1/100 ft. or each millimeter.

There are two versions to choose from. The Model 101 P7 Water Level Meter features a pressure-proof probe rated to 500 psi and laser marked PVDF flat tape.

The Model 101 P2 Water Level Meter features an easy-to-repair probe and heat embossed polyethylene flat tape.

Also available, are the less expensive Model 102 and 102M Coaxial Cable Water Level Meters for use in small diameter tubes, and the basic Model 101B Water Level Meter



Features

Accurate:

  • Markings each 1/100 ft. or millimeter
  • Traceable to national standards
  • Sensitivity adjustable to conductivity
  • Probes avoid false readings in cascading water

Reliable:

  • Permanent laser markings
  • Non-stretch PVDF flat tape with stainless steel conductors

Long Life:

  • Rugged, corrosion proof components
  • Strong, flexible tapes
  • Easy to splice and repair

Flexible:

  • PVDF replacement tapes are interchangeable with other meters

Laser Marked Flat Tape

  • Durable, non-stretch PVDF flat tape
  • Accurately marked each mm or every 1/100 ft
  • Tape splice option maintained
  • Certified Traceable to National Standards

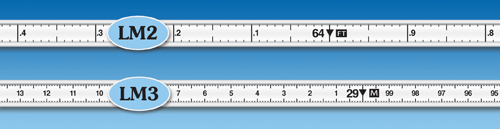

PVDF Laser Marked Tape

The Model 101 P7 Water Level Meter uses extremely durable, PVDF flat tape, traceable to NIST and EU measurement standards. Each tape conductor contains 13 strands of stainless steel, and 6 strands of copper-coated steel, making the tape non-stretch and high in tensile strength and electrical efficiency. The tape has a thick dog bone design that prevents adherence to wet surfaces, and allows it to hang straight in application. The tape is also easy to splice.

The 3/8″ (10 mm) tapes come with permanent laser markings every 1/100 ft. or each millimeter, in lengths up to 5000 ft. (1500 m).

LM2: Feet and tenths: with markings every 1/100 ft.
LM3: Meters and centimeters: with markings every mm



solinst water level meters flexible non-stretch tape stainless steel conductors image



Operating Principles

Model 101 Water Level Meters use corrosion proof stainless steel probes attached to permanently marked flat tape, fitted on a well-balanced reel. They are powered by a standard 9 volt battery.

The probes incorporate an insulating gap between electrodes. When contact is made with water, the circuit is completed, activating a loud buzzer and a light. The water level is then determined by taking a reading directly from the tape at the top of the well casing or borehole.

A sensitivity control allows the buzzer to be turned off while in cascading water, and ensures a clear signal in both high and low conductivity conditions.



Polyethylene Tape

The Model 101 P2 Water Level Meter uses high quality polyethylene tape that reels smoothly, remains flexible and hangs straight in the well. Heat embossed marking each millimeter or 1/100 ft. allow accurate readings. The 3/8″ (10 mm) wide tapes come in lengths up to 1000 ft. (300 m).

Seven stranded stainless steel conductors resist corrosion, provide strength and are non-stretch. They make the tape very easy to repair and splice. The dog-bone design reduces adherence to wet surfaces.

M2 Feet and tenths: with markings every 1/100 ft.
M3 Meters and centimeters: with markings every mm



solinst water level meters flexible non-stretch tape stainless steel conductors image



water level indicator solinst water level meters water level water level indicators water level dip meters groundwater groundwater industry laser marked water level meters 101 Water Level Meters flat tape water level meters flat tape water level indicators image

Solinst Polyethylene Tape Design

  • Dog bone design prevents tape from clinging to sides of well
  • Permanent heat-embossed markings are easy-to-read
  • Non-stretch tape uses 7 strands of stainless steel in each conductor
  • Marked every 1/100 ft or each mm
  • Easy to repair tape

Reels


  • Model 101 P7 Water Level Meter
    (Laser Marked PVDF Tape)


  • Model 101 P2 Water Level Meter
    (Heat Embossed Markings on Polyethylene Tape)

With a stand-alone design, convenient carrying handle, and sturdy probe holder, the standard reels are ergonomically designed for ease of use. They are robust and smooth running. The battery is housed in a convenient drawer in the front of the reel, allowing quick replacement. The reels are equipped with an on/off sensitivity switch, light, buzzer, battery test button, brake and a tape guide stored on the frame.



Length Options

Solinst Model 101 P7 and P2 Water Level Meters are available on reels as shown below, in the following standard lengths:

Small Reel 100 ft. 30 m
200 ft. 60 m
300 ft. 100 m
Medium Reel 500 ft. 150 m
750 ft. 250 m
1000 ft. 300 m
Large Reel 1250 ft. 400 m
1650 ft. 500 m
2000 ft. 600 m

* Polyethylene tapes are only available in these lengths

P7 Water Level Meter Probe

The P7 Probe is submersible up to 1000 ft. (300 m), therefore, you can measure total well depth in ideal conditions. The sensor at the tip of the probe provides consistent measurements with almost zero displacement. The tape seal plug design allows the probe to be quickly and easily replaced, if required.

Size: 5/8″ dia., 5.38″ long (16 mm x 137 mm)
Weight: ~4.5 ounces (128 g)

solinst water level meters water level indicators p2 probe p7 probe total well depth measuring total well depth water level probes water level meter probes water level indicator probes tape guide tape guide datum datum guide image



P2 Water Level Meter Probe

The P2 Water Level Meter Probe is shielded in design to reduce or eliminate false readings in cascading water. The probe consists of a stainless steel body with a neoprene heat shrink seal. It is not suitable for submergence to any significant depth. Its simple design makes it easy to repair.

Size: 0.55″ dia., 7.5″ long (14 mm x 190 mm)
Weight: ~7 ounces (200 g)

solinst water level meters water level indicators p2 probe p7 probe total well depth measuring total well depth water level probes water level meter probes water level indicator probes tape guide tape guide datum datum guide image
