Water Monitoring-HOBO Pendant MX Water Temperature Data Logger

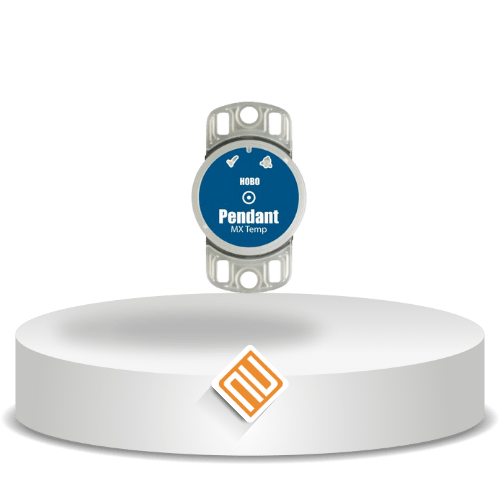

HOBO Pendant MX Water Temperature Data Logger

Overview

Logger dengan Fitur Bluetooth
Logger tahan air yang dilengkapi dengan koneksi nirkabel Bluetooth untuk mengirimkan data pengukuran suhu secara akurat langsung ke perangkat seluler atau komputer Windows melalui aplikasi HOBOconnect.

Informasi Penting
Penggunaan perangkat ini memerlukan perangkat seluler atau komputer Windows yang kompatibel serta aplikasi HOBOconnect. Persyaratan sistem aplikasi dapat dilihat pada bagian bawah halaman perangkat lunak HOBOconnect.

Features

Pengaturan dan pengunduhan data secara nirkabel yang praktis melalui Bluetooth
Dilengkapi pelindung pemasangan (mounting boot)
Memori besar mampu menyimpan hingga 96.000 data pengukuran
Tahan air hingga kedalaman 30 meter (100 kaki)
Baterai dapat diganti oleh pengguna
Tersedia dudukan pemasangan untuk instalasi yang cepat dan mudah
Lampu LED akan menyala saat suhu melebihi batas yang telah ditentukan
Dapat digunakan dengan aplikasi HOBOconnect gratis
Akurasi pengukuran ±0,5°C (±0,9°F)

Specifications

Temperature Sensor (MX2201 and MX2202)

Measurement Range (Air)	-20° to 70°C -4° to 158°F
Measurement Range (Water)	-20° to 50°C -4° to 122°F
Accuracy	±0.5°C from -20° to 70°C ±0.9°F from -4° to 158°F
Resolution	0.04°C 0.072°F
Drift	<0.1°C per year <0.18°F per year
Response Time	17 minutes typical to 90% in air moving 1 m/s, unmounted 7 minutes typical to 90% in stirred water, unmounted

Light Sensor (MX2202)

Measurement Range	0 to 167,731 lux (0 to 15,582 lum/ft²)
Accuracy	±10% typical for direct sunlight (see Light Measurement on page 2 for more details)

Logger

Logger Operating Range	-20° to 70°C in air -4° to 158°F in air
Buoyancy (Fresh Water)	2 g positive 0.07 oz positive
Waterproof	To 30.5 m To 100 ft
Radio Power	1 mW 0 dBm
Transmission Range	Approximately 30.5 m line-of-sight Approximately 100 ft line-of-sight
Wireless Data Standard	Bluetooth Low Energy (Bluetooth Smart)
Logging Rate	1 second to 18 hours
Time Accuracy	±1 minute per month at 25°C ±1 minute per month at 77°F
Battery	CR2032 3V lithium, user replaceable
Battery Life	1 year typical at 25°C (77°F) with logging interval of 1 minute and Bluetooth Always On enabled in software. 2 years typical at 25°C (77°F) with logging interval of 1 minute and Bluetooth Always On disabled in software. Faster logging intervals and statistics sampling intervals, burst logging, remaining connected with the app, excessive downloads, and paging may impact battery life. To ensure proper battery installation, see Battery Information for detailed instructions on replacing the battery.
Memory	96,000 measurements
Full Memory Download Time	Approximately 45 seconds; may take longer the farther the device is from the logger
Wetted Materials	Polypropylene case, EPDM O-ring
Dimensions	3.35 x 5.64 x 1.8 cm (1.32 x 2.22 x 0.69 inches)
Weight	12.75 g (0.45 oz)
Environmental Rating	IP68
