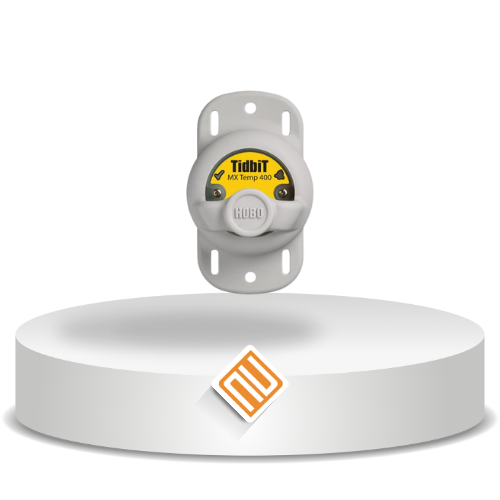

Water Monitoring-HOBO TidbiT MX Temperature 400-ft Data Logger

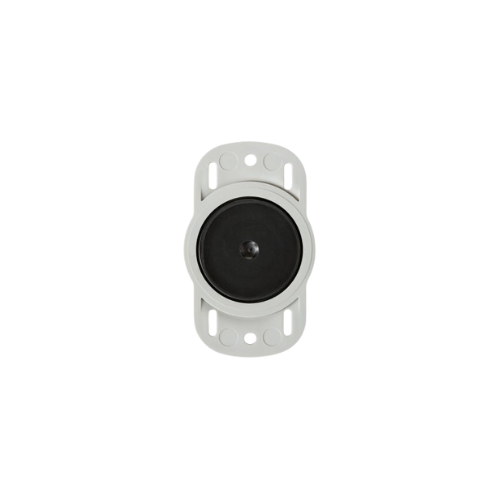

HOBO TidbiT MX Temperature 400-ft Data Logger - Image 2

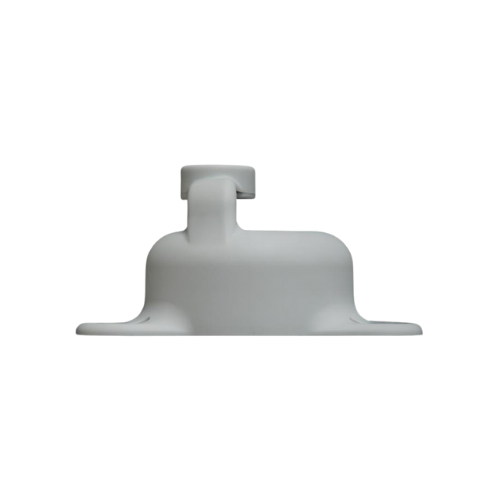

HOBO TidbiT MX Temperature 400-ft Data Logger - Image 3

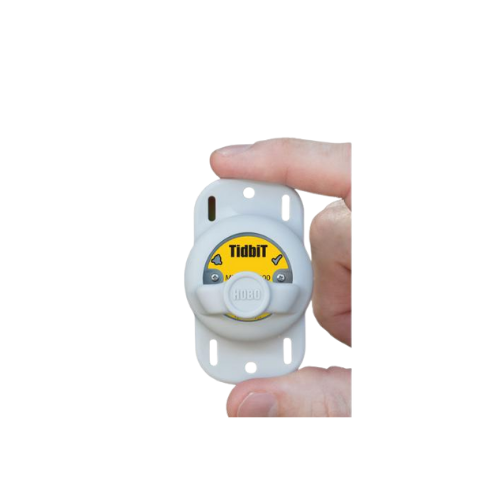

HOBO TidbiT MX Temperature 400-ft Data Logger - Image 4

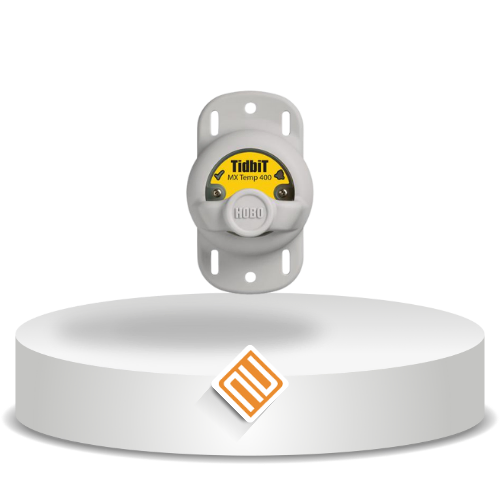

HOBO TidbiT MX Temperature 400-ft Data Logger

Overview

Bluetooth
Pencatat data suhu tahan air yang memanfaatkan teknologi Bluetooth untuk mengirimkan data dengan akurasi tinggi secara langsung ke perangkat seluler atau komputer Windows melalui aplikasi HOBOconnect gratis.

Informasi Penting
Memerlukan perangkat seluler atau komputer Windows yang kompatibel serta aplikasi HOBOconnect. Persyaratan sistem aplikasi dapat ditemukan di bagian bawah halaman perangkat lunak HOBOconnect.

Features

  1. Pengaturan dan pengunduhan data nirkabel yang praktis melalui Bluetooth
  2. Memori berkapasitas besar mampu menyimpan hingga 96.000 data pengukuran
  3. Tahan air hingga kedalaman 120 meter (400 kaki)
  4. Fitur deteksi air untuk mencatat saat logger berada di dalam dan di luar air
  5. Baterai dapat diganti oleh pengguna
  6. Pelindung tahan air (waterproof boot) melindungi logger selama proses pemasangan
  7. LED indikator menyala ketika suhu melebihi ambang batas yang telah ditetapkan
  8. Fitur perpanjangan masa pakai baterai
  9. Kompatibel dengan aplikasi HOBOconnect gratis dari Onset
  10. Akurasi pengukuran ±0,2°C (±0,36°F)

Specifications

Temperature Sensor

Range -20° to 70°C (udara)
-20° to 50°C (air)
-4° to 158°F (udara)
-4° to 122°F (air)
Accuracy
±0.25°C from -20° to 0°C (±.45°F from -4° to 32°F)

±0.2°C from 0° to 70°C (±0.36°F from 32° to 158°F)
Resolution 0.01°C (0.018°F)
Drift
<0.1°C per year (<0.18°F per year)
Response Time
17 minutes typical to 90% in air moving 1 m/s, unmounted;

7 minutes typical to 90% in stirred water, unmounted

Logger

Operating Range -20° to 70°C (-4° to 158°F)
Buoyancy (Fresh Water) 3.1 g negative (0.11 oz negative)
Depth Rating IP68; tahan air hingga 122 m (400 ft)
Water Detection Water conductivity level of 100 µS/cm or greater necessary for reliable detection of water. Deionized water or water below 100 µS/cm may not be detected.
The water conductivity circuit may not reliably detect water that has frozen around the electrodes, i.e. below 0°C (32°F).
Radio Power 1 mW (0 dBm)
Transmission Range
Approximately 30.5 m line-of-sight  (Approximately 100 ft line-of-sight)
Wireless Data Standard Bluetooth Low Energy (Bluetooth Smart)
Logging Rate 1 second to 18 hours
Time Accuracy
±1 minute per month at 25°C (±1 minute per month at 77°F)
Battery CR2477 3V lithium, user replaceable
Battery Life
3 years, typical at 25°C (77°F) with logging interval of 1 minute and Bluetooth Always Off disabled in software.

5 years, typical at 25°C (77°F) with logging interval of 1 minute and Bluetooth Always Off or Bluetooth Off Water Detect enabled in software.
Faster logging intervals and statistics sampling intervals, burst logging, remaining connected with the app, excessive downloads, and paging may impact battery life.
To ensure proper battery installation, see Battery Information for detailed instructions on replacing the battery in the MX2203 logger.
Memory 96,000 measurements
Full Memory Download Time Approximately 45 seconds; may take longer the farther the device is from the logger
Wetted Materials Polypropylene case, Delrin® battery cover, EPDM O-ring,
stainless steel screws, Santoprene® (TPE) boot
Dimensions 4.45 x 7.32 x 3.58 cm
1.75 x 2.88 x 1.41 inches
Weight 36.2 g
1.28 oz
