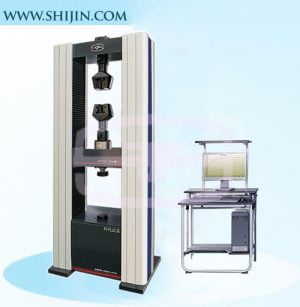

WDW-200E/300E microcomputer control electronic universal testing machine
Technical indicator / test machine model | WDW-200E | WDW-300E |
Characteristics | Fully digital measurement control system with imported servo system and servo motor | |
Maximum test force ( kN ) | 200 | 300 |
Host stiffness ( kN/mm ) | 400 | 400 |
Host accuracy | All important parts of the mainframe are processed by large processing centers imported from Japan to ensure the accuracy of the testing machine. | |
Precision ball screw precision | All precision ball screw pairs of 16 μ m/300mm class E are ground | |
Test force measurement range | 2% of maximum test force – 100% / 0.4% – 100% | |
Test force accuracy | Better than ± 1% of indication (precise grade ± 0.5% ) | |
Test force resolution | 1/300000 of the maximum test force | |
Deformation measurement range | 0.2 — 100% FN | |
Deformation measurement accuracy | Extensometer full range of 0.2% – 100% of the range, the value shown better than ± 1% (precision of ± 0.5% ) | |
Displacement resolution | 0.001mm | |
Force control rate control range | 0.005 — 5% FN | |
Force control rate control accuracy | When the rate is <0.05FN/s , it is within ± 2% of the set value; when the rate is ≥0.05FN/s , it is within ± 0.5% and ± 1% of the set value. | |
Deformation rate control range | 0.005 — 5% FN | |
Deformation rate control accuracy | When the rate is <0.05FN/s , it is within ± 2% of the set value; when the rate is ≥0.05FN/s , it is within ± 0.5% of the set value. | |
Displacement rate control range | 0.005mm/min — 500mm/min stepless, arbitrarily set | |
Displacement rate control accuracy | When the rate is <0.01mm/min , the set value is within ± 1% ; when the rate is ≥ 0.01mm/min , the set value is within ± 0.2% . | |
Constant force, constant deformation, constant displacement control range | 0. 5 — 100% FN/s | |
Constant force, constant deformation, constant displacement control accuracy | When the set value is ≥ 10% FN , within ± 0.01% of the set value; when the set value is < 10% FN , within ± 1% of the set value | |
Stretching stroke ( mm ) | 600 | 600 |
Test space width ( mm ) | 600 | 600 |
Mainframe dimensions ( mm ) | 1100 × 770 × 2685 | 1100 × 770 × 2685 |
Attachment form | Standard wedge-shaped stretch attachments, compression, bending attachments and other attachments proposed by the user | |
Electronic control system installation method | Bottom type | |
Quality ( kg ) | 1560 | 1560 |
Motor Power | 3 | 3 |
Machine form | Floor-standing |
