Deskripsi
SYSTEM ARCHITECTURE
Processor: 2.2 GHz Qualcomm®
Snapdragon™ 660 octa-core
Operating System: Each Android version
guaranteed from 7.1 to at least 11/R,
committed support for Android 12 and 13
pending feasibility
Memory: 3 GB/4 GB DDR4 RAM, 32 GB Flash
Display: 118 mm (4.7 in) High Definition
(1280 x 720) bright color LCD with backlight,
outdoor readable, optically bonded to touch
panel, oleophobic fingerprint rejection
Touch Panel: Rugged multi-touch capacitive
touch panel, optically bonded for extra
durability and better sunlight readability.
Automatic switching between glove and finger
modes. Water droplet rejection. Visibility of
the screen in landscape mode with polarizing
glasses in sunny environments. Covered
with Gorilla Glass 5 for increased resistance
to drops. (Gorilla Glass 5 is offered only in
models with N6703SR or N6703HD scan
engines)
Keypad: On-screen customizable keypad,
dual-action side scan triggers, volume up/
down, camera, power button
Audio: Speaker, dual microphone support
with noise cancellation. PTT support and
Bluetooth® wireless headset support
I/O Ports: Durable, custom IO connector
Camera: 13-megapixel color camera, 4K
video with image stabilization, and advanced
software features for enhanced exposure
control
Sensors: Ambient light sensor, proximity
sensor, accelerometer, gyroscope,
magnetometer,
pressure sensor
Storage Expansion: User-accessible microSD
card up to 512 GB (SDXC/SDHC/SDIOcompliant)
Battery: Li-Ion, 3.6 V, 4040 mAh with
integrated battery diagnostics. Warm swap
capability that allows 1 minute to change
batteries without loss of application work flow.
(Warm swapping is offered only in models
with N6703SR or N6703HD scan engines)
Hours of Operation: 12+ hours
Decode Capabilities: Honeywell N6603SR,
N6703SR, or N6703HD Slim Imager Engines
(1D/2D barcode symbologies), Honeywell
SDKs for Android
Application Software: Honeywell Utilities and
Demos
Warranty: One-year factory warranty
WIRELESS CONNECTIVITY
Cellular Radio
LTE Advanced Support
Supports VoLTE
Up to 400 Mbps CAT13 LTE downlink
Up to 75 Mbps CAT5 LTE uplink
• LTE (FDD) – Bands 1, 2, 3, 4, 5, 7, 8, 12, 13,
17, 19, 20, 25, 26, 28, 29
• LTE (TDD) – Bands 38, 39, 40, 41
UMTS/HSPA+ (3G) – Bands 1, 2, 4, 5, 6, 8, 9,
19
GSM/GPRS/EDGE Quad-Band
(850/900/1800/1900 MHz)
1xRTT/EV-DO – Bands BC0, BC1, BC10 (B26
BW)
WLAN: IEEE 802.11 a/b/g/n/ac; Wi-Fi certified
Additional WLAN Features: 802.11 r (802.11 k/
mc –
via future release)
WLAN Security: OPEN, WEP, WPA/WPA2
(Personal and Enterprise)
Supported EAP: TLS, PEAP, TTLS, PWD, FAST,
LEAP CCX Version 4 certified
Bluetooth: V5.0 Bluetooth and BLE Supported
Bluetooth Profiles: HFP, PBAP, A2DP, AVRCP,
OPP, SPP, GATT
NFC: Integrated Near Field Communication
VPN: IPSec V4/L2TP, PPTP
Push to Talk (PTT): Supported
GPS Supported Protocols: Simultaneous
GNSS Receiver Support for A-GPS, GLONASS,
Qualcomm Gen9 position engine, Galileo, and
BeiDou
MECHANICAL
Dimensions: 160 mm x 82.5 mm x 19 mm
(6.3 in x 3.2 in x 0.75 in)
Weight: 350 grams (12.4 oz) with battery pack
ENVIRONMENTAL
Operating Temperature: -20°C to 50°C
(-4°F to 122°F)
Storage Temperature: -30°C to 70°C
(-22°F to 158°F)
Humidity: 0% to 95% relative humidity
(non-condensing)
Drop: 2.4 m (8 ft) to concrete at room temp
per MIL-STD 810G;
1.5 m (5 ft) to concrete at -10ºC
to 50ºC (14ºF to 122ºF) temperature range;
1.2 m (4 ft) to concrete down to -20ºC (-4ºF)
Tumble: Exceeds 1,000 1.0 m (3.3 ft) tumbles
per IEC 60068-2-32 specification
ESD: ±15 kV Air and ±8 kV Direct
Environmental Sealing: Independently
certified to meet IP67 and IP65 standards for
moisture and particle intrusion
Features
- Common hardware platform and enterprise lifecycle tools drive an integrated, repeatable, scalable approach for accelerated and secure development, deployment, performance management, and lifecycle management.
- Support through Android R, starting with Android 8.1 (O). Additionally, customers using Windows® -based operating systems can migrate to Android without sacrificing reliability, performance, or management features.

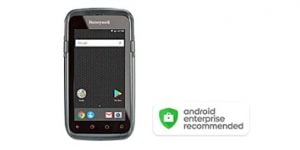

- The CT60 mobile computer is the first enterprise-grade device with LTE-Advanced and carrier aggregation for speeds up to 300 Mbps. Provides better network coverage, speed, anytime, anywhere connectivity, and device longevity.
- Advanced 2D imager delivers best-in-class data capture on linear and 2D barcodes. Optional scan handle for flexibility to switch between handheld and pistol grip operations to reduce user fatigue.
- Sleek, lightweight, and rugged. Fits easily into a pocket. IP65 and IP67 ratings against dust/water spray; can withstand multiple 1.5 m (5 ft) drops to concrete and 1,000 1.0 m (3.3 ft) tumbles.
