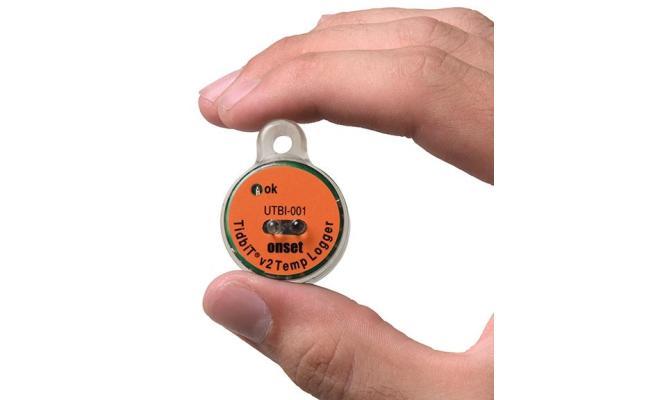

Dengan ukuran hanya 3×4 cm, pencatat data mungil ini mengukur suhu dalam rentang yang luas, memberikan resolusi 12-bit dan akurasi ±0,2 °C. Dirancang untuk lingkungan luar ruangan dan bawah air, pencatat ini tahan air hingga kedalaman 300 m (1000 kaki). Antarmuka USB optik memungkinkan Anda untuk mengunduh data dalam hitungan detik.
Harap diperhatikan: Pelindung radiasi matahari diperlukan untuk mendapatkan pengukuran suhu udara yang akurat di bawah sinar matahari (Pelindung Radiasi Matahari RS1 yang perlu dirakit atau Pelindung Radiasi Matahari M-RSA yang sudah dirakit).
| Parameter | Specification |
|---|---|
| Operation Range | -20° to 70°C in air -4° to 158°F in air Maximum sustained temperature in water: 30°C (86°F) |
| Accuracy | ±0.21°C from 0° to 50°C ±0.38°F from 32° to 122°F |
| Resolution | 0.02°C at 25°C 0.04°F at 77°F |
| Response Time | 5 minutes in water 12 minutes in air moving 2 m/sec 20 minutes in air moving 1 m/sec (typical to 90%) |
| Stability (Drift) | 0.1°C per year 0.18°F per year |
| Real-Time Clock Accuracy | ±1 minute per month from 0° to 50°C (32° to 122°F) |
| Battery | 3 Volt lithium, non-replaceable |
| Battery Life (Typical Use) | 5 years with logging interval of 1 minute or greater |
| Memory | 64 KB non-volatile memory Approximately 42,000 (12-bit) temperature measurements |
| Weight | 19.6 g (0.69 oz) |
| Dimensions | 3.0 × 4.1 × 1.7 cm (1.2 × 1.6 × 0.68 in.) Mounting bail: 4.6 mm (3/16 in.) diameter hole |
| Wetted Materials | Epoxy case |
| Waterproof Rating | Up to 305 m (1000 ft.) |
| Logging Interval | Fixed-rate or multiple intervals Up to 8 user-defined intervals and durations Interval range: 1 second to 18 hours |
| Launch Modes | Immediate start, delayed start, triggered start |
| Offload Modes | Offload while logging; stop and offload |
| Battery Indication | Battery level viewable on status screen and optionally logged Low battery indication recorded in datafile |
| Environmental Rating | IP68 |
| NIST Certificate | Available for additional charge |
