DJ series are designed for quick inspecting a wide range of non-conductive coatings and linings for pinholes, porosity and other faults by means of pulsed voltage in the non-destructive testing field. It is widely used in the petro-chemical, pipe mills, plastic fabrication and aerospace industries.
● DJ series are designed for quick inspecting a wide range of non-conductive coatings and linings for pinholes, porosity and other faults by means of pulsed voltage in the non-destructive testing field. It is widely used in the petro-chemical, pipe mills, plastic fabrication and aerospace industries.
● Display of output high voltage directly
● Clear LCD with blue backlight
● Switch off automatically
● State of charge indicator
● DJ-6(A): mainly used for the antisepsis of pottery
● DJ-6(B): mainly used for petroleum pipeline (high voltage)
● DJ-9: displays leakage points of antisepsis coating on two digits

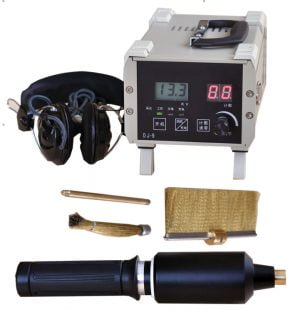

| Standard Delivery | Optional Accessory | |
| Main unit | 1 | Arc-shaped brush |
| High voltage detector | 1 | Circle probe |
| Brush probe | 2 | |
| Brace rod | 1 | |
| Earth lead | 1 | |
| Earphone | 1 | |
| Power charger | 1 | |
| Fuse | 2 | |
| Shoulder strap | 1 | |
| TIME certificate | 1 | |
| Warranty card | 1 | |
| Instruction manual | 1 |
Technical Specifications
Model | DJ-6(A) | DJ-6(B) | DJ-9 |
Thickness | 0.03-1mm | 0.05-10mm | |
Output voltage | 0.6KV-8KV | 0.6KV-35KV (adjustable) | |
DC voltage | 12V | ||
Consumed power | 6W | ||
Alarm | Both earphone and buzzer | ||
Display | Three digit LCD, fully touch screen | ||
Dimension (mm) | 220x130x88 | ||
