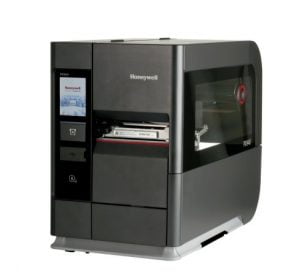

PX940 Industrial Printer with Integrated Label Verification

Dikembangkan untuk perusahaan yang akan dikenakan denda karena ketidakpatuhan standar peraturan dan pengiriman kembali karena barcode tidak terbaca, PX940 mencetak kode batang yang 100% dapat dibaca setiap saat. Dengan lulus / gagal dan nilai ANSI dari 0,0 (F) hingga 4,0 (A), label buruk yang tidak memenuhi ambang batas yang ditetapkan dibatalkan dan label baru dicetak ulang. PX940 tersebut printer memiliki registrasi cetak hingga +/- 0,2 mm (0,0079 inci). Tren menuju miniaturisasi membutuhkan pencetakan pada label yang lebih kecil dan lebih kecil. PX940 tersebut akan mencetak secara akurat pada label kecil, ujung ke ujung dengan presisi tinggi. Printer PX940 cocok untuk transportasi dan logistik, farmasi dan perawatan kesehatan, pusat pengiriman dan distribusi, manufaktur industri, pemasok suku cadang otomotif, dan aplikasi yang diatur dan membutuhkan tinggi pencetakan presisi dan bebas kesalahan. Printer PX940 tersedia dalam dua versi: satu dengan pemverifikasi terintegrasi, dan opsi tanpa pemverifikasi terintegrasi. Kedua versi tersedia dengan fitur standar seperti Bluetooth® LE, digunakan dengan Print Set MC dan kemampuan pencetakan cerdas. Pencetakan cerdas memungkinkan pengguna untuk mengkonfigurasi pengaturan printer dan mencetak tanpa membutuhkan komputer induk. Dengan platform firmware Honeywell yang mendukung berbagai bahasa cetak, file Printer PX940 adalah pengganti yang mudah untuk printer pesaing. Semua logam yang kokoh mekanisme cetak, printhead mudah dan penggantian roller pelat tanpa alat, dan a sistem pemeliharaan prediktif membantu meminimalkan waktu henti dan pemeliharaan. Printer PX940 dapat mendukung berbagai media – termasuk pita tinta masuk dan keluar dengan ukuran inti satu inci – memungkinkan waktu maksimum antar media memasok kembali. Waktu cepat untuk memberi label dan kecepatan cetak hingga 350 mm / s (14 ips) memastikan yang dapat diskalakan oleh printer PX940 dengan kebutuhan operasi dinamis yang terus berubah.

Deskripsi

STANDARD

Print Method: Thermal Transfer and
Direct Thermal
3.5 in color touch LCD
Foldable clear media door
Dual Label Stop Sensor for precision printing
Dual Core 1 GB processor (ARM® Cortex®
A9 core)
256 MB Flash memory
1 GB DDR3 SDRAM
Multi-GB USB memory device (FAT16/FAT32)
Internal real-time clock

MECHANICAL

PX940/PX940 Verifier Version:
L x H x W: 506 mm x 398.7 mm x 261 mm
(19.92 in x 15.70 in x 10.28 in)
Weight: 23 kg (50.71 lbs)
PX940:
Weight: 23 kg (50.71 lbs)
PX940 Verifier Version:
Weight: 23.5 kg (51.81 lbs)

PRINT SPECIFICATIONS

Print Resolution:
At 203 dpi: 8 dots/mm
At 300 dpi: 11.8 dots/mm
At 600 dpi: 23.6 dots/mm
Print Speed:
At 203 dpi: 50–350 mm/s (2–14 ips)
At 300 dpi: 50–300 mm/s (2–12 ips)
At 600 dpi: 25–150 mm/s (1–6 ips)
Maximum Width:
At 203 dpi: 108 mm (4.25 in)
At 300 dpi: 105.7 mm (4.16 in)
At 600 dpi: 105.6 mm (4.16 in)
Maximum Continuous Print Length:
At 203 dpi: 4.8 m (15.75 ft)
At 300 dpi: 2.2 m (7.22 ft)
At 600 dpi: 0.55 m (1.81 ft)

BARCODE VERIFIER SPECIFICATION

(PX940 Verifier Version only)
Scan Resolution: 600 dpi
Maximum Scan Width: 108 mm (4.25 in)
Light Source: 660 nm
Maximum Verification Speed:
At 203 dpi & 300 dpi: 250 mm/s (10 ips)
At 600 dpi: 150 mm/s (6 ips)
Barcode Orientation: All directions
Barcode Verification Modes: Linear (1D)
barcode verification conforming to ISO/IEC
15416-2016; 2-Dimensional (2D) barcode
verification conforming to ISO/IEC 15415-
2011; Read/No Read Barcode verification
Minimum Linear (1D) Bar Width: 10 mils
(0.254 mm)
Minimum 2D Cell Size: 10 mils (0.254
mm)
Supported 1D Symbologies:
Code 39, HIBC 39, Code 93, Code 128, ISBT
128, HIBC 128, EAN-128, GS1-128, EAN-8,
EAN-13, UPC-A, UPC-E, Interleaved 2 of
5, ITF-14, SCC-14, RSS14E, GS1 Databar
Expanded
Supported 2D Symbologies:
Data Matrix, ISBT Data Matrix, QR code
Maximum Verification Length: 304.8 mm
(12 in)
Maximum Voiding Length:
Batch Print: 152.4 mm (6 in)
On Demand Mode: 304.8 mm (12 in)
Maximum Number of Barcodes
per Label: 32
Minimum Media Opacity: 80%
Maximum Operating Ambient Light:
5,000 lux
Verification Reports: Statistics and
detailed reporting is available through
printer web page, USB thumb drive, Verifier
Integration Interface (VII), or FTP/SFTP

MEDIA SPECIFICATIONS

Media Type: Gap, black mark, tag, hole,
notch, or continuous
Maximum/Minimum Width (Label and
Liner): 114/20 mm (4.5/0.79 in)
Minimum Label Length:
Tear-Off Mode: 3.0 mm (0.12 in)
Self-Strip Mode: 12.7 mm (0.5 in)
Rewind Mode: 6.0 mm (0.24 in)
Thickness (Label and Liner): 3 mil to 10 mil
Configuration: Roll-fed (wound out only)
or fanfold
Label Roll Maximum Diameter: 212.7 mm
(8.375 in)
Label Roll Core: 76 mm (3 in) or 388 mm
(1.5 in)

RIBBON SPECIFICATIONS

Ribbon Spindle: Both ribbon coated side in
and out
Roll Max. Diameter: 80 mm (3.15 in),
approximately 450 m (1,476 ft)
Core ID: 25 mm (1 in)
Maximum/Minimum Width (Ribbon and
Core): 110/51 mm (4.33/2.0 in)
Type: Wax, mid-range, resin
Genuine Honeywell Media:
www.honeywellaidc.com/products/media

INTERFACES

Standard:
USB 2.0 Host (x2)
USB 2.0 Device
Ethernet 10/100 Mbps
RS-232, up to 115.2 KB/s
Bluetooth LE (for Print Set MC only)
Static NFC tag (Bluetooth MAC address)

USER INTERFACE LANGUAGES:

On Color Touch LCD and Web Interface:
English, Italian, French, Spanish,
Portuguese, German, Russian, Chinese
Traditional and Simplified, Korean,
Japanese, Thai

POWER SUPPLY

200 watt rated power supply with PFC
AC Voltage: 100V AC to 240V AC,
50 Hz to 60 Hz

OPERATING ENVIRONMENT

Operating Temperature: +5°C to +40°C
(+41°F to +104°F)
Storage Temperature:
PX940: -20°C to +70°C (-4°F to +158°F)
PX940 Verifier Version: -20°C to +60°C
(-4°F to +140°F)
Humidity: 20% to 85% non-condensing

ACCESSORIES

Verifier Calibration Card (applicable to
PX940 Verifier Version only)
Wireless Board (IEEE 802.11 a/b/g/n/ac)
Parallel Board (IEEE 1284)
Applicator Interface Board
Industrial Interface Board
Peel Off module (factory configurable)
Rewinder module (factory configurable)
1.5 in non-collapsible inner core diameter
on media supply and rewinder take-up
(factory configurable)

SOFTWARE

Printer Command Languages:
Fingerprint (FP)
Direct Protocol (DP)
Intermec Printer Language (IPL) support
on 203 dpi and 300 dpi only
ZSim2 (ZPL-II)
DPL
XML-enabled for SAP® AII and Oracle®
WMS
Applications/Drivers: InterDriver Windows®
printer driver, CUPS driver for Linux,
Honeywell Device Types for SAP, Honeywell
label design and print package
Smart Printing Languages:
Honeywell C# for Printers: Smart
Printing Developer Resource Kit; write
apps with .NET-compatible development
environments; barcode verification
disabled when running C#
Configuration and Device Management
Support: Print Set 5 for printer
configuration; sophisticated web interface
for configuration, upgrades, and 1:1
management; Print Set MC (Android™ and
Apple® iOS) for printer configuration and AR
user guide via Bluetooth LE only

BARCODES/FONTS/GRAPHICS

Barcode Symbologies: All major 1D and 2D
symbologies are supported
Standards Supported: UPC/EAN Shipping
Container, UCC/EAN 128, Serial Shipping
Container, MH10.8 Shipping Label, AIAG
(shipping parts label), OGMARS, POSTNET,
HIBCC, ISBT 128, GM1724, UPS Shipping
Label, Global Transport Label
Fonts: Monotype font engine; non-Latin
fonts available through WTLE
Graphics: Supports PCX, PNG, GIF, and
BMP file formats. Other formats supported
with Label Generation Tools.

REGULATORY APPROVALS

RoHS Compliant, CE (EN55032 Class B*),
FCC Class B*, Energy Star 2.0 Qualified
For more countries compliant, please
contact your local sales office.
*Note: Implemented on printer serial
number starting with 19301B087C.

Features

  • Integrated label verification technology checks and ensures that barcodes are accurate every time; instantly notifies you of pass/fail status and ANSI grade.
  • Extremely precise printing of up to +/-0.2 mm (0.0079 in) virtually eliminates poor-quality, unreadable labels and barcodes.
  • Operational Intelligence software provides predictive analytics and data on printer health to help managers oversee their entire printer fleet and proactively prevent issues, ensuring maximum uptime.
  • Smart printing capability allows users to configure and print without the need for a host computer.
  • Easy to use and maintain, with a color multilingual touchscreen interface and quick side-loading design.
