OVERVIEW

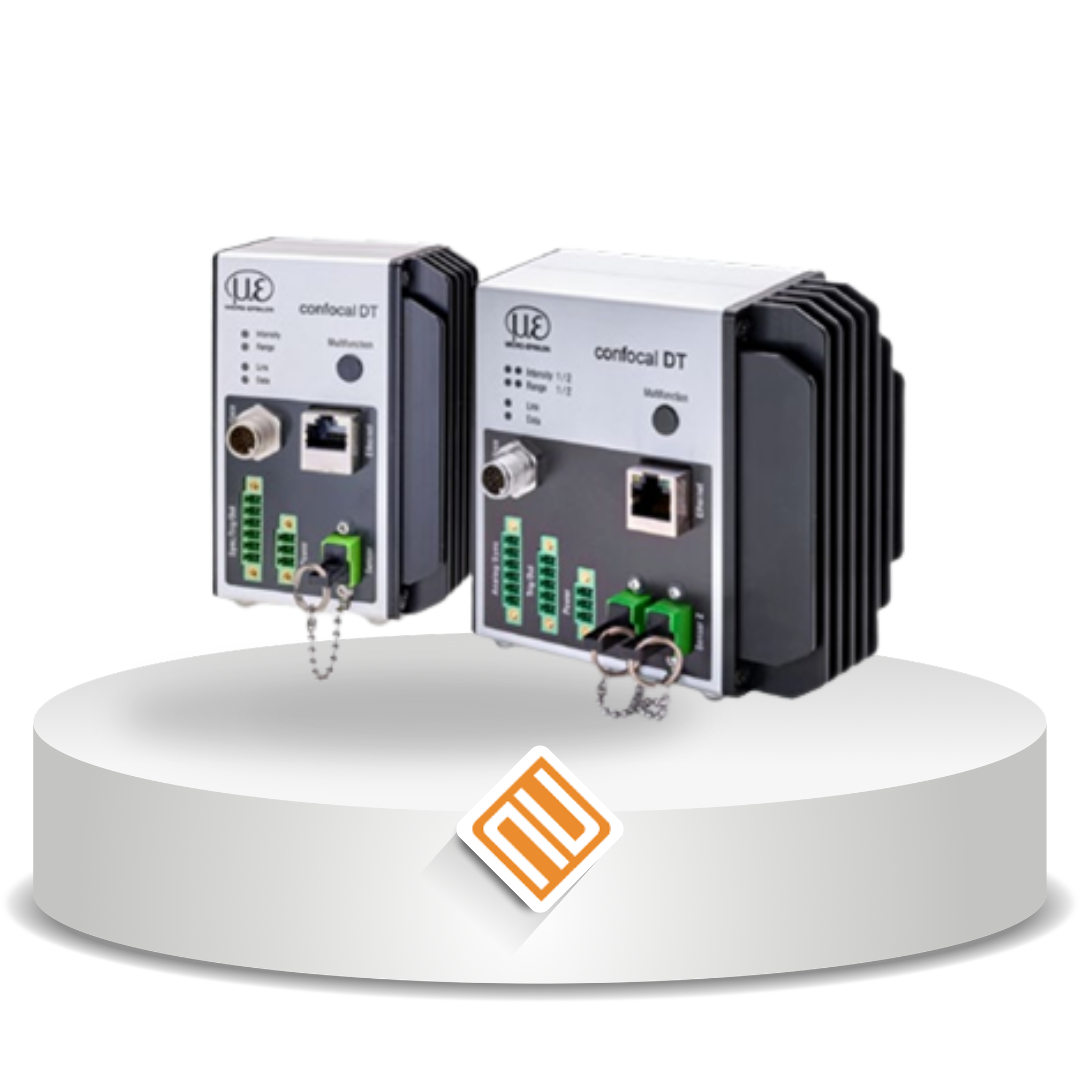

Controller confocal chromatic IFC2416 dan IFC2417 dirancang dengan housing kompak namun menawarkan kecepatan dan presisi maksimal. Dengan measuring rate hingga 25 kHz dan intensitas cahaya tinggi, controller ini mampu memberikan hasil pengukuran stabil dan akurat pada berbagai jenis material, termasuk objek transparan.

FITUR

Kecepatan pengukuran tinggi hingga 25 kHz
Presisi tinggi untuk pengukuran jarak dan ketebalan
Intensitas cahaya tinggi untuk hasil stabil di berbagai permukaan
Desain kompak, mudah diintegrasikan ke sistem industri
Fitur multi-peak untuk pengukuran multi-layer hingga 5 lapisan
Tersedia versi single-channel (IFC2416) dan dual-channel (IFC2417)
Dual-channel mendukung pengukuran sinkron dengan performa penuh
Fungsi kalkulasi internal untuk kombinasi data (misalnya pengukuran ketebalan film baterai)

SPESIFIKASI

Model	IFC2416
Resolution	Ethernet: 1 nm
RS422: 18 bit
Analog: 16 bits (teachable)
Measuring rate	Continuously adjustable from 100 Hz to 25 kHz
Linearity	typ. < ±0.02 % FSO (depends on sensor)
Multi-peak measurement	5 layers
Light source	Internal white LED
No. of characteristic curves	up to 10 characteristic curves for different sensors per channel
Permissible ambient light	30,000 lx
Synchronization	yes
Supply voltage	24 VDC ±10 %
Power consumption	< 9 W (24V)
Signal input	Sync-In / trig-In; 2 encoders (A+, A-, B+, B-, Index) \| 3 encoders (A+, A-, B+, B-)
Digital interface	Ethernet / RS422
Analog output	Current: 4–20 mA; Voltage: 0–5V & 0–10V (16 bit D/A converter)
Digital output	Sync-out; error-out
Connection	Optical: pluggable optical fiber via E2000 socket, length 2–50 m, min. bending radius 30 mm
Electrical: 3-pin supply terminal block; 6-pin I/O terminal block (max. cable length 30 m); 17-pin M12 connector for RS422, analog and encoder; RJ45 connector for Ethernet (max. cable length 100 m)
Mounting	Free-standing, DIN rail mounting
Temperature range	Storage: -20 … +70 °C
Operation: +5 … +50 °C
Shock (DIN EN 60068-2-27)	15 g / 6 ms on XYZ axis, 1000 shocks each
Vibration (DIN EN 60068-2-6)	2 g / 20–500 Hz in XYZ axis, 10 cycles each
Protection class	IP40
Material	Aluminum
Weight	approx. 460 g
Compatibility	compatible with all confocalDT sensors
No. of measurement channels	1
Control and indicator elements	Web interface for setup and settings; Multifunction button: interface selection, adjustable functions and reset to factory settings after 10 s; 4x color LEDs for intensity, range, link and data

Model

IFC2416

Resolution

Ethernet: 1 nm

RS422: 18 bit

Analog: 16 bits (teachable)

Measuring rate

Continuously adjustable from 100 Hz to 25 kHz

Linearity

typ. < ±0.02 % FSO (depends on sensor)

Multi-peak measurement

5 layers

Light source

Internal white LED

No. of characteristic curves

up to 10 characteristic curves for different sensors per channel

Permissible ambient light

30,000 lx

Synchronization

yes

Supply voltage

24 VDC ±10 %

Power consumption

< 9 W (24V)

Signal input

Sync-In / trig-In; 2 encoders (A+, A-, B+, B-, Index) |
3 encoders (A+, A-, B+, B-)

Digital interface

Ethernet / RS422

Analog output

Current: 4–20 mA; Voltage: 0–5V & 0–10V (16 bit D/A converter)

Digital output

Sync-out; error-out

Connection

Optical: pluggable optical fiber via E2000 socket, length 2–50 m, min. bending radius 30 mm

Electrical:
3-pin supply terminal block;
6-pin I/O terminal block (max. cable length 30 m);
17-pin M12 connector for RS422, analog and encoder;
RJ45 connector for Ethernet (max. cable length 100 m)

Mounting

Free-standing, DIN rail mounting

Temperature range

Storage: -20 … +70 °C

Operation: +5 … +50 °C

Shock (DIN EN 60068-2-27)

15 g / 6 ms on XYZ axis, 1000 shocks each

Vibration (DIN EN 60068-2-6)

2 g / 20–500 Hz in XYZ axis, 10 cycles each

Protection class

IP40

Material

Aluminum

Weight

approx. 460 g

Compatibility

compatible with all confocalDT sensors

No. of measurement channels

Control and indicator elements

Web interface for setup and settings;
Multifunction button: interface selection, adjustable functions and reset to factory settings after 10 s;
4x color LEDs for intensity, range, link and data
