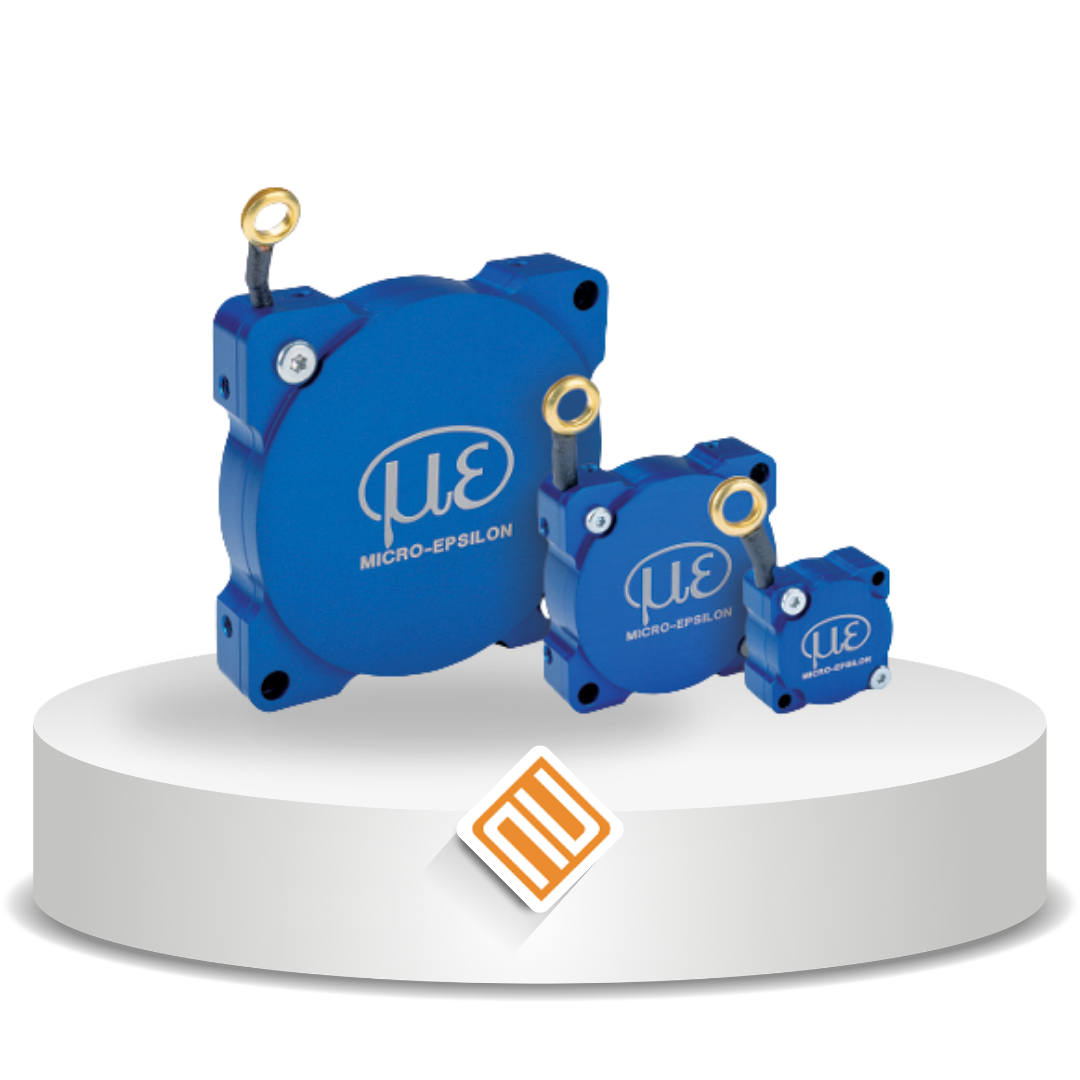

WireSENSOR MT adalah sensor pengukur perpindahan berbasis draw-wire (tali tarik) berukuran mini dari Micro-Epsilon, dirancang khusus untuk aplikasi pengujian dan pengukuran dengan ruang terbatas. Sensor ini menggunakan mekanisme kawat yang ditarik untuk mengukur posisi atau jarak secara presisi.
| Model | WDS-40-MT19-P | WDS-80-MT33-P | WDS-130-MT56-P | |
|---|---|---|---|---|
| Measuring range | 40 mm | 80 mm | 130 mm | |
| Analog output | Potentiometer | |||
| Resolution | towards infinity | |||
| Linearity | ≤ ±0.4% FSO | – | ≤ ±0.32 mm | ≤ ±0.52 mm |
| ≤ ±1% FSO | ≤ ±0.4 mm | – | – | |
| Sensor element | Conductive plastic potentiometer | |||
| Wire extension force (max.) | approx. 2 N | approx. 1.5 N | approx. 1 N | |
| Wire retraction force (min.) | approx. 0.7 N | approx. 0.5 N | approx. 0.3 N | |
| Wire acceleration (max.) | approx. 60 g | approx. 60 g | approx. 15 g | |
| Material | Housing | Aluminum | ||
| Measuring wire | Polyamide-coated stainless steel (ø 0.36) | Polyamide-coated stainless steel (ø 0.45) | ||
| Wire mounting | Eyelet (ø 4.5 mm) | |||
| Installation | Through-holes ø 2.1 mm | Through-holes ø 3.2 mm | Through-holes ø 4.2 mm | |
| Temperature range | Storage | -40 … +85 °C | ||
| Operation | -40 … +85 °C | |||
| Connection | Stranded wires, approx. 6 cm | |||
| Shock (DIN EN 60068-2-27) | 50 g / 10 ms in 1 direction, 1000 shocks | |||
| Vibration (DIN EN 60068-2-6) | 20 g / 20 … 2000 Hz in 3 axes, 10 cycles each | |||
| Protection class | IP50 | |||
| Weight | approx. 8 g | approx. 22 g | approx. 82 g | |
