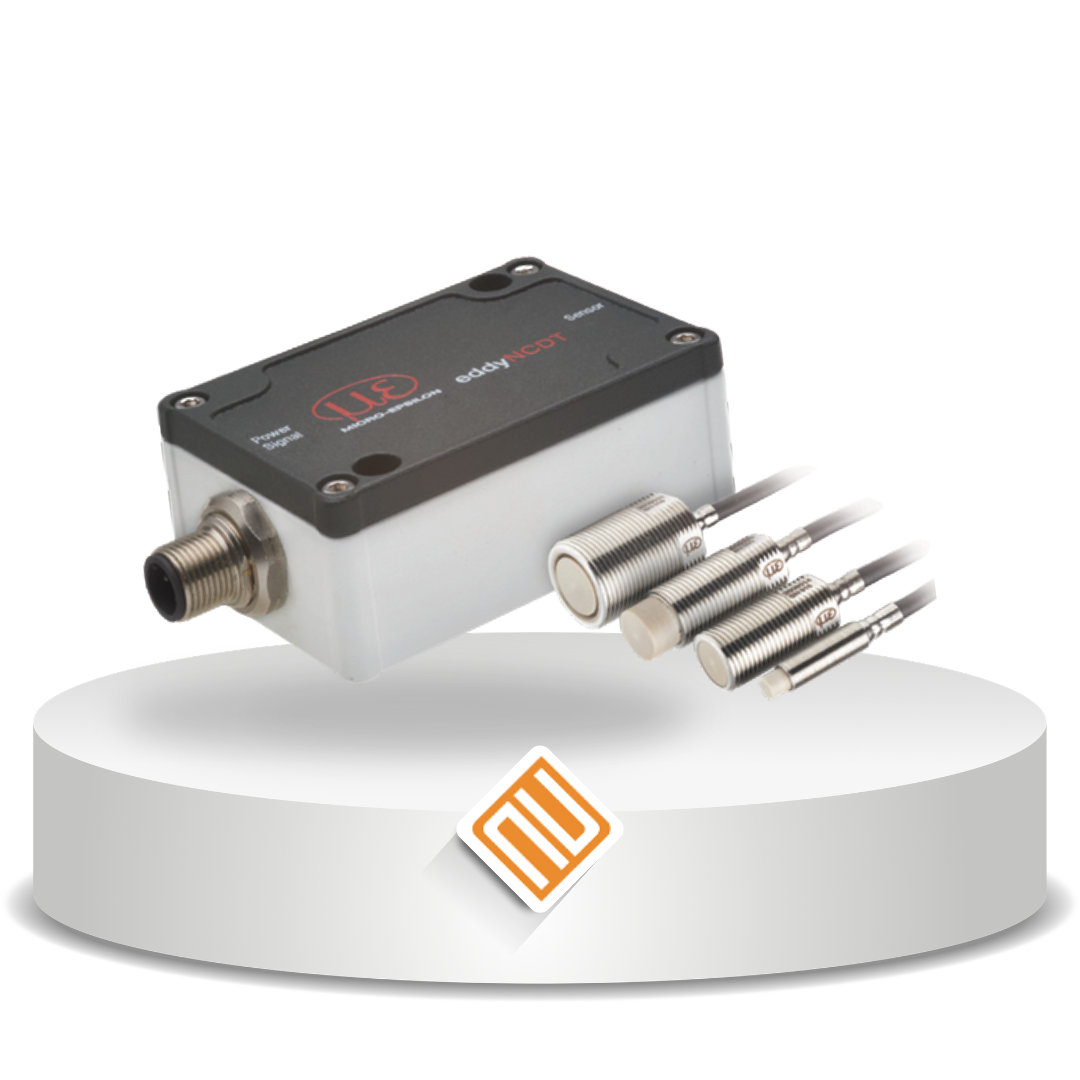

Sistem eddyNCDT 3020 adalah sistem pengukuran eddy current yang presisi tinggi untuk pengukuran posisi dan perpindahan. Dengan controller yang kuat dan desain yang kompak serta robust, sistem ini dirancang untuk aplikasi industri seperti welding, rolling baja, dan die casting.
| Model | DT3020 | |
|---|---|---|
| Resolution | Static | 0.004 % FSO |
| Dynamic | 0.01 % FSO | |
| Frequency response (-3dB) | 9 adjustable stages: 10 Hz … 5 kHz | |
| Measuring rate | Analog output | 80 kSa/s |
| Digital output | 10 kSa/s | |
| Linearity | < ±0.2 % FSO | |
| Temperature stability | < 0.025 % FSO / K | |
| Temperature compensation | 10 … 105 °C | |
| Target material | Steel, aluminum | |
| No. of characteristic curves | 1 | |
| Supply voltage | 12 … 32 VDC | |
| Power consumption | < 1.7 W | |
| Digital interface | RS485 / USB / Ethernet / EtherCAT / PROFINET / EtherNet/IP | |
| Analog output | 4 … 20 mA (max. 500 Ω load, scalable 0 … 20 mA) | |
| Digital outputs | Selectable: NPN, PNP, push-pull | |
| Connection | Sensor: triaxial socket Supply/signal: 8-pole M12 connector |
|
| Mounting | Through-bores (Ø 4.4 mm) | |
| Temperature range | Storage | -20 … 105 °C (non-condensing) |
| Operation | -20 … 105 °C (non-condensing) | |
| Shock | 15 g / 6 ms in 3 axes, 1000 shocks | |
| Vibration | 5 g / 10 … 500 Hz | |
| Protection class | IP67 (plugged) | |
| Material | Aluminum die-cast | |
| Weight | approx. 190 g | |
| Control & indicator elements | Configurable via sensorTOOL software: 3-point linearization, scaling, filter & averaging, interface selection |
|
