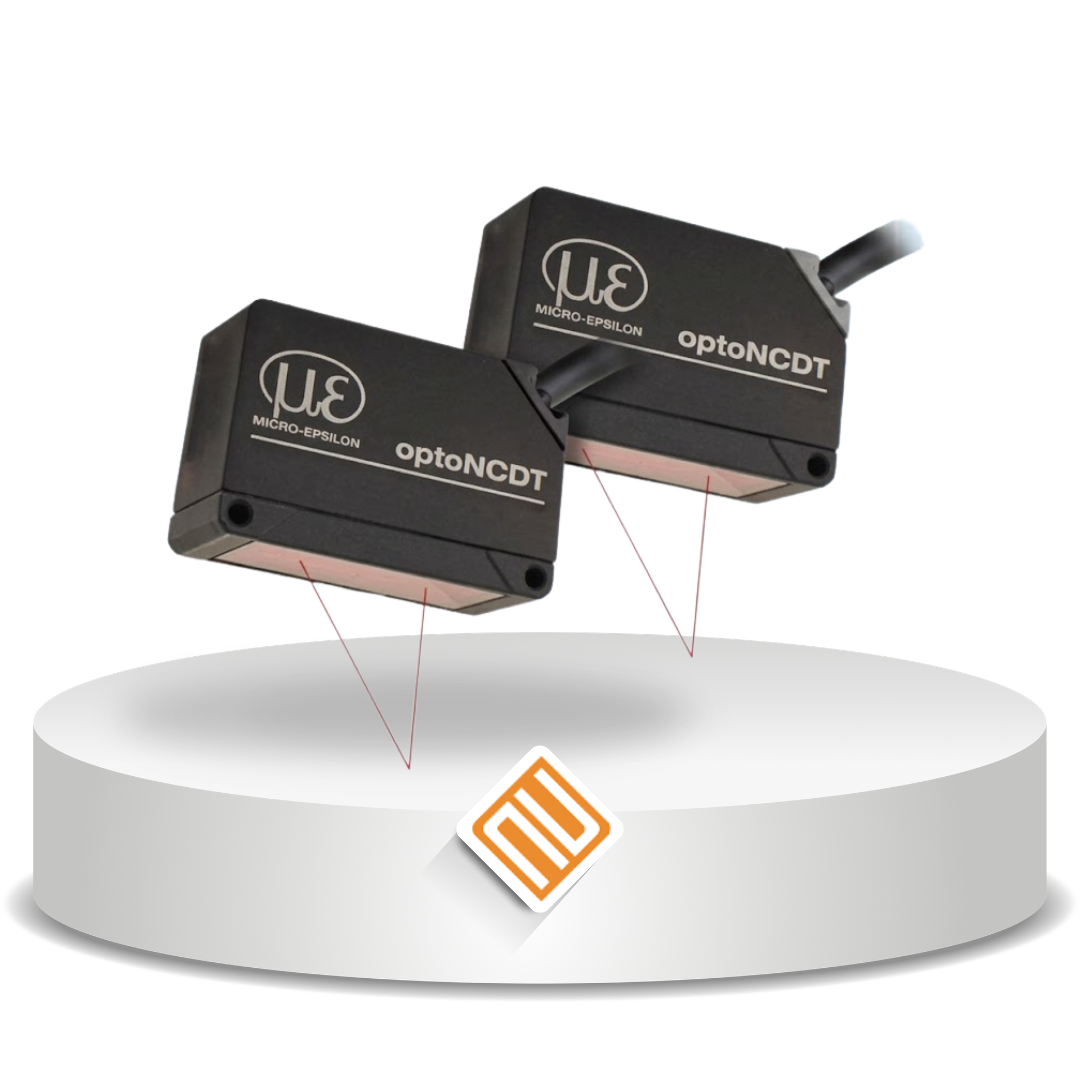

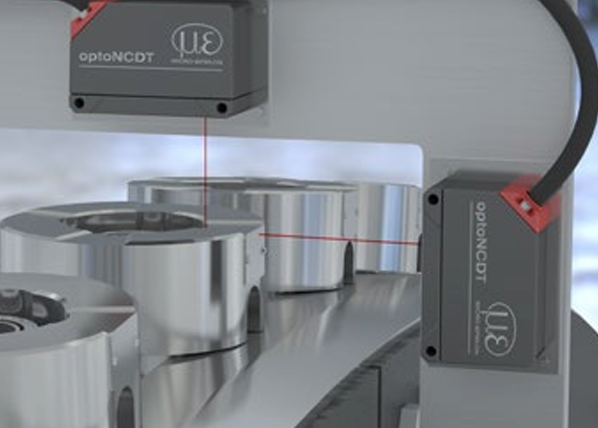

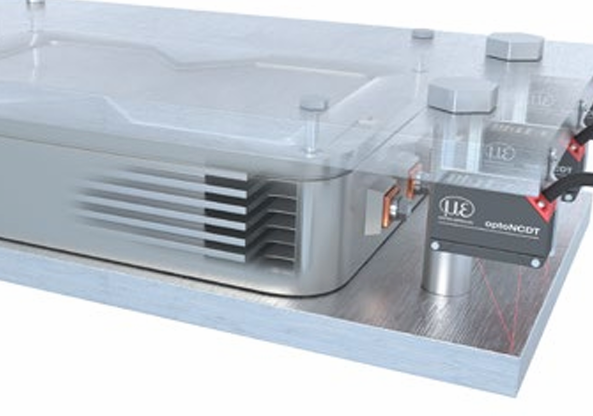

Seri optoNCDT 1×20 merupakan sensor laser “best in class” yang menggabungkan desain kompak, kecepatan tinggi, dan presisi unggul. Sensor ini dirancang untuk pengukuran displacement, jarak, dan posisi secara akurat pada berbagai aplikasi otomasi seperti machine building, 3D printing, dan robotika.
| Model | ILD1420-xx |
| Measuring rate | 6 adjustable stages: 8 kHz / 4 kHz / 2 kHz / 1 kHz / 0.5 kHz / 0.25 kHz |
| Supply voltage | 24 V (11.2 … 30 V) DC, P < 2 W |
| Power consumption | < 2 W (24 V) |
| Signal input | 1 x HTL laser on/off; 1 x HTL multifunction input (trigger in, zero setting, teach) |
| Digital interface | RS422 (16 bit) / EtherCAT / PROFINET / EtherNet/IP |
| Analog output | 4 … 20 mA / 1 … 5 V with PCF1420-3/U cable (16 bit, scalable within measuring range) |
| Switching output | 1 x error output: npn, pnp, push pull, push-pull negative |
| Connection | Integrated cable 3 m (open ends), min. bending radius 30 mm (fixed installation) or integrated pigtail 0.3 m with 12-pin M12 plug |
| Installation | Screw connection via two mounting holes |
| Temperature range (Storage) | -20 … +70 °C (non-condensing) |
| Temperature range (Operation) | 0 … +50 °C (non-condensing) |
| Shock (DIN EN 60068-2-27) | 15 g / 6 ms in 3 axes, 1000 shocks each |
| Vibration (DIN EN 60068-2-6) | 20 g / 20 … 500 Hz in 3 axes, 2 directions and 10 cycles each |
| Protection class (DIN EN 60529) | IP67 |
| Material | Aluminum housing |
| Weight | Approx. 70 g (incl. pigtail), approx. 150 g (incl. cable) |
| Control and indicator elements | Select button: zero, teach, factory settings; web interface for setup: selectable presets, peak selection, video signal, freely selectable averaging, data reduction, setup management; 2 x color LEDs for power/status |
