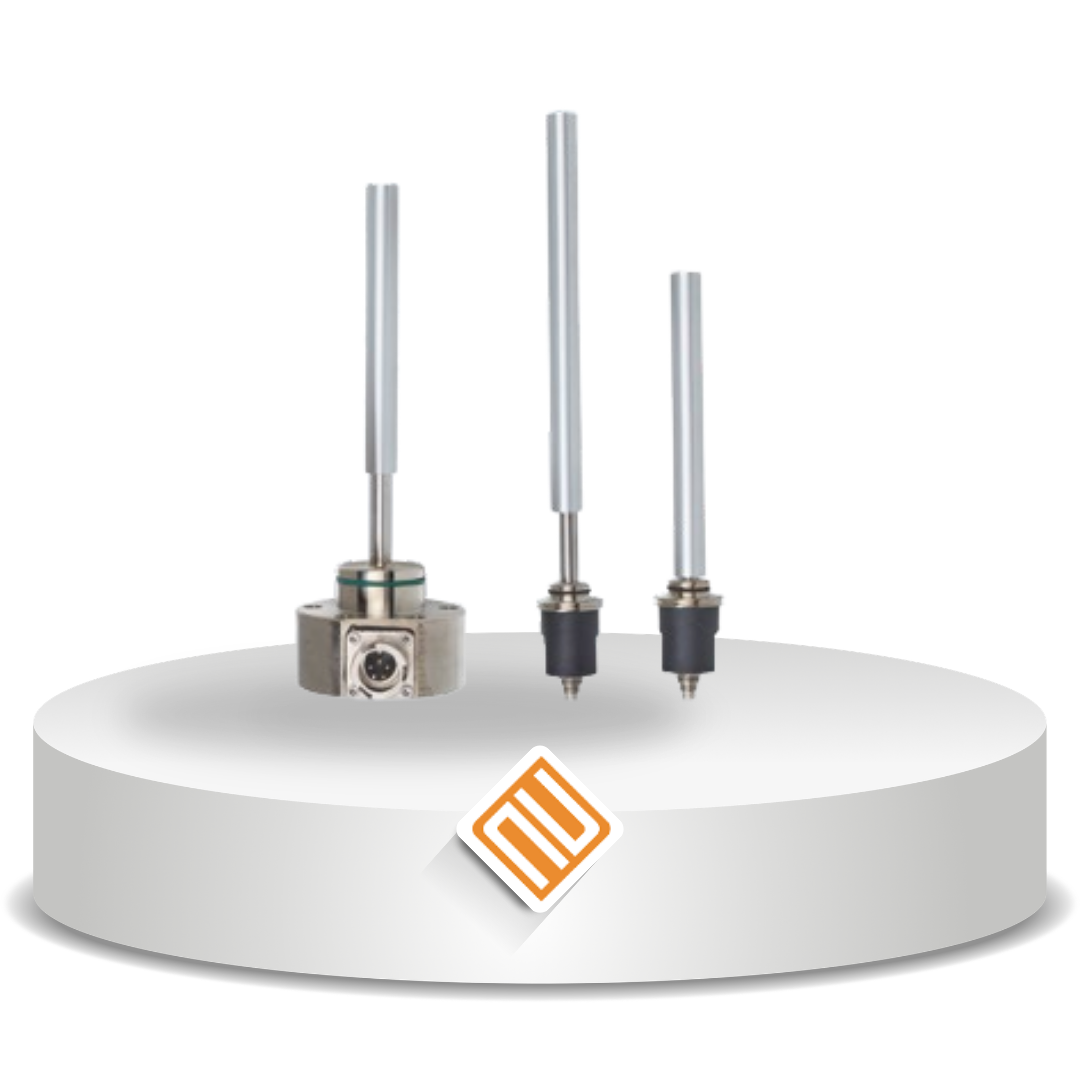

InduSENSOR EDS adalah sensor long-stroke berbasis eddy current yang dirancang untuk pengukuran posisi dan displacement pada silinder hidrolik dan pneumatik. Dengan desain kokoh dan pengukuran non-kontak, sensor ini sangat andal untuk lingkungan industri yang berat.
| Model | EDS-75 | 100 mm | 160 mm | 200 mm | 250 mm | 300 mm | 400 mm | 500 mm | 630 mm |
|---|---|---|---|---|---|---|---|---|---|
| Series | S | S, F | S, F | S, F | S, F | S, F | S, F | S | S, F |
| Measuring range | 75 mm | 100 mm | 160 mm | 200 mm | 250 mm | 300 mm | 400 mm | 500 mm | 630 mm |
| Resolution | 0.038 mm | 0.05 mm | 0.08 mm | 0.1 mm | 0.125 mm | 0.15 mm | 0.2 mm | 0.25 mm | 0.315 mm |
| Frequency response (-3dB) | 150 Hz | ||||||||
| Measuring rate | 600 Sa/s | 500 Sa/s | |||||||
| Linearity (≤ ±0.3% FSO) | ≤ ±0.23 mm | ≤ ±0.3 mm | ≤ ±0.48 mm | ≤ ±0.6 mm | ≤ ±0.75 mm | ≤ ±0.9 mm | ≤ ±1.2 mm | ≤ ±1.5 mm | ≤ ±1.89 mm |
| Temperature stability | ≤ 200 ppm FSO/K | ||||||||
| Supply voltage | 18 … 30 VDC | ||||||||
| Max. current consumption | 40 mA | ||||||||
| Analog output | 4 … 20 mA (load 500 Ohm) | ||||||||
| Connection | S series: 7-pin M9 screw/plug connection (Binder); axial, radial on request | ||||||||
| F series: 5-pin bayonet screw plug connection; radial output | |||||||||
| Temperature range | Storage: -40 … +100 °C | ||||||||
| Operation: -40 … +85 °C | |||||||||
| Pressure resistance | 450 bar (front) | ||||||||
| Shock | 40 g / 6 ms in 3 axes, 1000 shocks each; radial & axial tests | ||||||||
| Vibration | ±2.5 mm / 5 … 44 Hz, 10 cycles each; ±23 g / 44 … 500 Hz | ||||||||
| Protection class | IP65 (F series) / IP67 (S series) | ||||||||
| Material | Stainless steel (housing); aluminum (measuring tube) | ||||||||
