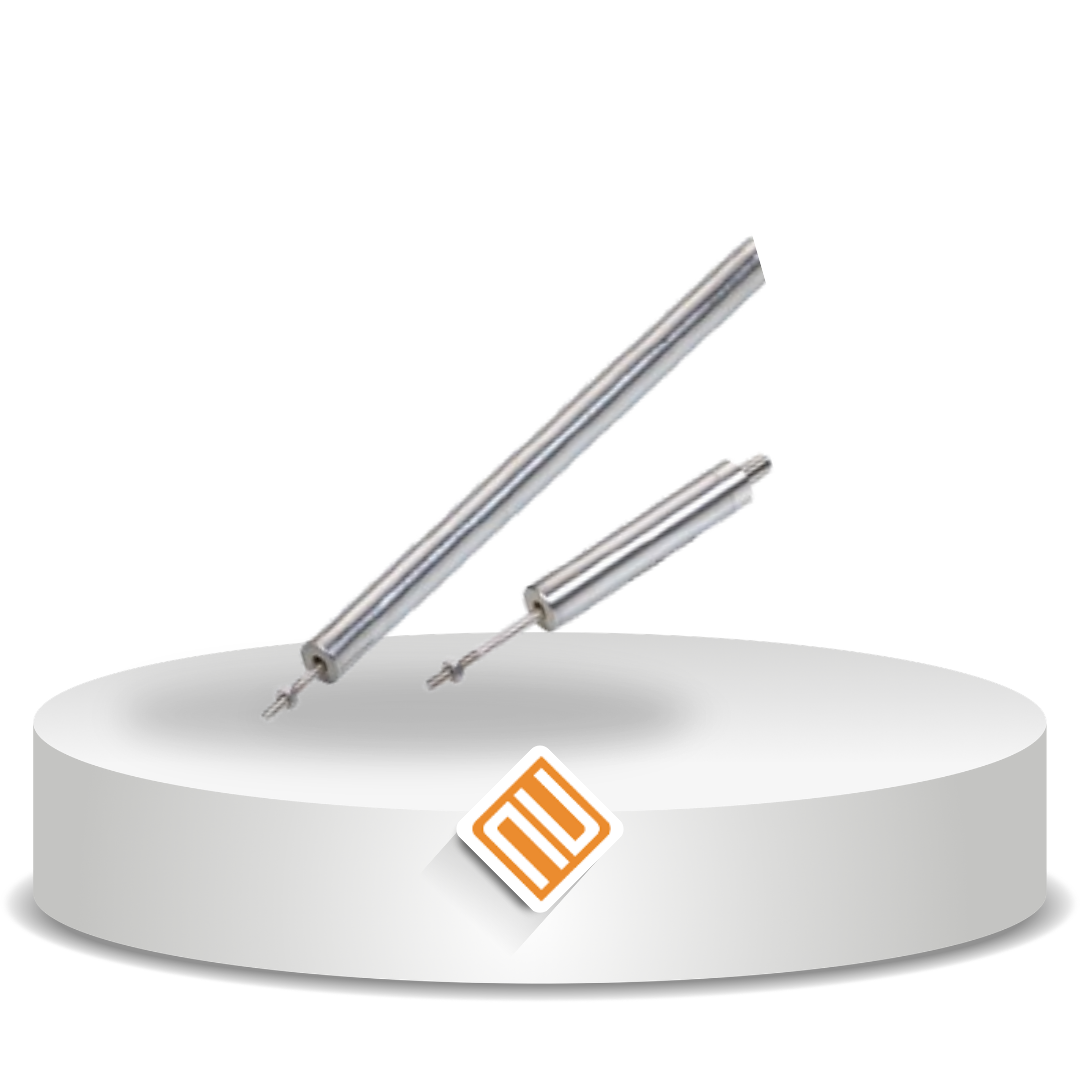

LDR adalah sensor displacement linear dengan desain sangat kompak dan diameter kecil, sehingga ideal untuk pemasangan di ruang terbatas. Dengan konfigurasi sederhana (hanya tiga koneksi), sensor ini mudah diintegrasikan dan cocok untuk aplikasi industri dengan kebutuhan pengukuran cepat.
| Model | LDR-10 | LDR-25 | LDR-50 |
|---|---|---|---|
| Series | SA, CA | SA, CA | SA, CA |
| Measuring range | 10 mm | 25 mm | 50 mm |
| Linearity | standard ≤ ±50 µm | ≤ ±125 µm | ≤ ±500 µm |
| linearized ≤ ±20 µm | ≤ ±50 µm | ≤ ±100 µm | |
| Temperature stability | Zero ≤ 30 ppm FSO/K | ≤ 30 ppm FSO/K | ≤ 80 ppm FSO/K |
| Max. temp. error ≤ 100 ppm FSO/K | ≤ 100 ppm FSO/K | ≤ 150 ppm FSO/K | |
| Sensitivity | 51 mV/mm/V | 21 mV/mm/V | 5.5 mV/mm/V |
| Excitation frequency | 21 kHz | 13 kHz | 9 kHz |
| Excitation voltage | 550 mV | ||
| Connection | CA: integrated cable (2 m) with open ends; axial cable outlet; cable diameter 1.8 mm; min. bending radius 10 mm |
||
| SA: 3-pin connector; axial output | |||
| Temperature range | Storage: SA -40…+80°C; CA -40…+160°C | ||
| Operation: SA -15…+80°C; CA -40…+160°C | |||
| Pressure resistance | Atmospheric pressure | ||
| Shock | 40 g / 6 ms in 3 axes, 1000 shocks each | ||
| Vibration | ±1.5 mm / 10…58 Hz, ±20 g / 58…500 Hz | ||
| Protection class | IP67 (plugged) | ||
| Material | Stainless steel (housing) | ||
| Weight | Sensor: approx. 9 g (SA); 24 g (CA) | approx. 14 g (SA); 28 g (CA) | approx. 23 g (SA); 37 g (CA) |
| Plunger: approx. 1.5 g | approx. 2.2 g | approx. 3.5 g | |
| Compatibility | MSC7401, MSC7802, MSC7602 | ||
