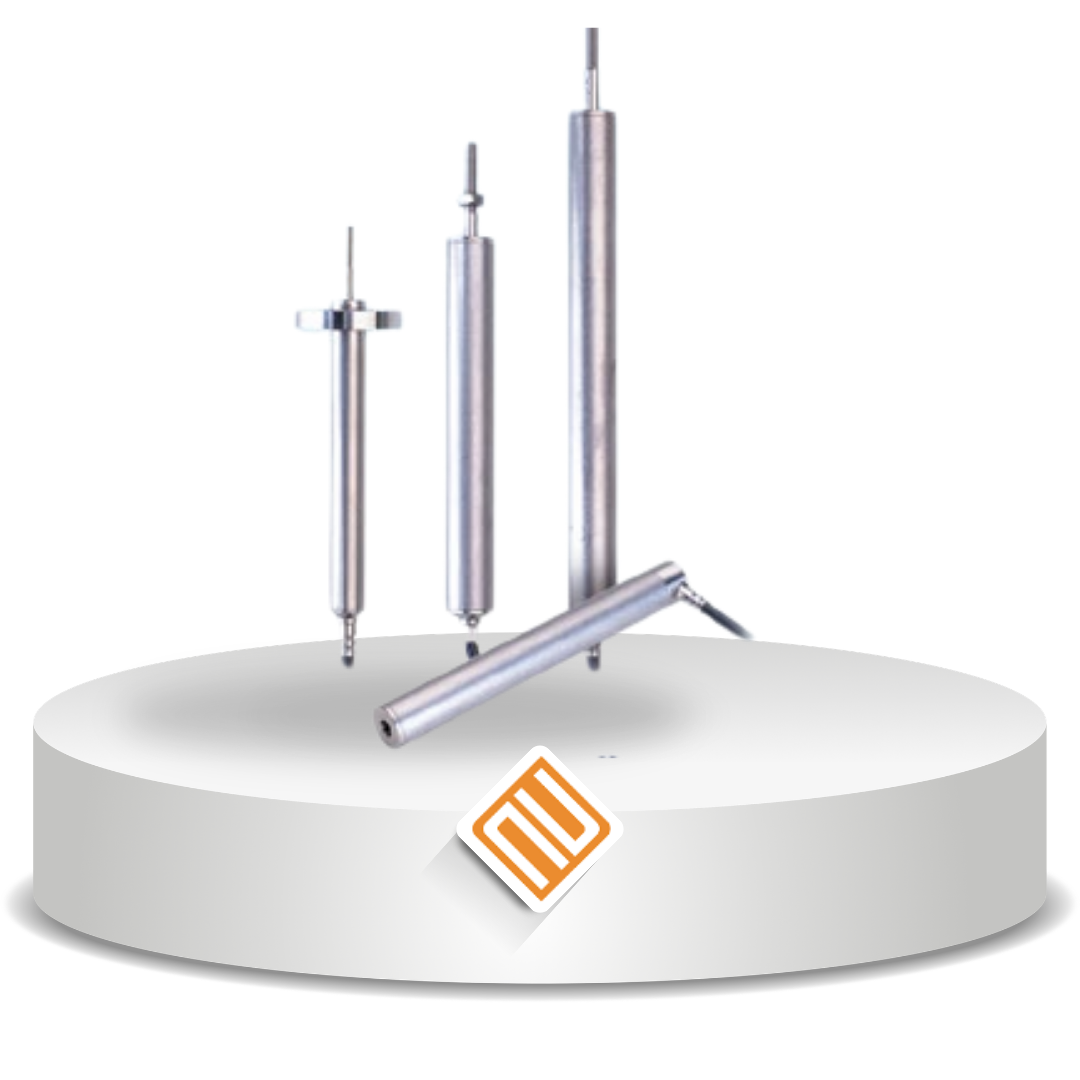

Jual InduSENSOR DTA (LVDT)

OVERVIEW

LVDT displacement sensor adalah sensor pengukuran posisi yang menggunakan plunger bergerak bebas di dalam housing untuk mendeteksi perpindahan objek. Dengan prinsip pengukuran non-kontak, sensor ini bebas keausan dan sangat cocok untuk aplikasi monitoring gerakan dan posisi pada mesin, kendaraan, dan sistem industri.

FITUR

Pengukuran non-kontak (wear-free) untuk keandalan jangka panjang
Mengukur berbagai parameter: posisi, displacement, stroke, defleksi, dll
Plunger dengan koneksi ulir untuk transfer gerakan yang akurat
Resolusi sangat tinggi (dibatasi oleh noise controller)
Stabilitas titik nol yang sangat baik
Cocok untuk aplikasi industri, mesin, dan otomotif
Performa konsisten untuk monitoring dan kontrol presisi tinggi

SPESIFIKASI

Model	DTA-1DX	DTA-3DX	DTA-5DX	DTA-10DX	DTA-15DX	DTA-25DX
Measuring range	±1 mm	±3 mm	±5 mm	±10 mm	±15 mm	±25 mm
Linearity (≤ ±0.4% FSO)	–	–	–	≤ ±80 µm	≤ ±120 µm	≤ ±200 µm
Linearity (≤ ±0.3% FSO)	≤ ±6 µm	≤ ±18 µm	≤ ±30 µm	–	–	–
Linearity (≤ ±0.2% FSO)	–	–	–	≤ ±40 µm	≤ ±60 µm	≤ ±100 µm
Linearity (≤ ±0.15% FSO)	≤ ±3 µm	≤ ±9 µm	≤ ±15 µm	–	–	–
Linearity (≤ ±0.05% FSO)	≤ ±1 µm	≤ ±3 µm	≤ ±5 µm	≤ ±10 µm	≤ ±15 µm	≤ ±25 µm
Temperature stability (Zero)	≤ 70 ppm FSO/K
Max. temp. error	≤ 150 ppm FSO/K
Sensitivity	127 mV/mm/V	81 mV/mm/V	55 mV/mm/V	45 mV/mm/V	45 mV/mm/V	29 mV/mm/V
Excitation frequency	5 kHz	5 kHz	5 kHz	2 kHz	1 kHz	1 kHz
Excitation voltage	550 mV
Connection	Integrated cable 3 m with open ends; axial cable outlet; drag chain suitable; cable diameter 3.1 mm; min. bending radius: fixed installation 25 mm, moved 38 mm, drag chain 47 mm
Temperature range (Storage)	-20 … +90 °C
Temperature range (Operation)	(-40)…-20 … +90 … (105) °C
Pressure resistance	5 bar (front)
Shock	40 g / 6 ms in 3 axes, 1000 shocks each
Vibration	±1.5 mm / 10…58 Hz, 20 g / 58…500 Hz
Protection class	IP67
Material	Stainless steel (housing), PVC-/TPE-E (cable)
Weight (Sensor CA)	≈ 80 g	≈ 85 g	≈ 90 g	≈ 95 g	≈ 135 g	≈ 145 g
Weight (Plunger)	≈ 1 g	≈ 2 g	≈ 2 g	≈ 3 g	≈ 12 g	≈ 16 g
Compatibility	MSC7401, MSC7802, MSC7602

Model

DTA-1DX

DTA-3DX

DTA-5DX

DTA-10DX

DTA-15DX

DTA-25DX

Measuring range

±1 mm

±3 mm

±5 mm

±10 mm

±15 mm

±25 mm

Linearity (≤ ±0.4% FSO)

–

≤ ±80 µm

≤ ±120 µm

≤ ±200 µm

Linearity (≤ ±0.3% FSO)

≤ ±6 µm

≤ ±18 µm

≤ ±30 µm

–

Linearity (≤ ±0.2% FSO)

–

≤ ±40 µm

≤ ±60 µm

≤ ±100 µm

Linearity (≤ ±0.15% FSO)

≤ ±3 µm

≤ ±9 µm

≤ ±15 µm

–

Linearity (≤ ±0.05% FSO)

≤ ±1 µm

≤ ±3 µm

≤ ±5 µm

≤ ±10 µm

≤ ±15 µm

≤ ±25 µm

Temperature stability (Zero)

≤ 70 ppm FSO/K

Max. temp. error

≤ 150 ppm FSO/K

Sensitivity

127 mV/mm/V

81 mV/mm/V

55 mV/mm/V

45 mV/mm/V

29 mV/mm/V

Excitation frequency

5 kHz

2 kHz

1 kHz

Excitation voltage

550 mV

Connection

Integrated cable 3 m with open ends; axial cable outlet; drag chain suitable;
cable diameter 3.1 mm; min. bending radius: fixed installation 25 mm,
moved 38 mm, drag chain 47 mm

Temperature range (Storage)

-20 … +90 °C

Temperature range (Operation)

(-40)…-20 … +90 … (105) °C

Pressure resistance

5 bar (front)

Shock

40 g / 6 ms in 3 axes, 1000 shocks each

Vibration

±1.5 mm / 10…58 Hz, 20 g / 58…500 Hz

Protection class

IP67

Material

Stainless steel (housing), PVC-/TPE-E (cable)

Weight (Sensor CA)

≈ 80 g

≈ 85 g

≈ 90 g

≈ 95 g

≈ 135 g

≈ 145 g

Weight (Plunger)

≈ 1 g

≈ 2 g

≈ 3 g

≈ 12 g

≈ 16 g

Compatibility

MSC7401, MSC7802, MSC7602
