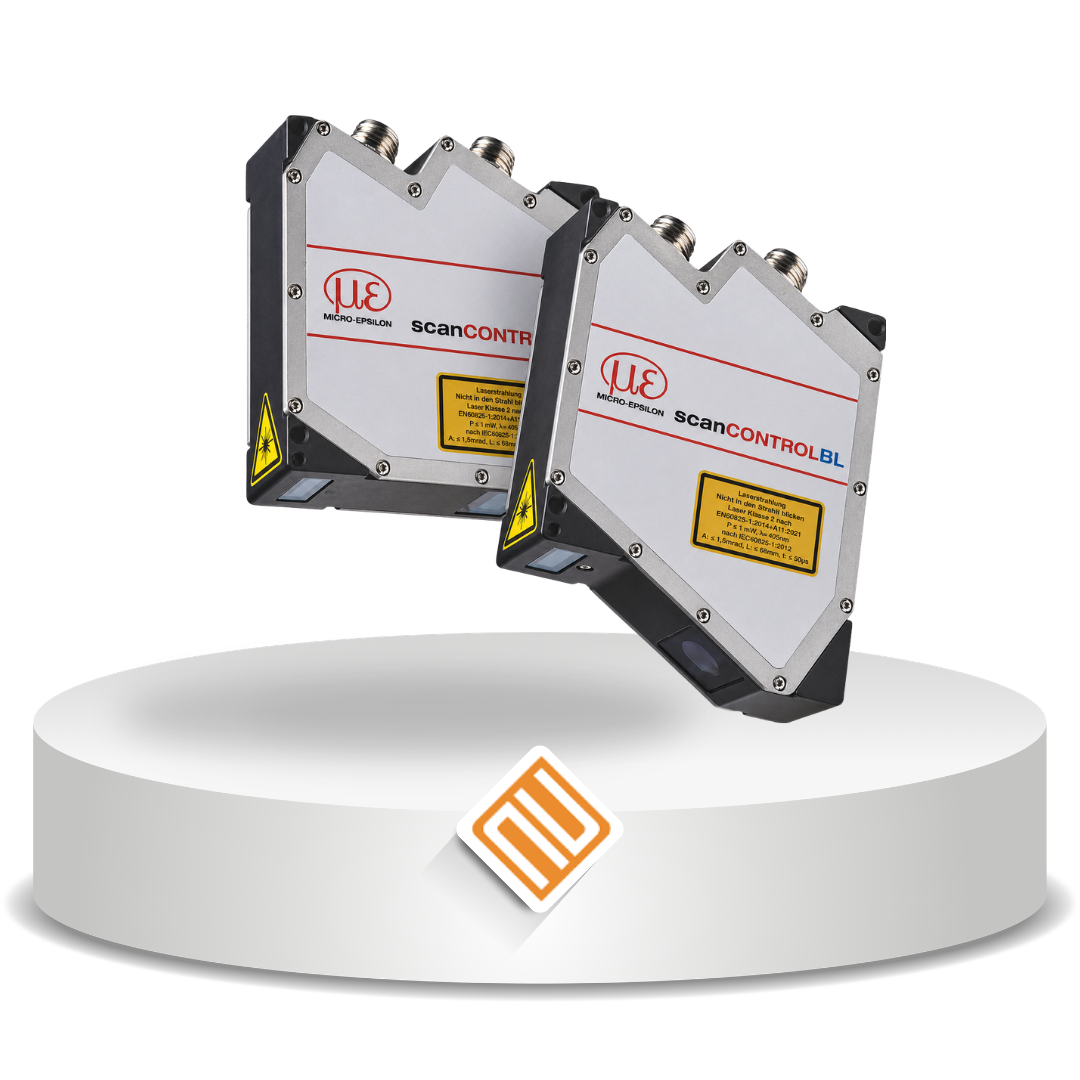

ScanCONTROL 29×0 adalah laser scanner kompak yang dirancang untuk pengukuran presisi tinggi di berbagai aplikasi industri. Dengan ukuran kecil namun performa tinggi, sensor ini ideal untuk aplikasi statis maupun dinamis, termasuk integrasi pada sistem robotik.
| Model | LLT29xx-10-BL | LLT29xx-25 | LLT29xx-50 | LLT29xx-100 | |
|---|---|---|---|---|---|
| Measuring range (z-axis) | Start | 52.5 mm | 53.5 mm | 70 mm | 190 mm |
| Mid | 56.5 mm | 66 mm | 95 mm | 240 mm | |
| End | 60.5 mm | 78.5 mm | 120 mm | 290 mm | |
| Height | 8 mm | 25 mm | 50 mm | 100 mm | |
| Extended measuring range (z-axis) | Start | – | 53 mm | 65 mm | 125 mm |
| End | – | 79 mm | 125 mm | 390 mm | |
| Line linearity (z-axis) | ±0.0125% | ±0.008% | ±0.008% | ±0.012% | |
| Measuring range (x-axis) | Start | 9.4 mm | 23.4 mm | 42 mm | 83.1 mm |
| Mid | 10 mm | 25 mm | 50 mm | 100 mm | |
| End | 10.7 mm | 29.1 mm | 58 mm | 120.8 mm | |
| Extended measuring range (x-axis) | Start | – | 23.2 mm | 40 mm | 58.5 mm |
| End | – | 29.3 mm | 60 mm | 143.5 mm | |
| Resolution (x-axis) | 1,280 points/profile | ||||
| Profile frequency | Standard | up to 300 Hz | |||
| High speed | up to 2,000 Hz | ||||
| Interfaces | Ethernet GigE Vision | Output of measurement values, sensor control, profile data transmission | |||
| Digital inputs | Mode switching, Encoder (counter), Trigger | ||||
| RS422 | Output of measurement values, sensor control, trigger, synchronization | ||||
| Output of measurement values | Ethernet (UDP / Modbus TCP), RS422 (ASCII / Modbus RTU), Analog, switch signal, PROFINET, EtherCAT, EtherNet/IP |
||||
| Control & indicator elements | 3x color LEDs (laser, data, error) | ||||
| Light source | Red Laser | ≤ 8 mW / ≤ 20 mW (658 nm) | |||
| Option: class 3B, 658 nm | |||||
| Blue Laser | ≤ 8 mW (405 nm) | ||||
| Laser switch-off via software / hardware | |||||
| Aperture angle | 10° | 20° | 25° | 25° | |
| Permissible ambient light | 10,000 lx | ||||
| Protection class | IP65 | ||||
| Vibration | 2 g / 20–500 Hz | ||||
| Shock | 15 g / 6 ms | ||||
| Temperature range | Storage | -20 … +70 °C | |||
| Operation | 0 … +45 °C | ||||
| Weight | 440 g | 380 g (without cable) | |||
| Supply voltage | 11 … 30 VDC, 24 V nominal, PoE available | ||||
