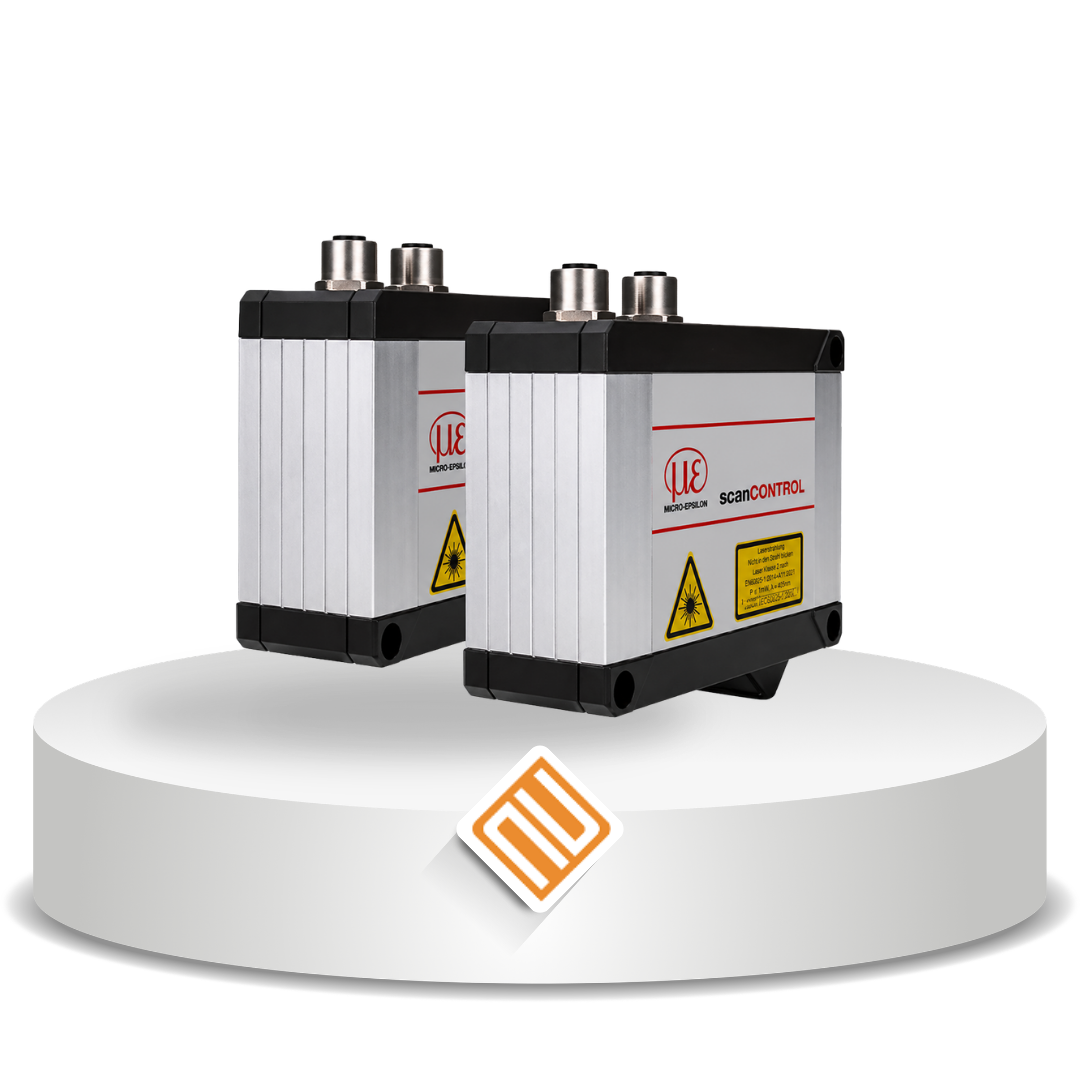

ScanCONTROL 30×2 (LLT30x2) adalah laser profile scanner yang dirancang untuk pengukuran profil 2D/3D dengan presisi tinggi pada aplikasi statis maupun dinamis. Dengan kecepatan tinggi, resolusi baik, dan fleksibilitas penggunaan, sensor ini sangat cocok untuk otomasi industri dan aplikasi robotik.
| Model | LLT30x2-25 | LLT30x2-50 | LLT30x2-100 | LLT30x2-200 | |
|---|---|---|---|---|---|
| Measuring range (z-axis) | Start | 77.5 mm | 105 mm | 200 mm | 200 mm |
| Mid | 85 mm | 125 mm | 270 mm | 310 mm | |
| End | 92.5 mm | 145 mm | 340 mm | 420 mm | |
| Height | 15 mm | 40 mm | 140 mm | 220 mm | |
| Extended measuring range (z-axis) | Start | – | – | 190 mm | 160 mm |
| End | – | – | 360 mm | 460 mm | |
| Line linearity (z-axis) | ±0.013% | ±0.01% | ±0.007% | ±0.014% | |
| Measuring range (x-axis) | Start | 23 mm | 43.3 mm | 75.6 mm | 130 mm |
| Mid | 25 mm | 50 mm | 100 mm | 200 mm | |
| End | 26.8 mm | 56.5 mm | 124.4 mm | 270 mm | |
| Extended measuring range (x-axis) | Start | – | – | 72.1 mm | 100 mm |
| End | – | – | 131.1 mm | 290 mm | |
| Resolution (x-axis) | 1,024 points/profile | ||||
| Profile frequency | up to 10,000 Hz | ||||
| Interfaces | Ethernet GigE Vision | Output of measurement values, sensor control, profile data transmission | |||
| Digital inputs | Mode switching, Encoder (counter), Trigger | ||||
| RS422 | Output of measurement values, sensor control, trigger, synchronization | ||||
| Output of measurement values | Ethernet (UDP / Modbus TCP), RS422 (ASCII / Modbus RTU), Analog, switch signal, PROFINET, EtherCAT, EtherNet/IP |
||||
| Control & indicator elements | 3x color LEDs (laser, data, error) | ||||
| Light source | Red Laser | ≤ 10 mW (standard class 2M, 658 nm) | |||
| Option: class 3R, 660 nm | |||||
| Blue Laser | ≤ 10 mW (standard class 2M, 405 nm) | ||||
| Laser switch-off via software / hardware | |||||
| Aperture angle | 23° | 28° | 30° | 45° | |
| Permissible ambient light | 10,000 lx | ||||
| Protection class | IP67 | ||||
| Vibration | 2 g / 20–500 Hz | ||||
| Shock | 15 g / 6 ms | ||||
| Temperature range | Storage | -20 … +70 °C | |||
| Operation | 0 … +45 °C | ||||
| Weight | 415 g (without cable) | ||||
| Supply voltage | 11 … 30 VDC, 24 V nominal, PoE available | ||||
