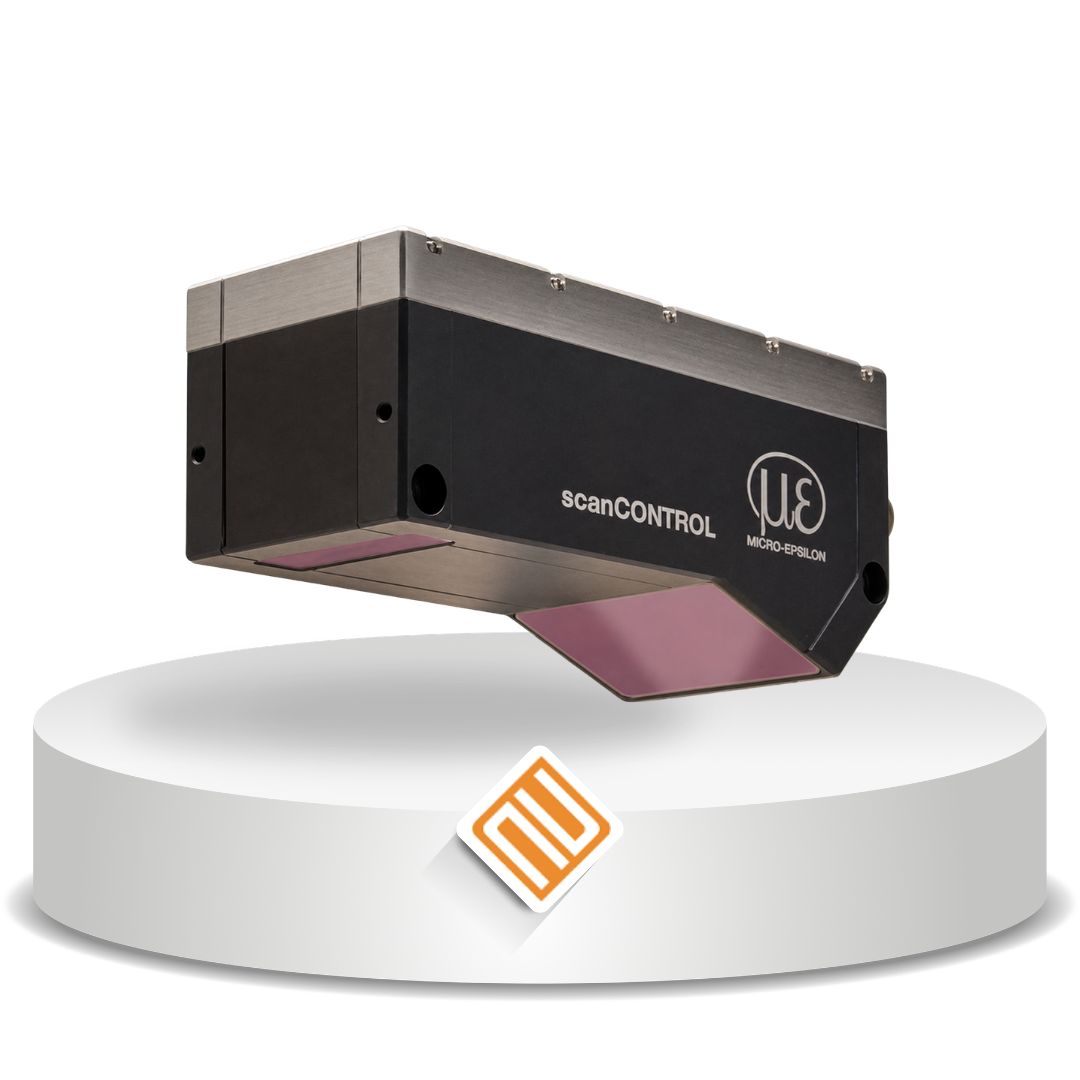

ScanCONTROL 8500 adalah generasi terbaru laser scanner 3D industri dengan performa sangat tinggi. Sensor ini mampu melakukan pemrosesan data 3D langsung di dalam sensor head, sehingga mempercepat analisis dan mengurangi kebutuhan komputasi eksternal. Dengan resolusi tinggi dan kecepatan pemrosesan luar biasa, sensor ini ideal untuk aplikasi inspeksi presisi dan otomatisasi industri.
| Model | LLT8500-25 | LLT8500-50 | LLT8500-100 | |
|---|---|---|---|---|
| Measuring range (z-axis) | Start | 74.5 mm | 80 mm | 110 mm |
| Mid | 82.5 mm | 97 mm | 157 mm | |
| End | 90.5 mm | 115 mm | 205 mm | |
| Height | 16 mm | 35 mm | 95 mm | |
| Linearity (z-axis) | 0.005% | 0.005% | 0.005% | |
| Measuring range (x-axis) | Start | 24.2 mm | 46.2 mm | 84 mm |
| Mid | 25 mm | 50 mm | 100 mm | |
| End | 25.8 mm | 53 mm | 115 mm | |
| Resolution (x-axis) | 6 µm | 12 µm | 24 µm | |
| Points per profile | 4,224 points/profile | |||
| Profile frequency | up to 10,000 Hz | |||
| Interfaces | Ethernet GigE Vision | Output of measurement values, sensor control | ||
| Digital inputs | Trigger, Encoder, Mode switching | |||
| I/O Sync | Trigger, Encoder, Switch output, Synchronization | |||
| Output of measurement values | Ethernet (UDP / Modbus TCP), PROFINET, EtherCAT, EtherNet/IP, switch signal | |||
| Control & indicator elements | 3x color LEDs (laser, data, error), 2x fieldbus | |||
| Light source | Green laser | ≤ 20 mW | ≤ 20 mW | ≤ 20 mW |
| Laser class 2M, semiconductor laser 520 nm | ||||
| Laser switch-off | via software and hardware switch-off | |||
| Aperture angle | 24° | 29° | 42° | |
| Protection class | IP67 | |||
| Vibration | 2g / 20 … 500 Hz | |||
| Shock | 15g / 6 ms | |||
| Temperature range | Storage | -20 … +70 °C | ||
| Operation | 0 … +45 °C | |||
| Weight | approx. 560 g / 720 g (with passive cooling) | |||
| Supply voltage | 11 … 30 VDC (nominal 24 V), 15 W, Power over Ethernet (PoE) available | |||
