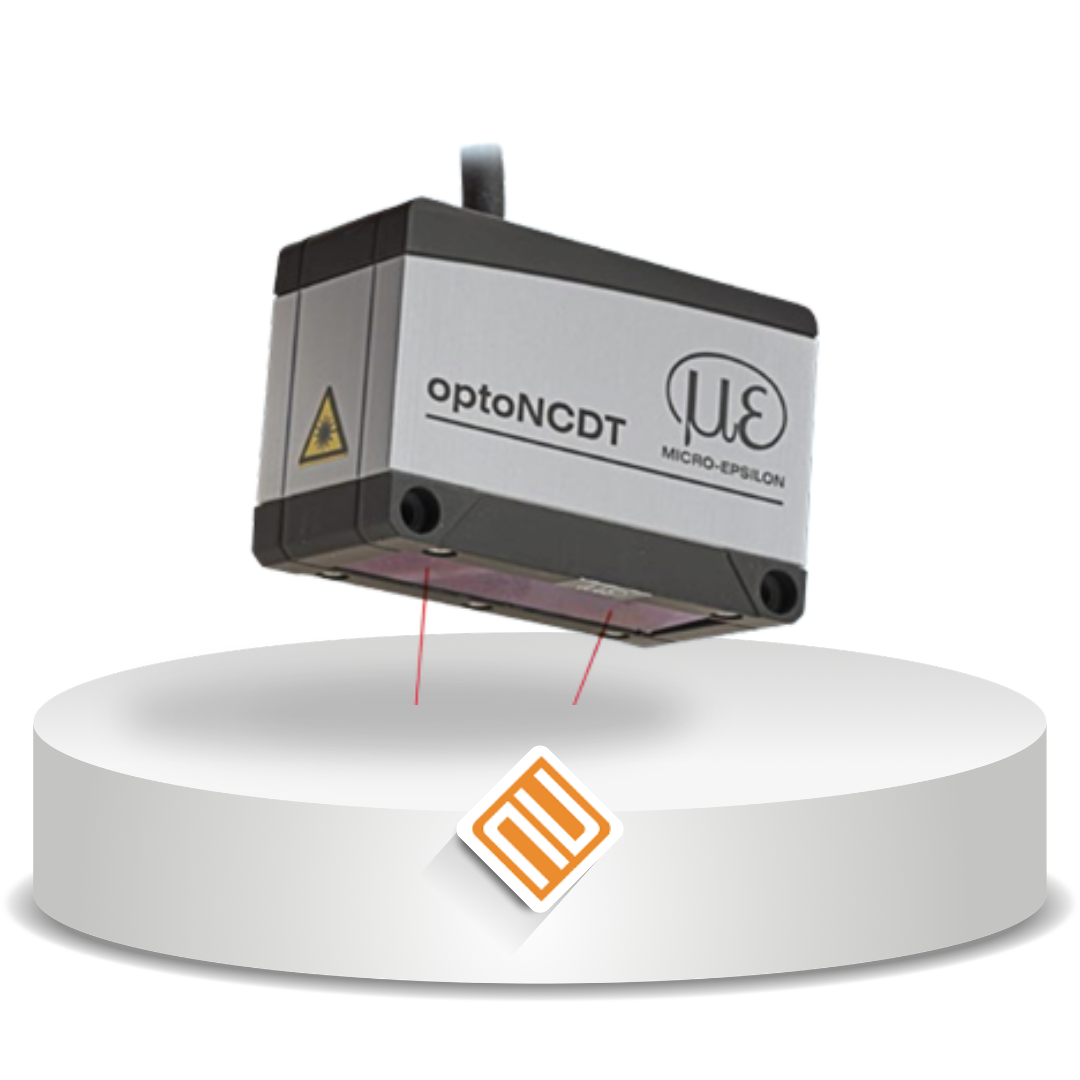

Seri optoNCDT 1900 merupakan sensor laser generasi terbaru yang dirancang untuk pengukuran displacement, jarak, dan posisi secara dinamis dengan akurasi tinggi. Sensor ini menggabungkan performa tinggi, desain kompak, serta kemudahan integrasi, sehingga cocok digunakan pada aplikasi industri modern seperti otomasi canggih, produksi otomotif, 3D printing, dan mesin pengukuran koordinat.
| Model | ILD1900-xx with integrated Industrial Ethernet interface |
| Measuring rate | 7 adjustable stages: 10 kHz / 8 kHz / 4 kHz / 2 kHz / 1 kHz / 500 Hz / 250 Hz |
| Temperature stability | ±0.005 % FSO / K |
| Light source | Semiconductor laser ≤ 1 mW, 670 nm (red) with laser class 2 |
| Laser class | Class 2 in accordance with IEC 60825-1:2014 (Class 3 available on request) |
| Supply voltage | 11 … 30 VDC or PoE |
| Power consumption | < 3 W (24 V) |
| Signal input | 1 x HTL/TTL Laser on/off |
| Digital interface | EtherCAT / EtherNet/IP / PROFINET |
| Connection | Integrated pigtail 0.3 m with 12-pin M12 plug; optional extension to 3 m / 6 m / 9 m |
| Temperature range (Storage) | -20 … +70 °C (non-condensing) |
| Temperature range (Operation) | 0 … +50 °C (non-condensing) |
| Shock (DIN EN 60068-2-27) | 15 g / 6 ms in 3 axes |
| Vibration (DIN EN 60068-2-6) | 30 g / 20 … 500 Hz |
| Protection class (DIN EN 60529) | IP67 |
| Material | Aluminum housing |
| Weight | Approx. 185 g (incl. pigtail) |
| Control and indicator elements | Select key: factory settings, switching the operation mode; web interface for setup: application-specific presets, peak selection, video signal, freely selectable averaging possibilities, data reduction, setup management; 1 x color LED for power/status; 2 x color LEDs for fieldbus status |
