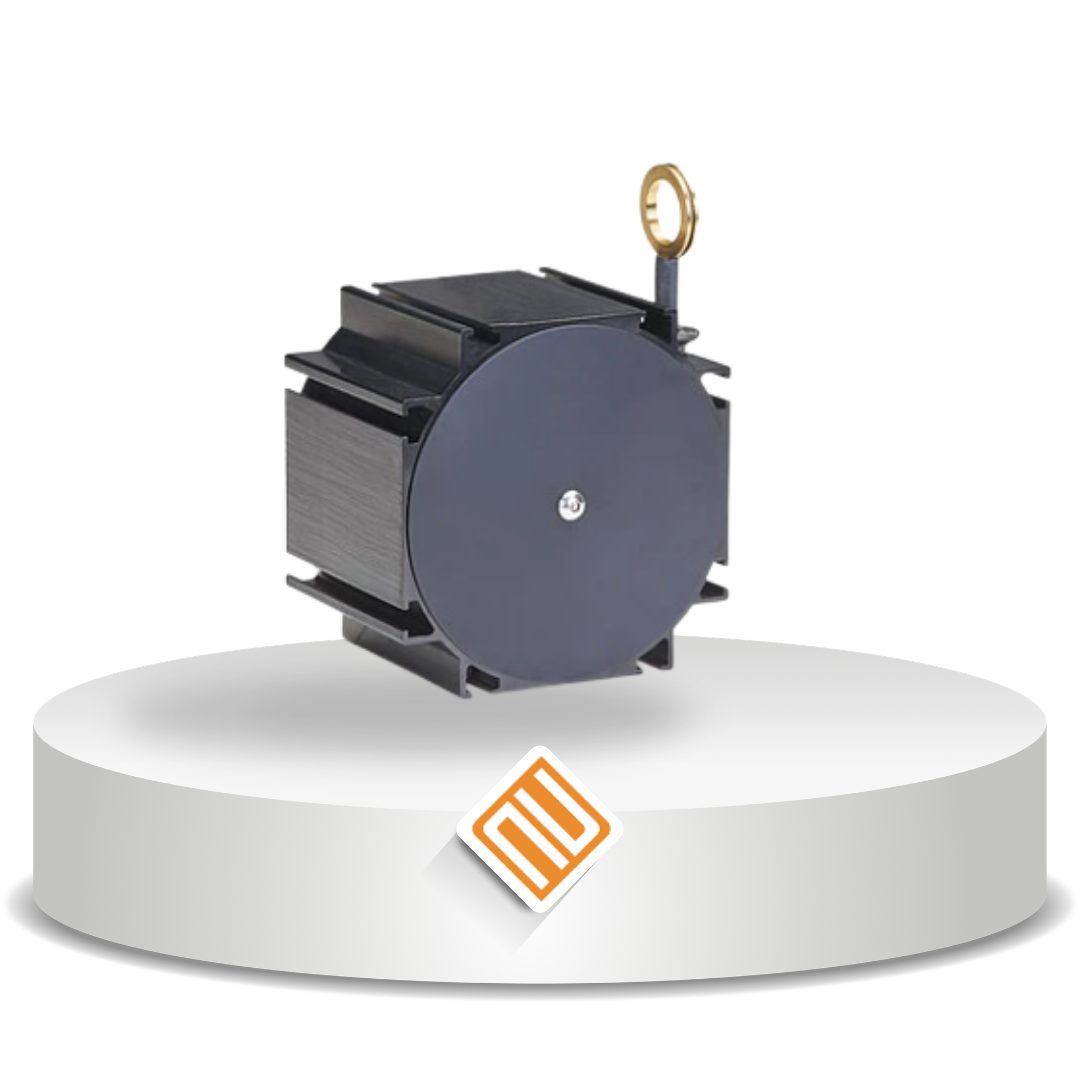

WireSENSOR P115 Digital merupakan sensor draw-wire digital industri dengan housing aluminium robust yang dirancang untuk pengukuran posisi linear jarak panjang secara presisi tinggi. Sensor ini mendukung incremental maupun absolute encoder serta berbagai interface industri modern untuk integrasi fleksibel pada sistem otomasi dan kontrol industri.
| Model | WDS-5000-P115 | WDS-7500-P115 | WDS-10000-P115 | WDS-15000-P115 |
|---|---|---|---|---|
| Measuring range | 5000 mm | 7500 mm | 10000 mm | 15000 mm |
| Digital interface 1) | PROFINET, Profibus DP, CANopen, EtherNet/IP, EtherCAT | |||
| Digital output 1) | HTL, TTL, SSI | |||
| Resolution HTL, TTL |
0.105 mm (9.52 pulses/mm) | |||
| SSI, PROFINET, Profibus DP, CANopen, EtherNet/IP, EtherCAT | 0.038 mm | |||
| Linearity ≤ ±0.01% FSO |
– | – | ≤ ±1 mm | ≤ ±1.5 mm |
| ≤ ±0.02% FSO | ≤ ±1 mm | ≤ ±1.5 mm | – | – |
| Sensor element | Incremental/absolute encoder | |||
| Wire extension force (max.) | approx. 16 N | approx. 24 N | approx. 21 N | approx. 25 N |
| Wire retraction force (min.) | approx. 4 N | approx. 8 N | approx. 8 N | approx. 8 N |
| Wire acceleration (max.) | approx. 5 g | approx. 6 g | approx. 3 g | approx. 3 g |
| Material Housing |
Aluminum | |||
| Measuring wire | Polyamide-coated stainless steel (ø 1 mm) | |||
| Wire mounting | Eyelet (ø 20.2 mm) | |||
| Installation | Mounting grooves on the sensor housing | |||
| Temperature range Storage |
-20 … +80 °C | |||
| Operation | -20 … +80 °C | |||
| Connection HTL, TTL |
integrated cable, radial, length 1 m | |||
| SSI | 12-pin flange connector, radial | |||
| PROFINET, Profibus DP, CANopen, EtherNet/IP, EtherCAT | Bus cover | |||
| Shock (DIN EN 60068-2-27) | 50 g / 10 ms in 3 axes, 1000 shocks each | |||
| Vibration (DIN EN 60068-2-6) | 20 g / 20 … 2000 Hz in 3 axes, 10 cycles each | |||
| Protection class (DIN EN 60529) | IP65 2) | |||
| Weight | approx. 2 kg | approx. 2.5 kg | approx. 3.5 kg | approx. 4.5 kg |
