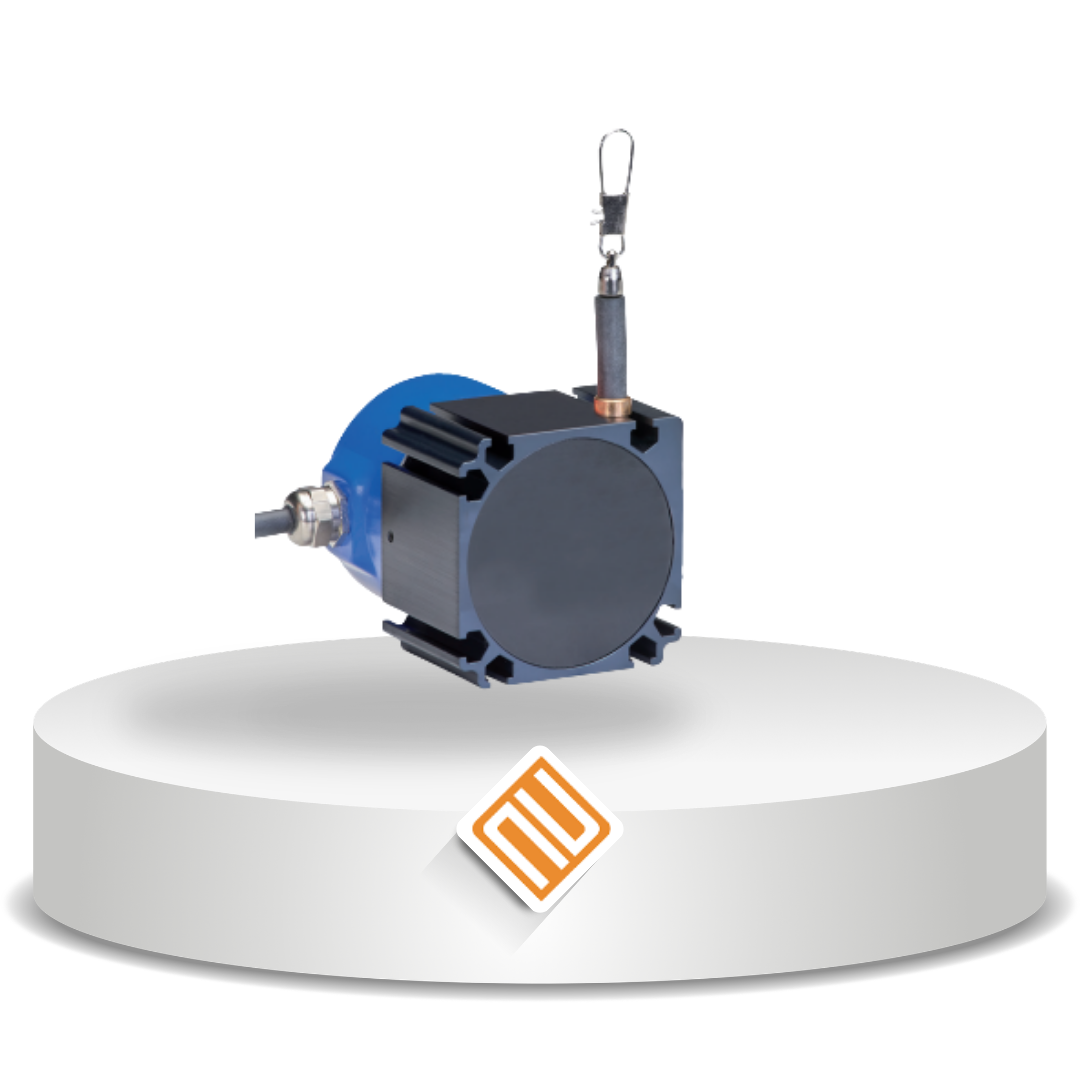

WireSENSOR P60 Digital merupakan sensor draw-wire digital dengan housing aluminium yang kokoh dan dirancang untuk aplikasi pengukuran posisi linear presisi tinggi di lingkungan industri. Sensor ini mendukung incremental maupun absolute encoder serta berbagai interface industri modern sehingga mudah diintegrasikan ke sistem otomasi dan kontrol industri.
| Model | WDS-1000-P60 | WDS-1500-P60 |
|---|---|---|
| Measuring range | 1000 mm | 1500 mm |
| Digital interface | PROFINET, Profibus DP, CANopen, EtherNet/IP, EtherCAT | |
| Digital output | HTL, TTL, SSI | |
| Resolution (HTL, TTL) | 0.067 mm (15 pulses/mm) | 0.1 mm (10 pulses/mm) |
| Resolution (SSI, PROFINET, Profibus DP, CANopen, EtherNet/IP, EtherCAT) | 0.012 mm | 0.018 mm |
| Linearity ≤ ±0.02% FSO | ≤ ±0.2 mm | ≤ ±0.3 mm |
| Sensor element | Incremental/absolute encoder | |
| Wire extension force (max.) | approx. 7.5 N | approx. 5.5 N |
| Wire retraction force (min.) | approx. 5 N | approx. 3.5 N |
| Wire acceleration (max.) | approx. 10 g | approx. 15 g |
| Housing Material | Aluminum | |
| Measuring wire | Polyamide-coated stainless steel (Ø 0.45 mm) | |
| Wire mounting | Wire clip | |
| Installation | Mounting grooves on the sensor housing | |
| Temperature range (Storage) | -20 … +80 °C | |
| Temperature range (Operation) | -20 … +80 °C | |
| Connection (HTL, TTL) | integrated cable, radial, length 1 m | |
| Connection (SSI) | 12-pin flange connector, radial | |
| Connection (PROFINET, Profibus DP, CANopen, EtherNet/IP, EtherCAT) | Bus cover | |
| Shock (DIN EN 60068-2-27) | 50 g / 10 ms in 3 axes, 1000 shocks each | |
| Vibration (DIN EN 60068-2-6) | 20 g / 10 … 2000 Hz in 3 axes, 10 cycles each | |
| Protection class (DIN EN 60529) | IP65 | |
| Weight | approx. 1 kg | |
