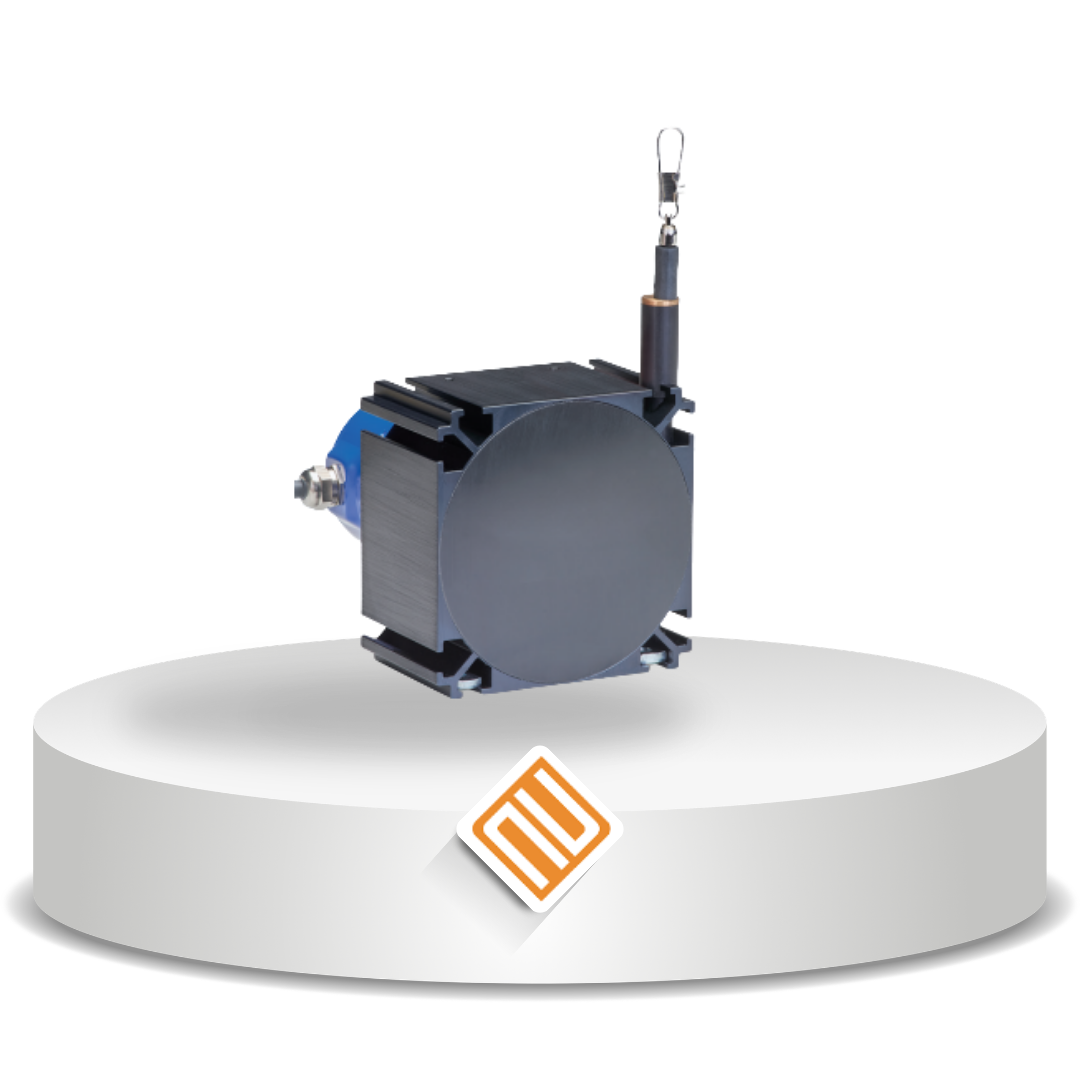

WireSENSOR P96 Digital merupakan sensor draw-wire digital berpresisi tinggi dengan housing aluminium yang kokoh untuk aplikasi industri dan otomasi modern. Sensor ini mendukung incremental maupun absolute encoder serta berbagai interface industri sehingga dapat diintegrasikan dengan mudah ke sistem kontrol dan monitoring posisi linear.
| Model | WDS-3000-P96 |
|---|---|
| Measuring range | 3000 mm |
| Digital interface | PROFINET, Profibus DP, CANopen, EtherNet/IP, EtherCAT |
| Digital output | HTL, TTL, SSI |
| Resolution (HTL, TTL) | 0.087 mm (11.53 pulses/mm) |
| Resolution (SSI, PROFINET, Profibus DP, CANopen, EtherNet/IP, EtherCAT) | 0.032 mm |
| Linearity ≤ ±0.02% FSO | ≤ ±0.6 mm |
| Sensor element | Incremental/absolute encoder |
| Wire extension force (max.) | approx. 9 N |
| Wire retraction force (min.) | approx. 5.5 N |
| Wire acceleration (max.) | approx. 7 g |
| Housing Material | Aluminum |
| Measuring wire | Polyamide-coated stainless steel (Ø 0.8 mm) |
| Wire mounting | Wire clip |
| Installation | Mounting grooves on the sensor housing |
| Temperature range (Storage) | -20 … +80 °C |
| Temperature range (Operation) | -20 … +80 °C |
| Connection (HTL, TTL) | integrated cable, radial, length 1 m |
| Connection (SSI) | 12-pin flange connector, radial |
| Connection (PROFINET, Profibus DP, CANopen, EtherNet/IP, EtherCAT) | Bus cover |
| Shock (DIN EN 60068-2-27) | 50 g / 10 ms in 3 axes, 1000 shocks each |
| Vibration (DIN EN 60068-2-6) | 20 g / 20 … 2000 Hz in 3 axes, 10 cycles each |
| Protection class (DIN EN 60529) | IP65 |
| Weight | approx. 1.7 kg |
